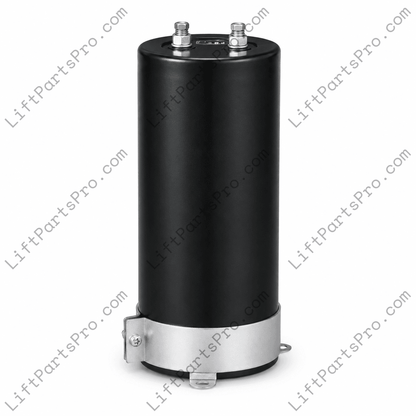

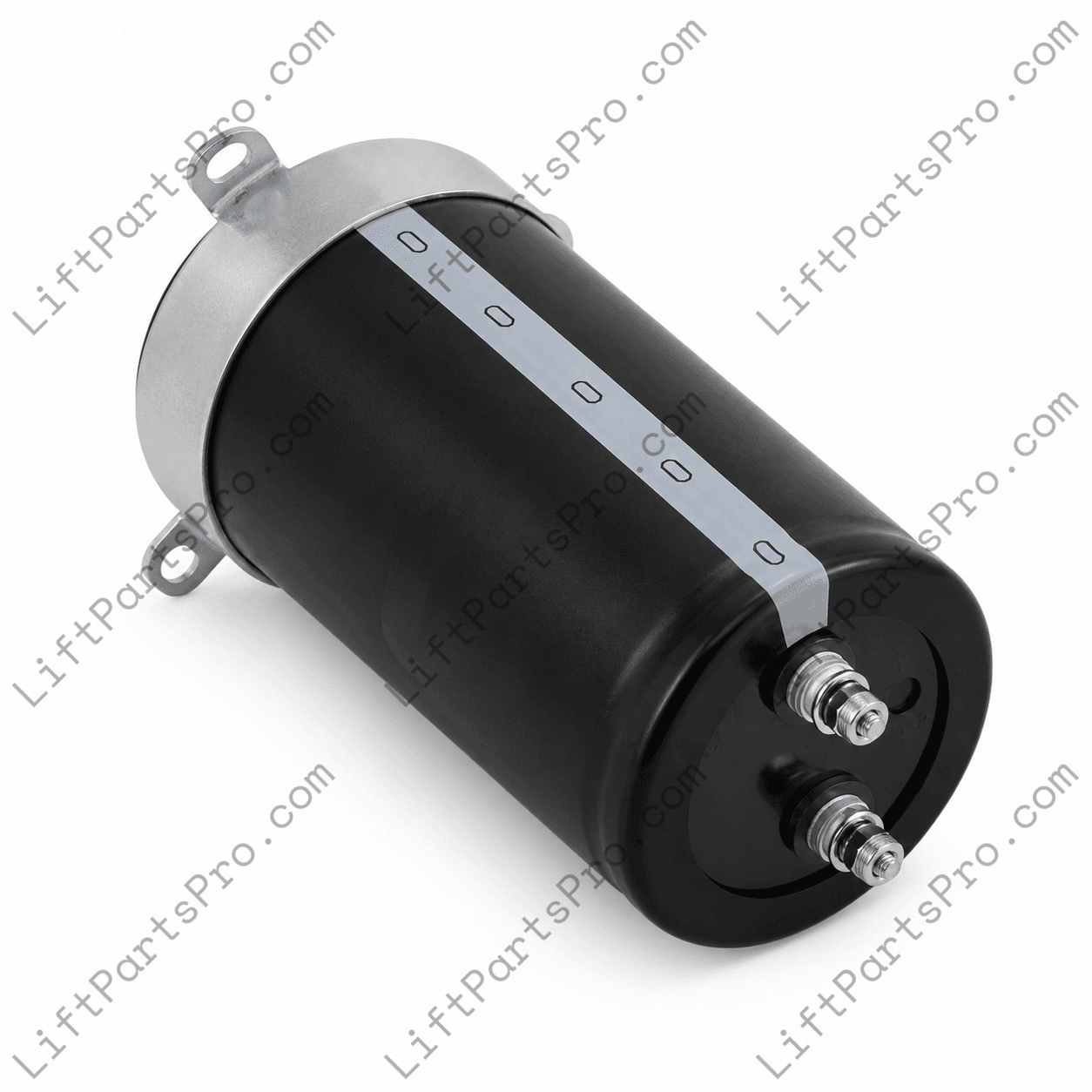

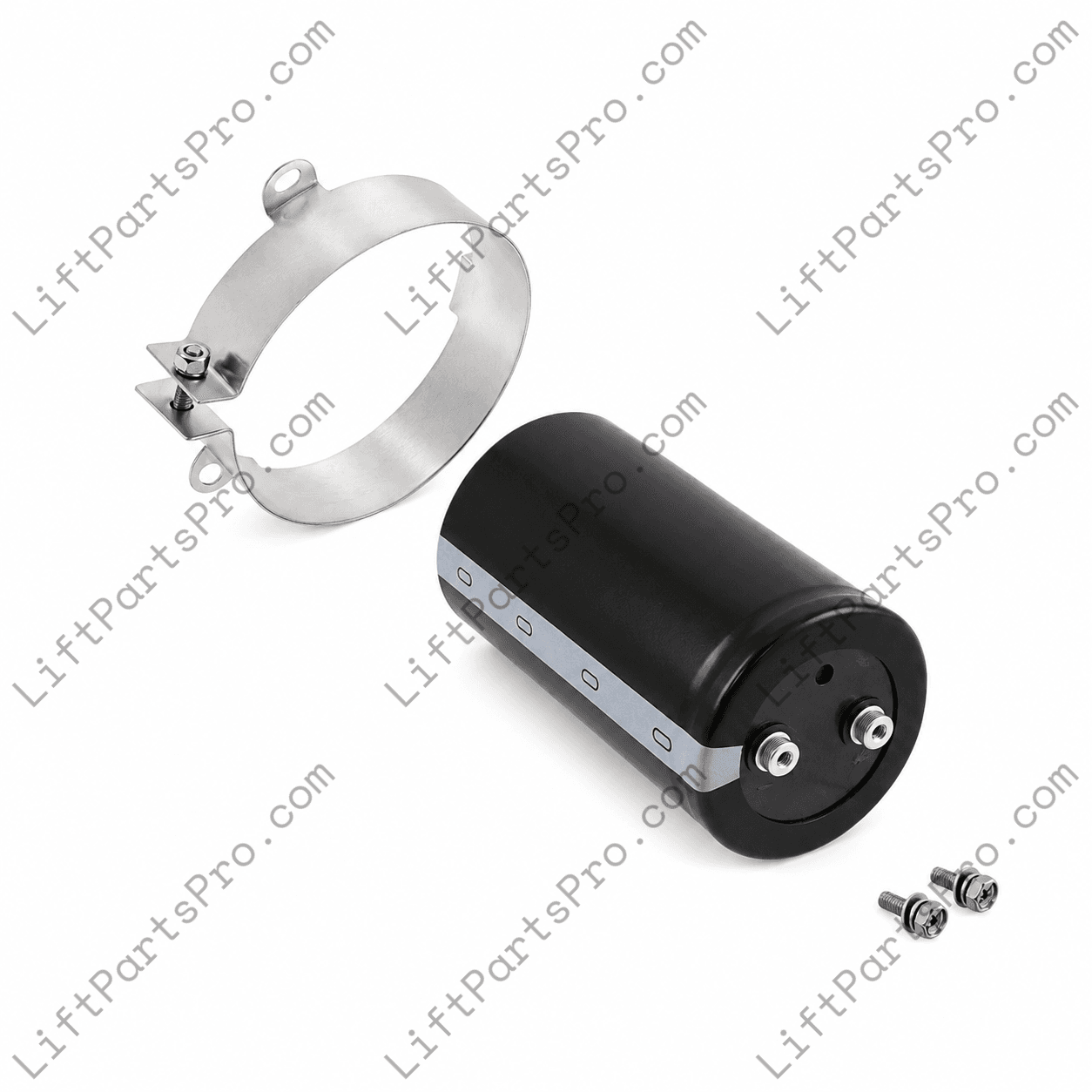

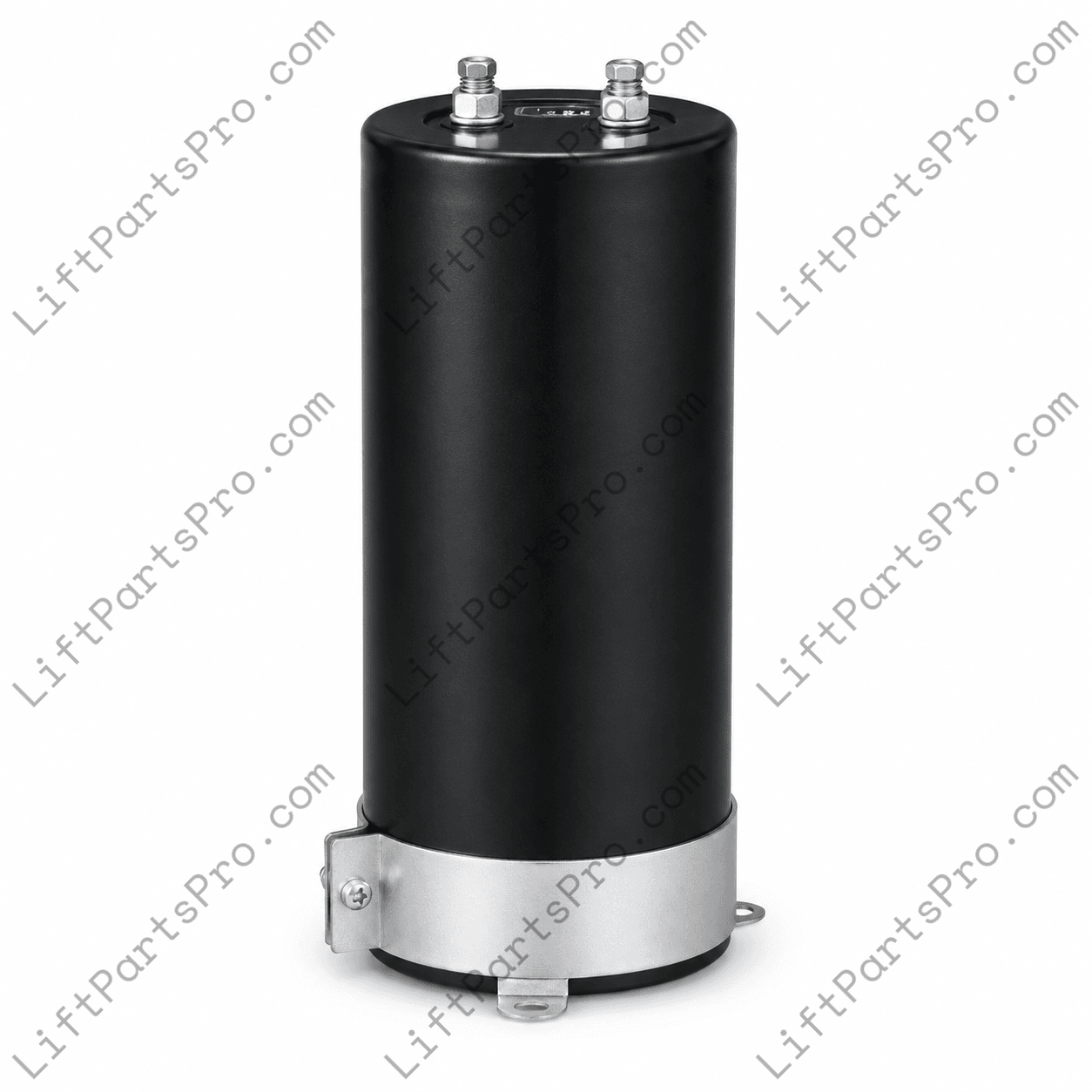

Otis OVF460 Skyway Drive Capacitor MN08-822I 8200µF 400V
Otis OVF460 Skyway Drive Capacitor MN08-822I 8200µF 400V
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: CPC.OTIS.8200
Condition: New
Couldn't load pickup availability
Designed for use in Otis static converter AC drive assemblies, this aluminum electrolytic capacitor serves as a replacement for components identified by the legacy part number MN08-822I. It is commonly found in Otis OVF460 and Skyway drive systems, where it functions within the DC bus energy storage and filtering circuit. This capacitor is frequently used alongside the companion MN97-822I capacitor and associated phase and line resistor assemblies as part of the drive's power electronics.
Manufactured with screw-terminal construction for secure installation in demanding industrial environments, this capacitor provides the capacitance and voltage characteristics required for high-voltage elevator drive applications while maintaining reliable electrical performance.
- Legacy part number: MN08-822I
- Capacitor type: Aluminum electrolytic
- Capacitance: 8200µF
- Rated voltage: 400 VDC
- Capacitance tolerance: ±20%
- Terminal style: Screw terminal
- Mounting style: Chassis mount
- Operating temperature range: -40°C to +85°C
- Diameter: 76.2 mm
- Height: 150 mm
- Terminal spacing: 31.8 mm
- RoHS compliant
For reliable system performance, electrical components should always be installed as part of appropriate maintenance procedures by qualified personnel. Proper inspection and installation help ensure continued operation and compatibility with the intended equipment.
