National Wheel-O-Vator VPL Magnetic Reed Sensor Switch

Recessed proximity door sensor set with 12" leads and press-fit installation for use in select NWOV platform lifts.

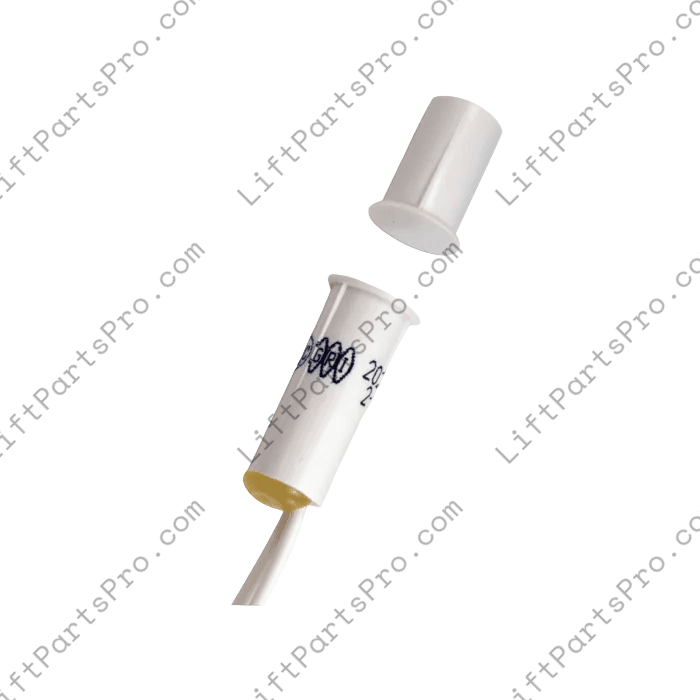

This recessed mag switch set is designed for press-fit installation in accessibility lifts and other control systems requiring reliable door position sensing.
Featuring a 3/8" diameter housing and a white thermoplastic case, it includes a normally open reed switch with plated contacts to resist sticking or freezing.
This set supports a wide gap of over 1" and includes 12" #22 AWG wire leads for straightforward electrical connection. Fully hermetically sealed, it is ideal for recessed mounting where tamper resistance and reliability are critical.

• Switch type: Recessed magnetic, normally open (N.O.)
• Loop configuration: Closed loop
• Gap distance: Wide gap (1"+)
• Wire leads: 12" #22 AWG
• Electrical rating: 10W, 200 VDC max, 0.4A max
• Initial contact resistance: 0.150 Ω
• Lead style: Pre-attached wires (screw terminals optional by request)
• Case material: Durable plastic, white

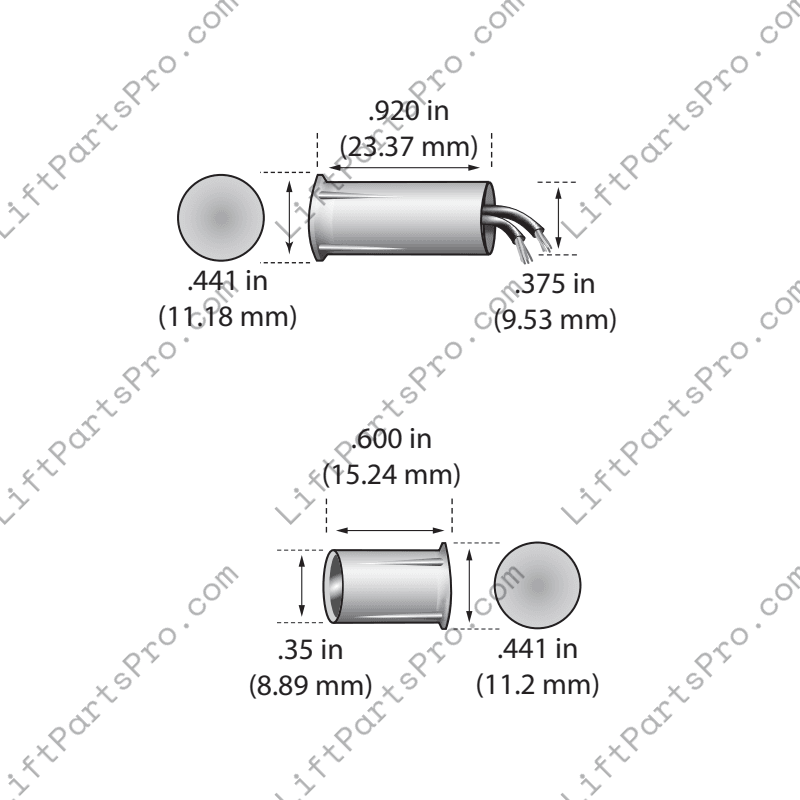

• Installation: Press-fit (3/8" diameter)
• Contact plating: Resists sticking/freezing
• Hermetically sealed; UL and ULC listed

This magnetic switch set should be installed and tested by qualified personnel to ensure proper function and code compliance. Always verify compatibility with your equipment's specifications before installation.
