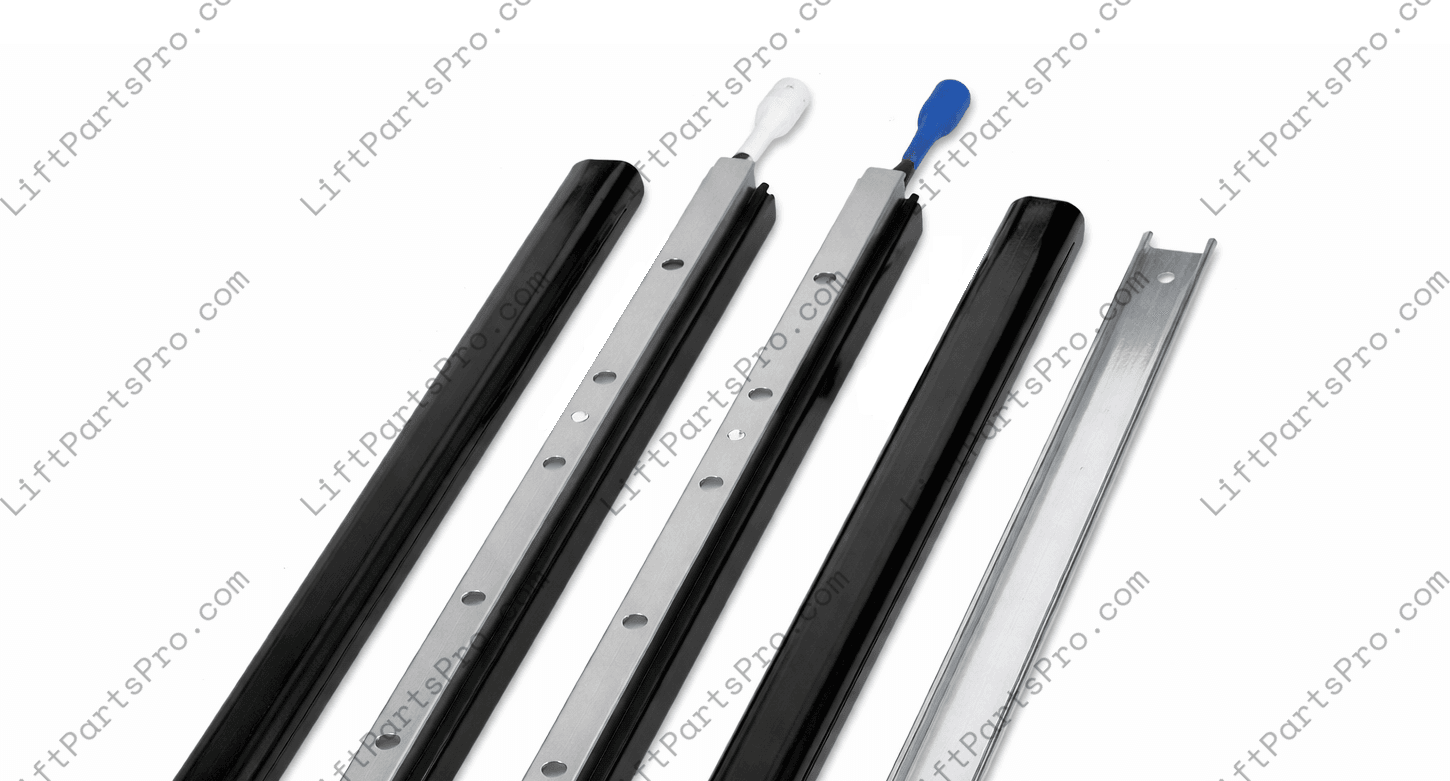

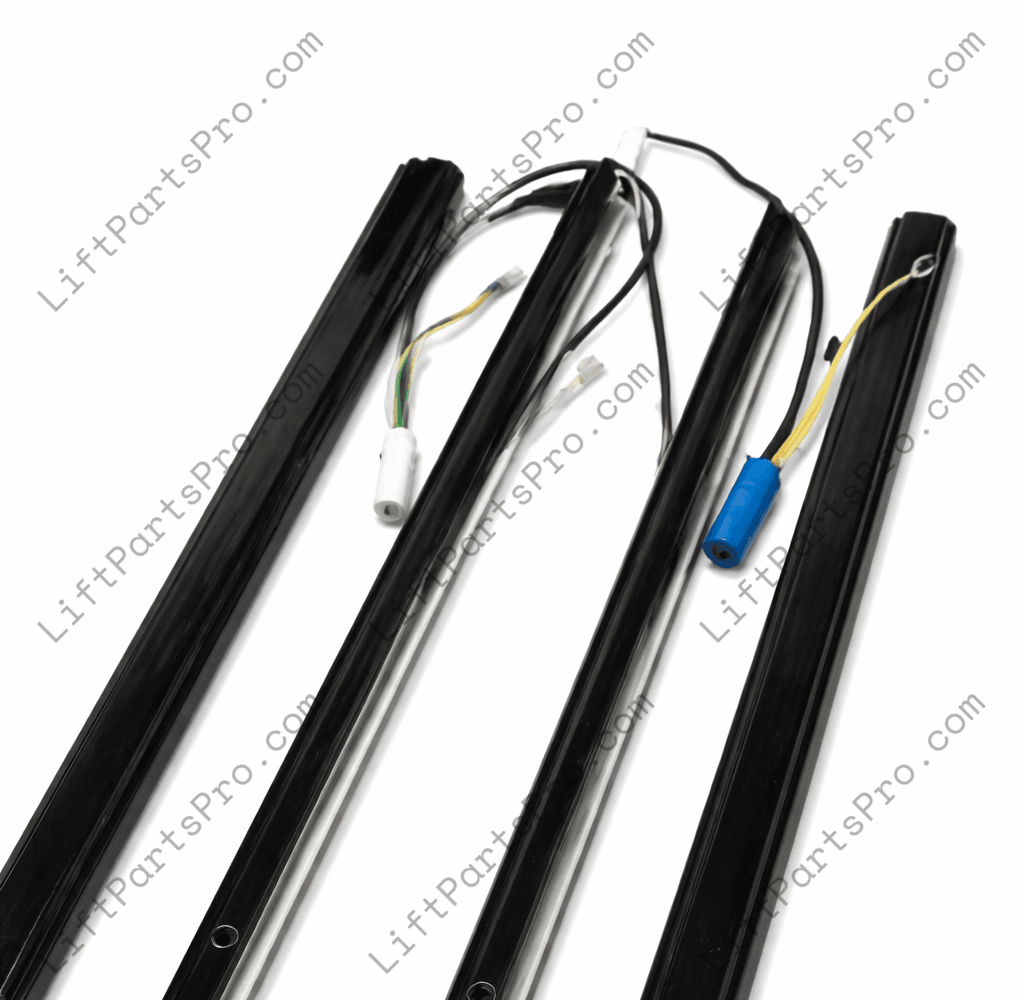

National Wheel-O-Vator LU/LA Elevator Door Light Curtain Set

Reliable 24V infrared light rays, suitable for replacing safety edges in select LU/LA elevators, including NWOV Evolution units that once used U1170, 2134103, or SAR-70 sensors.

Designed as a compact, modern replacement for legacy edge detection systems like U1170, 2134103, and SAR-70, this infrared safety edge unit delivers enhanced protection and easy installation for limited-use/limited-application (LU/LA) elevators.
Its compatibility with National Wheel-O-Vator (NWOV) Evolution EV12 units makes it a smart retrofit for aging systems, while its universal design suits various commercial LU/LA lifts requiring the same footprint and voltage.
This 79-beam configuration ensures dependable door obstruction detection using criss-crossed infrared technology; all without the need for external controllers.

• Supply voltage: 10–30VDC
• Output: VCC/GND, 0.2A push-pull (NO/NC selectable)
• Response time: 25–120ms
• Operating range: 0–3m (0–9.75 ft.)
• Protection height: 1800 mm (6 ft.)
• Dimensions: 12 mm x 16 mm x 1860 mm (0.5" x 0.6" x 6.1 ft.)
• Beam configuration: 79 criss-crossed infrared beams
• Ambient light resistance: >75,000 Lux
• Temperature range: -20°C to +65°C (-4°F to +149°F)
• Enclosure rating: IP65
• Cable: 5m (16 ft.) with round plug, rated for 20 million bending cycles

This light curtain features all electronics housed in the sensing edges, gold-plated contacts, and a plug-and-play wiring system for a simplified, controller-free installation process. Whether mounted to the door or jamb, it offers flexible placement and robust protection in elevator environments.

For safety-critical devices like infrared door detection systems, ensure installation is completed by qualified elevator professionals to maintain compliance and optimal performance.
