National Wheel-O-Vator Destiny 24 V 1.5 A Battery Charger

High‑reliability 24 V, 1.5 A switch‑mode charger compatible with NWOV legacy L1101, featuring standard 110 V plug and bare‑lead DC outputs.

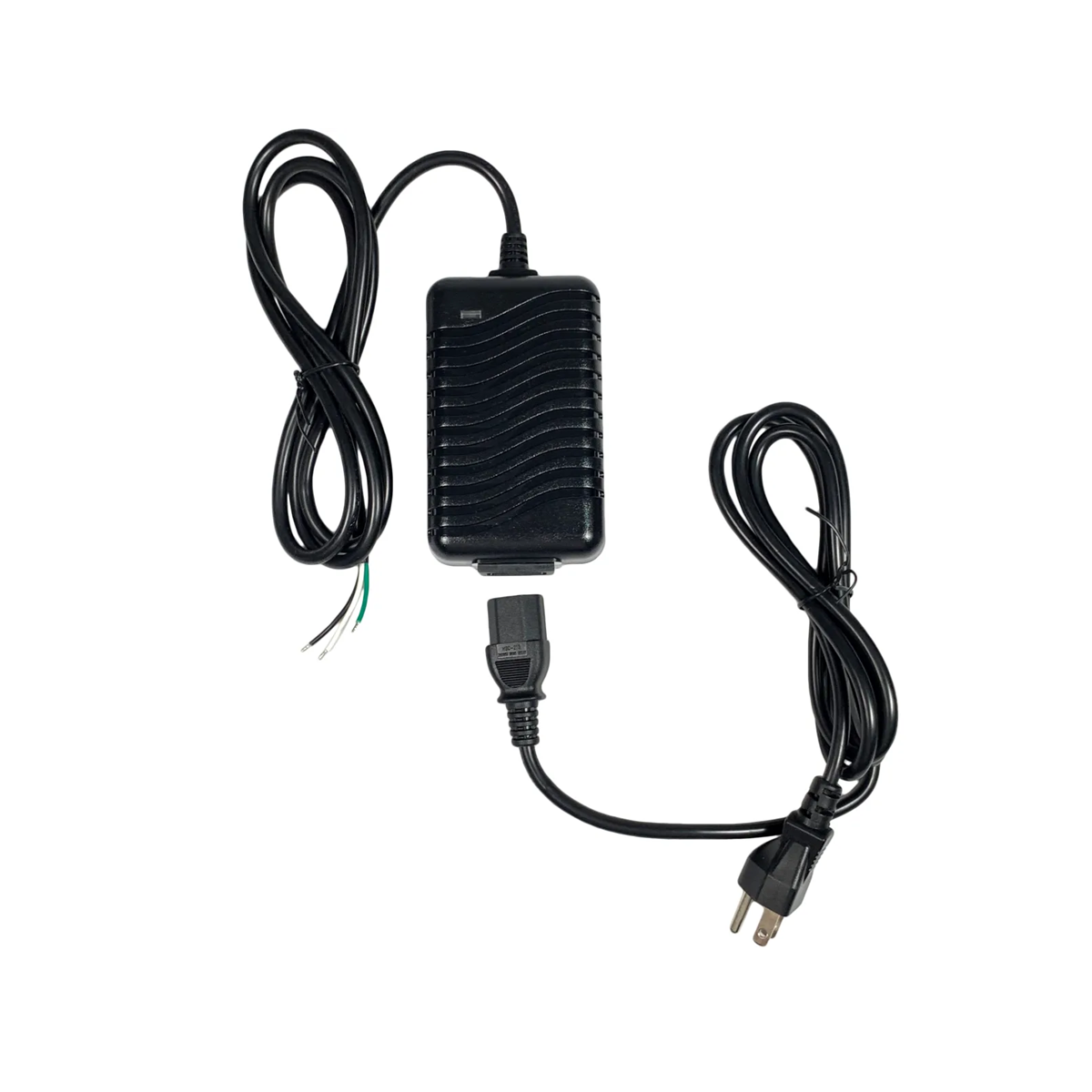

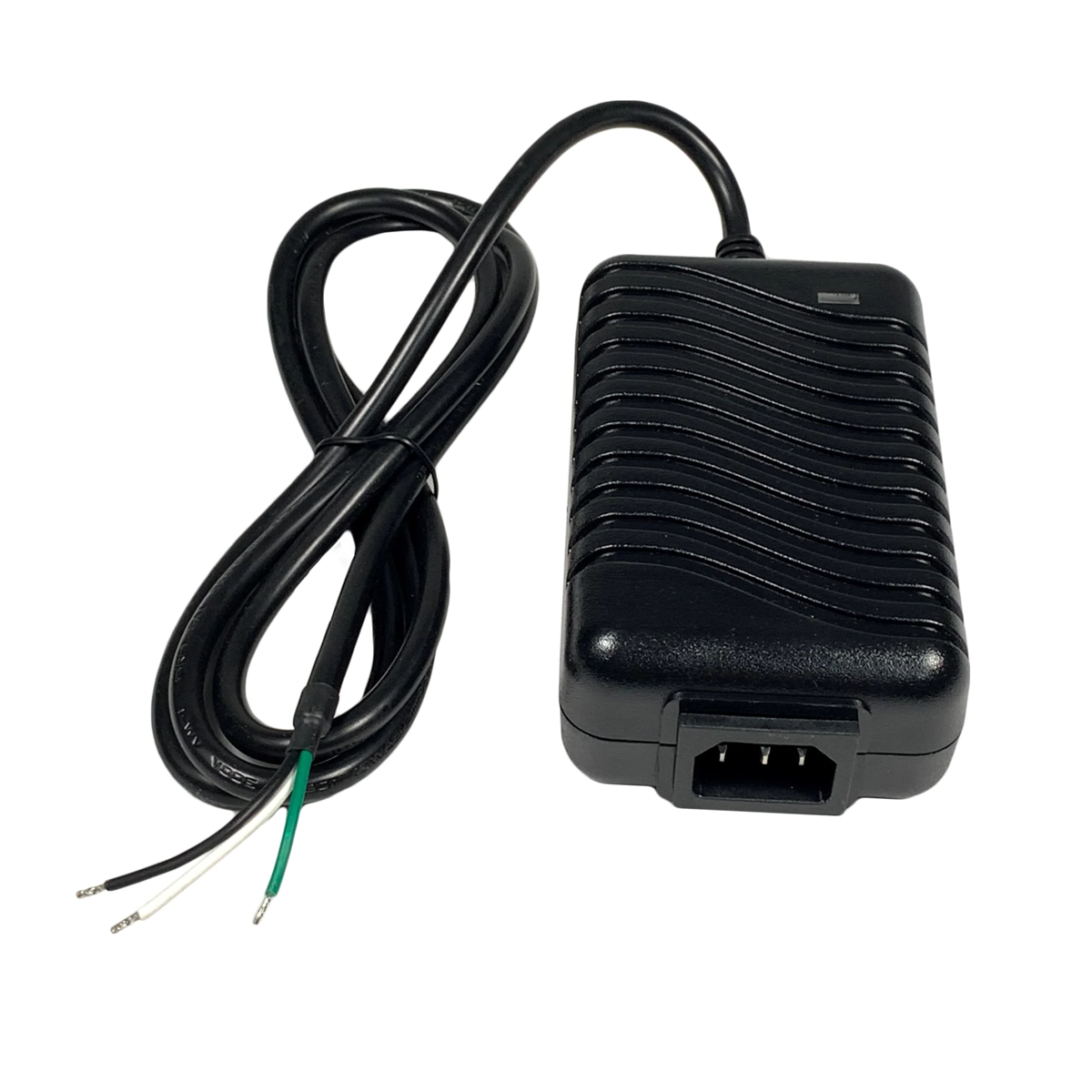

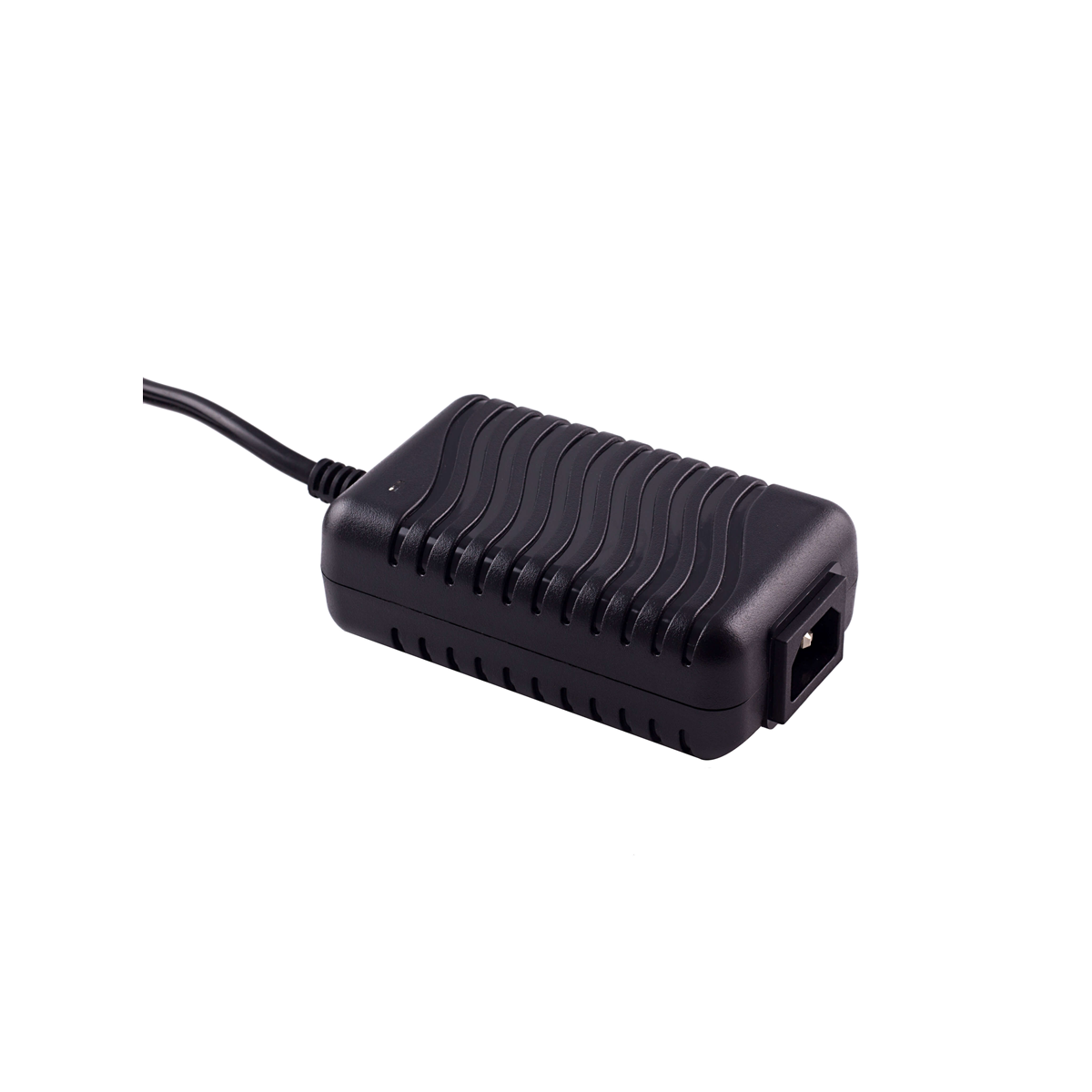

This power supply is designed as a direct replacement for NWOV’s legacy part L1101 found in Destiny / DW25 elevator battery systems. It provides a regulated 24 V output at up to 1.5 A in a compact, fully automatic switching configuration. The input side is fitted with a standard 110 V AC plug, while the DC side terminates in bare wire leads, simplifying installation into existing battery jack or harness wiring. The charger offers common protections including short circuit, reverse polarity, overvoltage, and is capable of being left connected indefinitely without damaging the battery.

Because of its four‑stage charge algorithm (desulfation → bulk → absorption → float), it can revive deeply discharged cells and provide safe float level maintenance.

Specifications

• Output: 24 V DC, maximum 1.5 A
• Input Voltage: 100–240 V AC universal range
• Dimensions: 120 mm × 70 mm × 41 mm
• Weight: ~0.8 lbs (0.36 kg)
• Protection features: short circuit, reverse polarity, overvoltage, overcurrent
• Charging stages: desulfation, constant current, absorption, float/maintenance
• Operating environment: suitable for continuous connection / float mode

This  charger offers a reliable and compact alternative to the NWOV L1101 for Destiny / DW25 elevator systems, delivering safe, regulated charging with full protection features. Installation by qualified personnel ensures continued performance and compliance with system reliability expectations.
