Micro Switch Replacement for Garaventa GSL VPLs

Micro switch with simulated roller fits select Garaventa lifts like certain GSL models, replacing legacy part #01223 for reliable lift control.

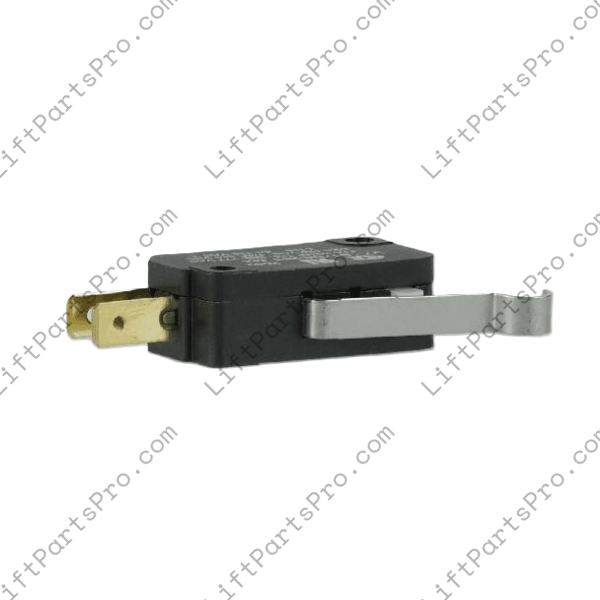

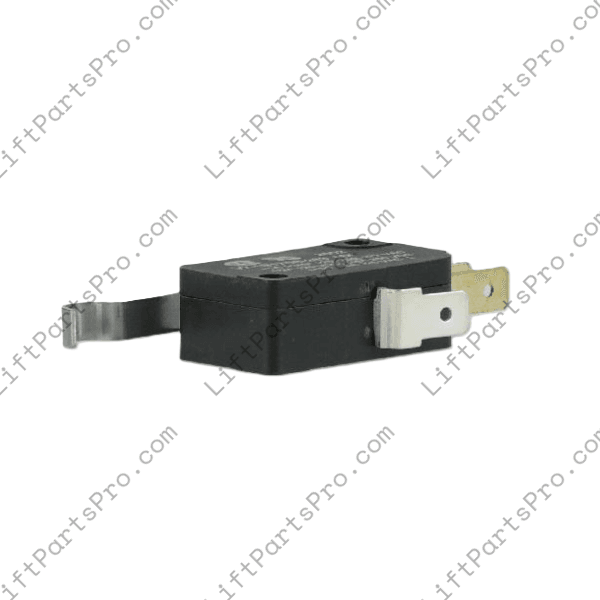

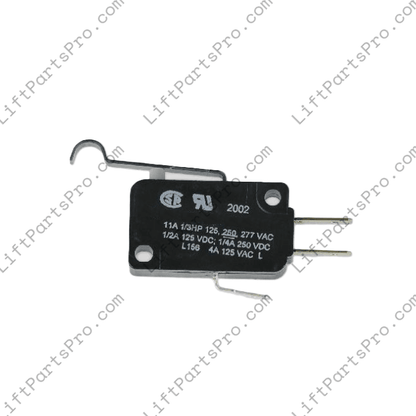

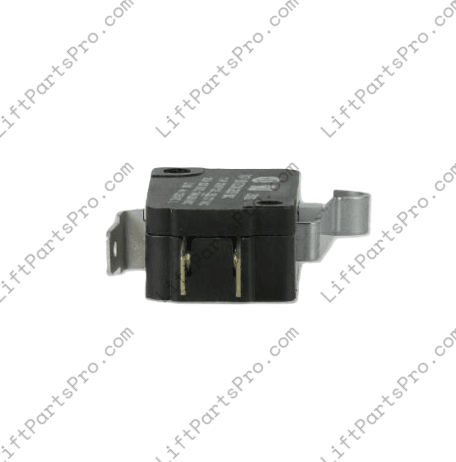

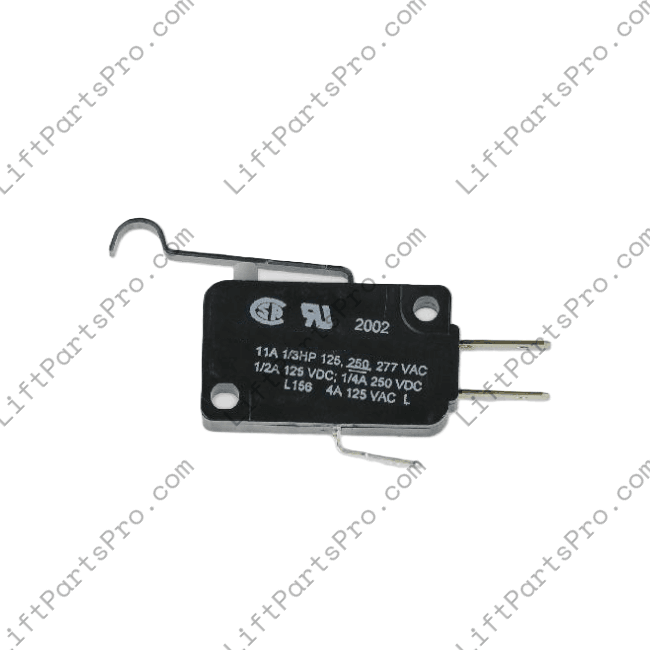

This micro switch with a bent arm lever is built to replace the original component used in certain Garaventa GSL vertical platform lifts.
It features a snap-action SPDT design ideal for lift control circuits, delivering precise and dependable actuation. The thermoplastic housing offers resistance to vibration and environmental wear, while the 0.187″ quick-connect terminals allow for straightforward replacement.
Compatible with legacy switch #01223, it supports reliable control and operational safety in platform lift systems.

• Series: Honeywell V7 miniature basic / snap‑action switch
• Contact Configuration: Single Pole Double Throw (SPDT)
• Actuator: Simulated roller lever (Bent Arm)
• Current Rating: Up to 11 A
• Voltage Rating: AC up to 277 VAC (also suitable for DC applications at lower voltages)
• Termination Style: Quick‑connect terminals (~0.187″)
• Operating Force: Approx. 90 gf maximum
• Mechanical Life: Up to 10 million cycles typical
• Electrical Life: ~100,000 cycles at rated load
• Operating Temperature Range: Typically –40 °C to ~85 °C
• Housing Material: Durable thermoplastic construction
• Mounting: Chassis or bracket mountable design

Always ensure installation and adjustments are performed by qualified technicians following industry safety standards; this listing is intended to describe the part’s characteristics and does not replace professional installation guidance.
