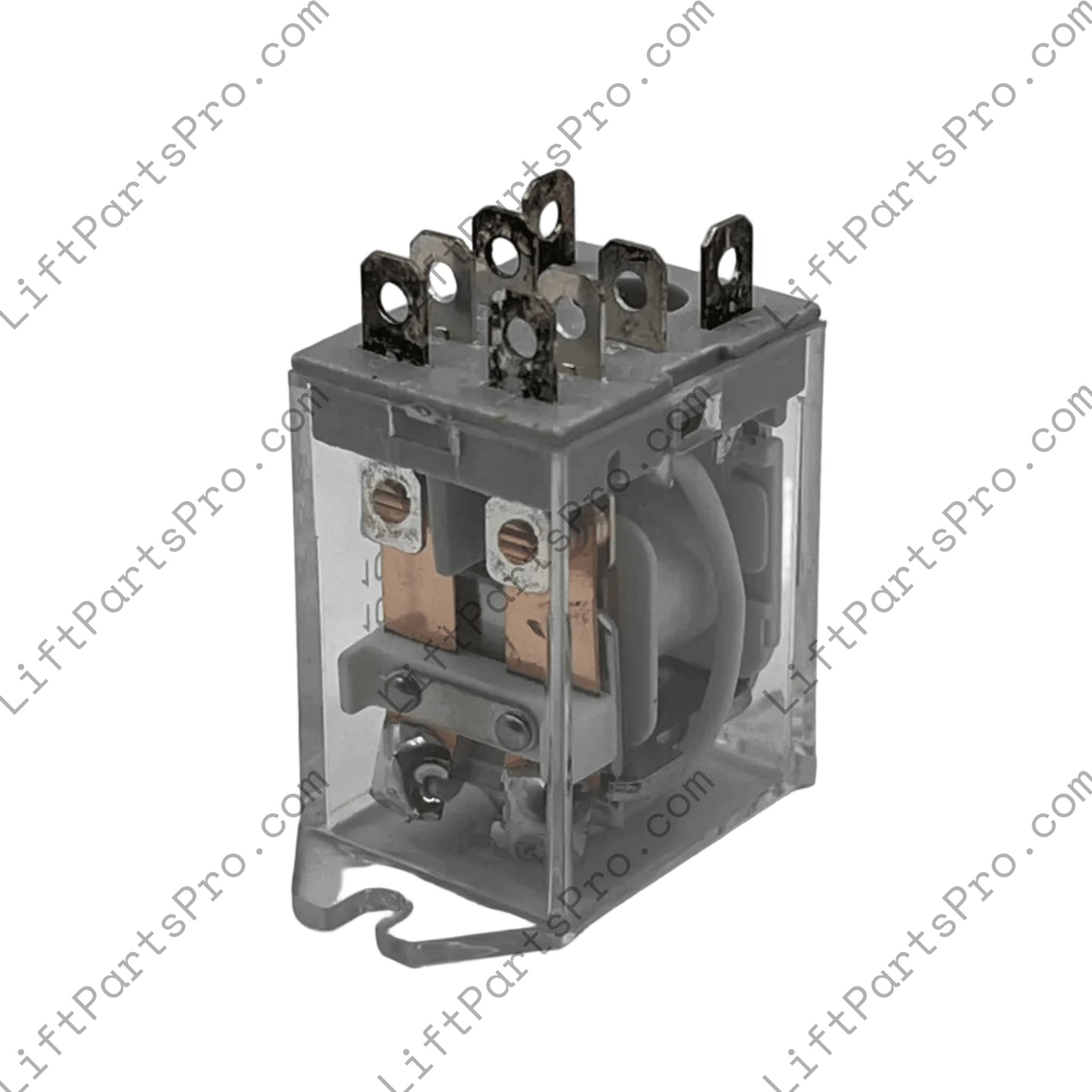

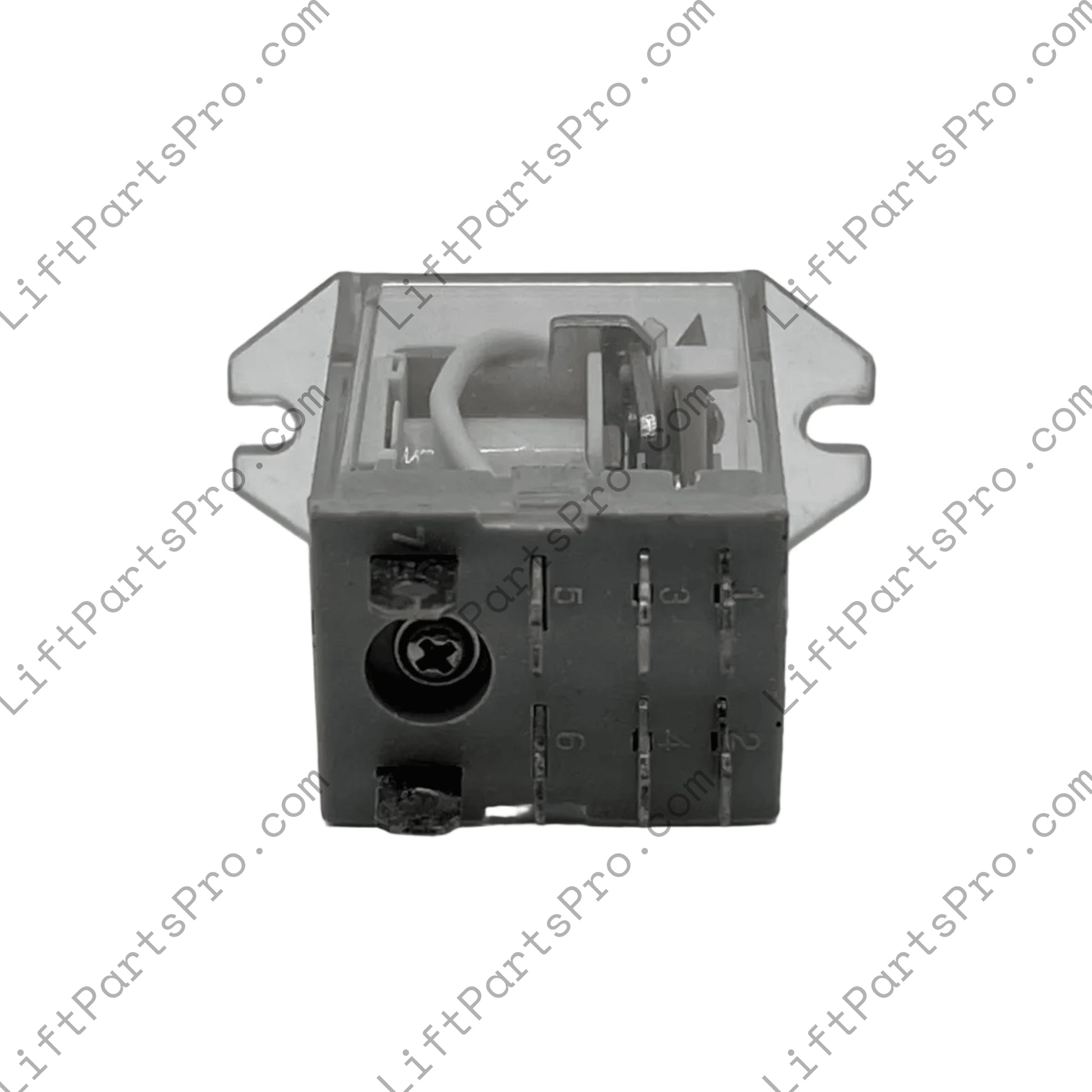

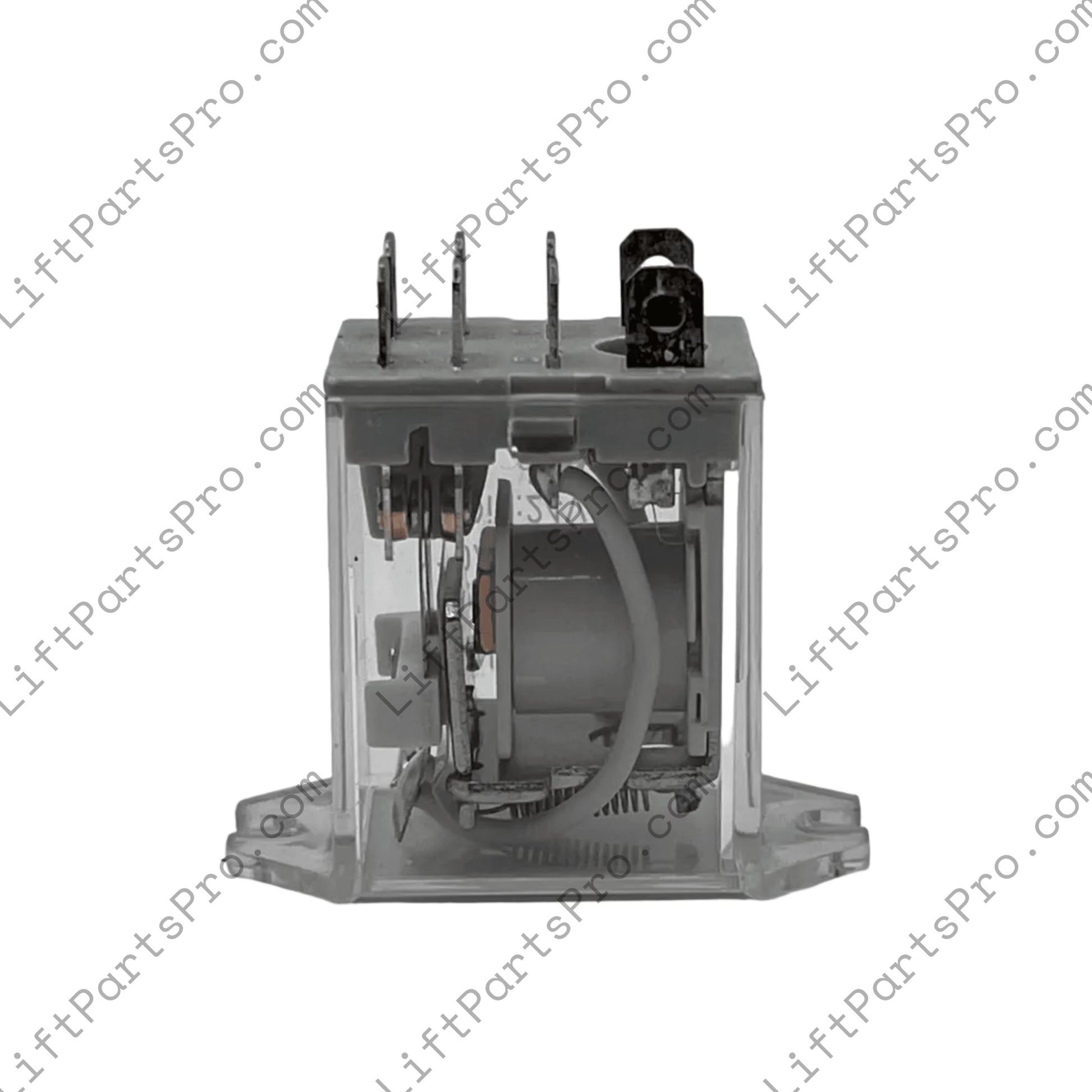

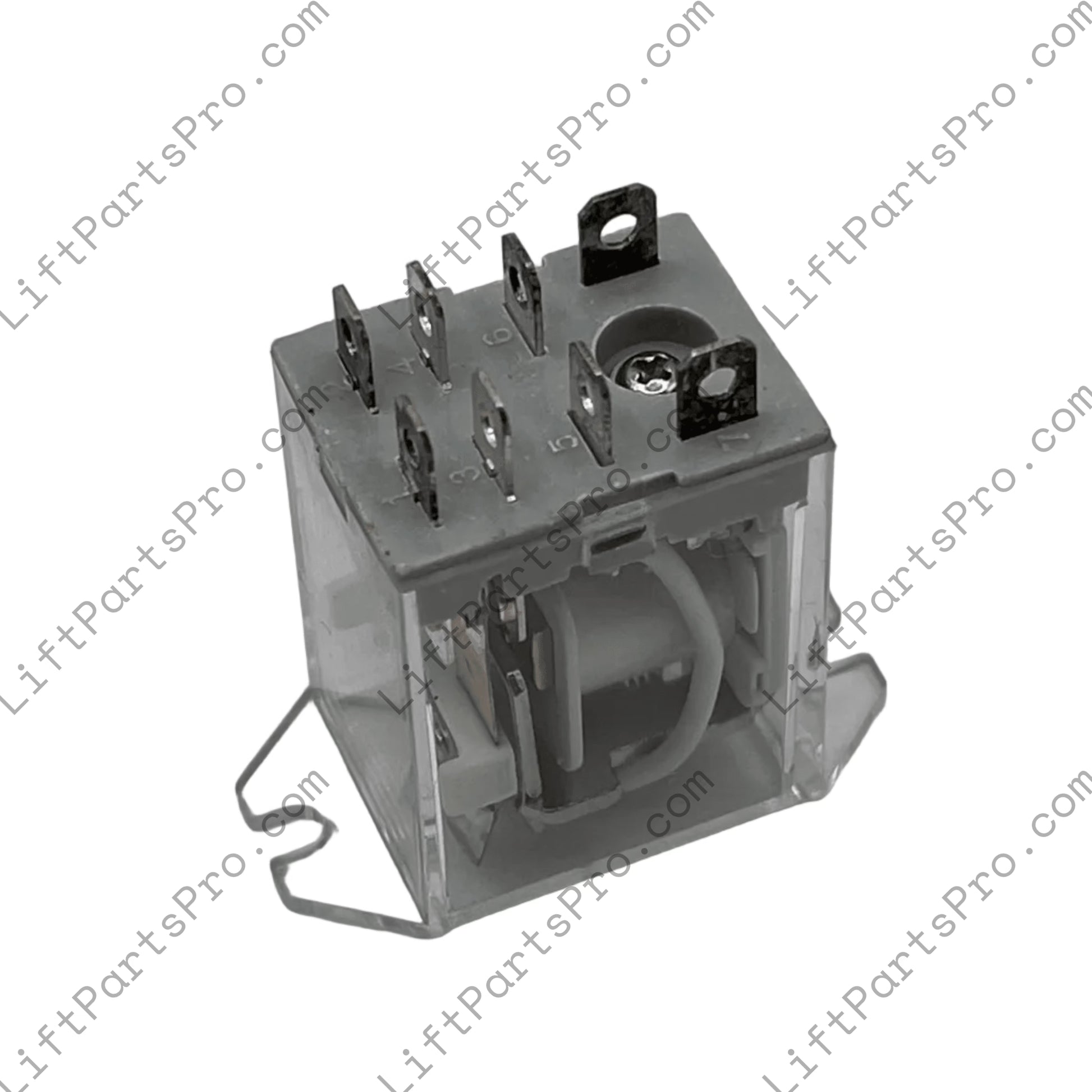

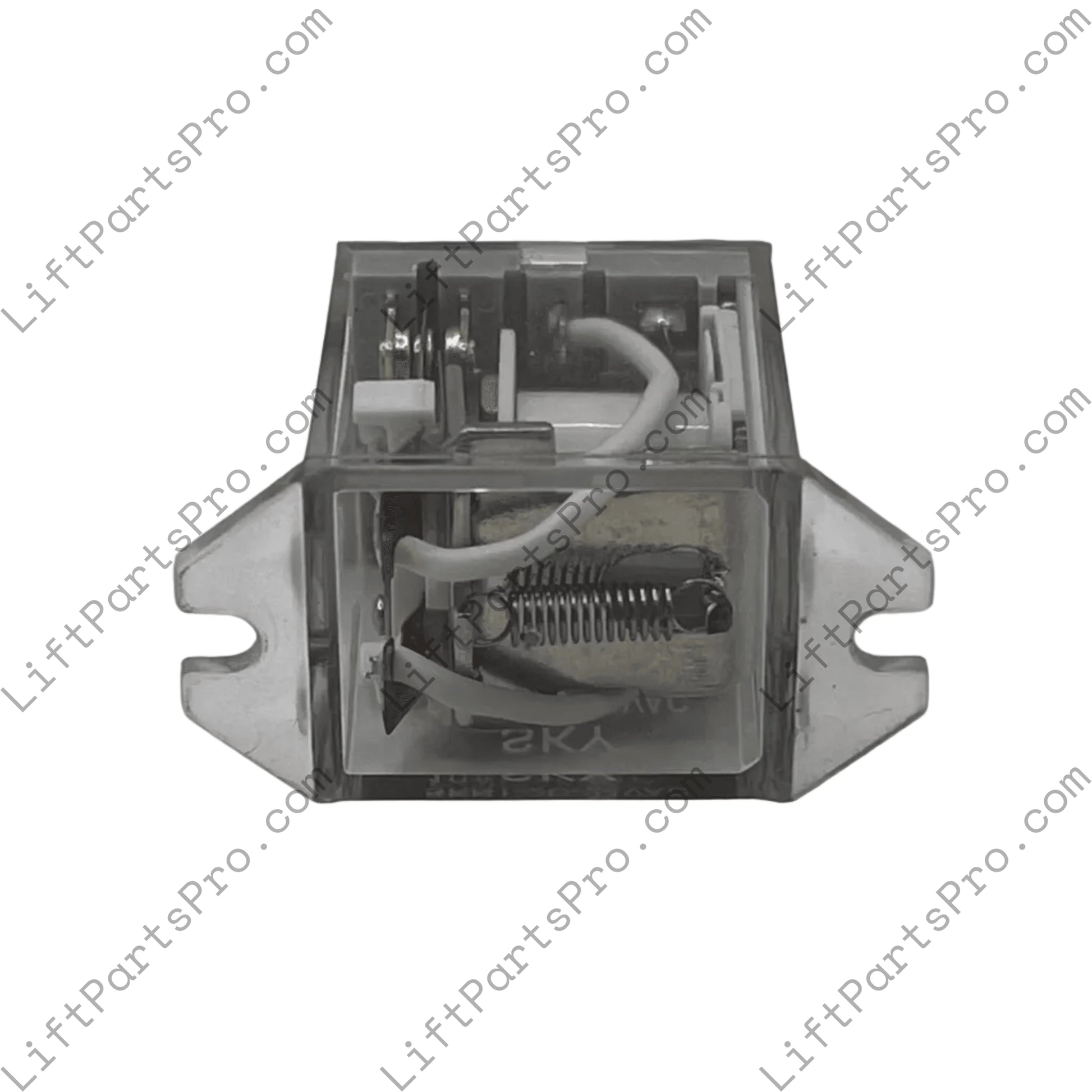

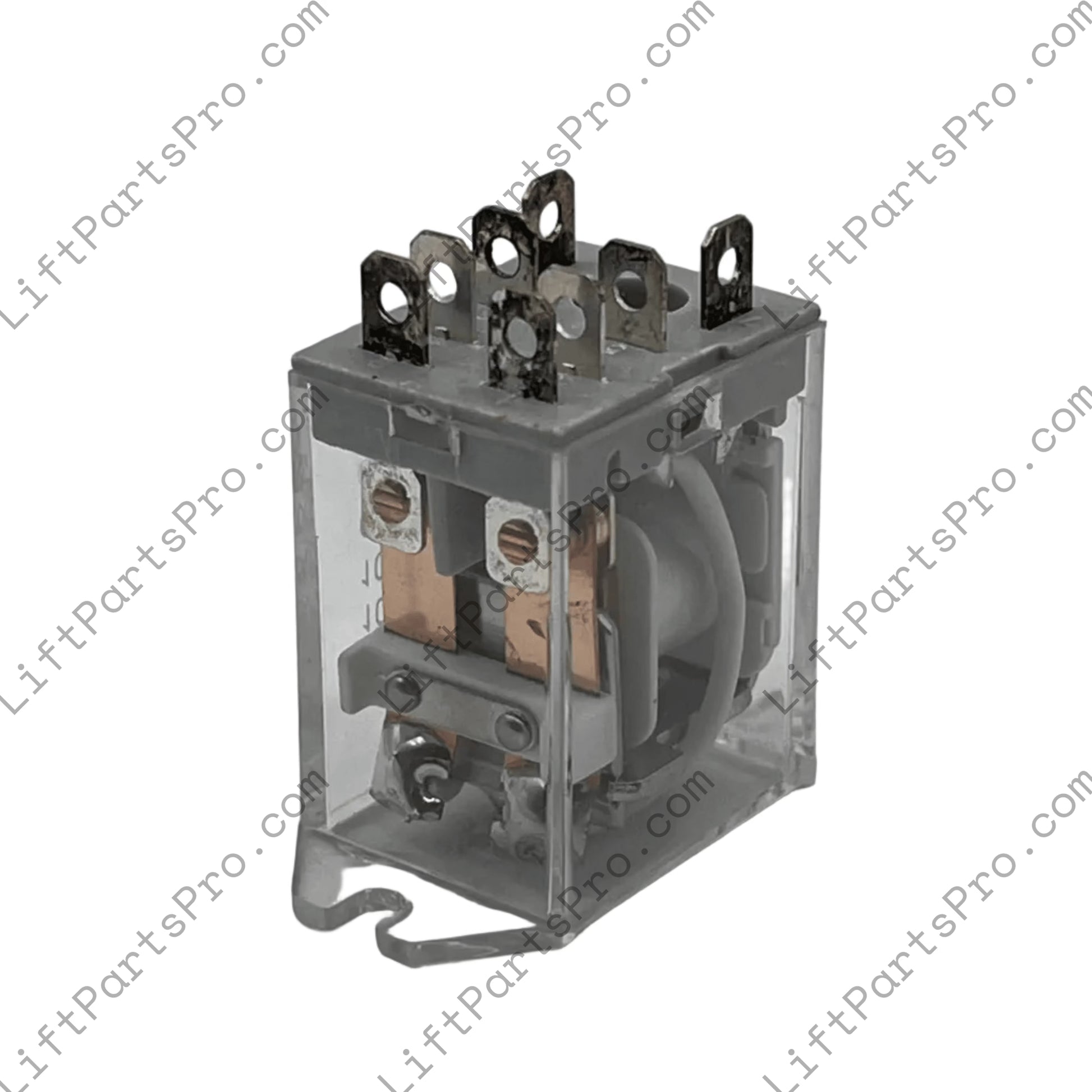

Compact 24V plug-in ice cube relay used in vertical platform lifts and widely applied as a gate relay in Porch Lift & Windsor systems. Replaces 33011 & 2434H1.
This industrial control relay is built for dependable switching in lift control circuits where stable, repeatable operation is essential, particularly door, gate, and lock systems.
Its DPDT contact configuration supports redundant or logic-controlled signaling, while the plug-in form factor allows straightforward integration into existing relay sockets commonly found in accessibility lift cabinets.
The clear housing with mechanical indicator and test button provides quick visual confirmation of relay state during inspection or system checks, making it a practical choice for service replacements and system refurbishments across multiple lift platforms.
- Coil voltage: 24V DC or AC
- Contact configuration: DPDT (double pole, double throw)
- Contact rating: 10 A
- Terminal style: 8-pin plug-in base
- Visual status indicator with manual test button
- Clear, impact-resistant housing
- Designed for control cabinet mounting
All replacement components should be installed and verified by qualified lift or mobility equipment professionals to ensure compatibility, proper operation, and continued compliance with applicable safety and performance standards.
