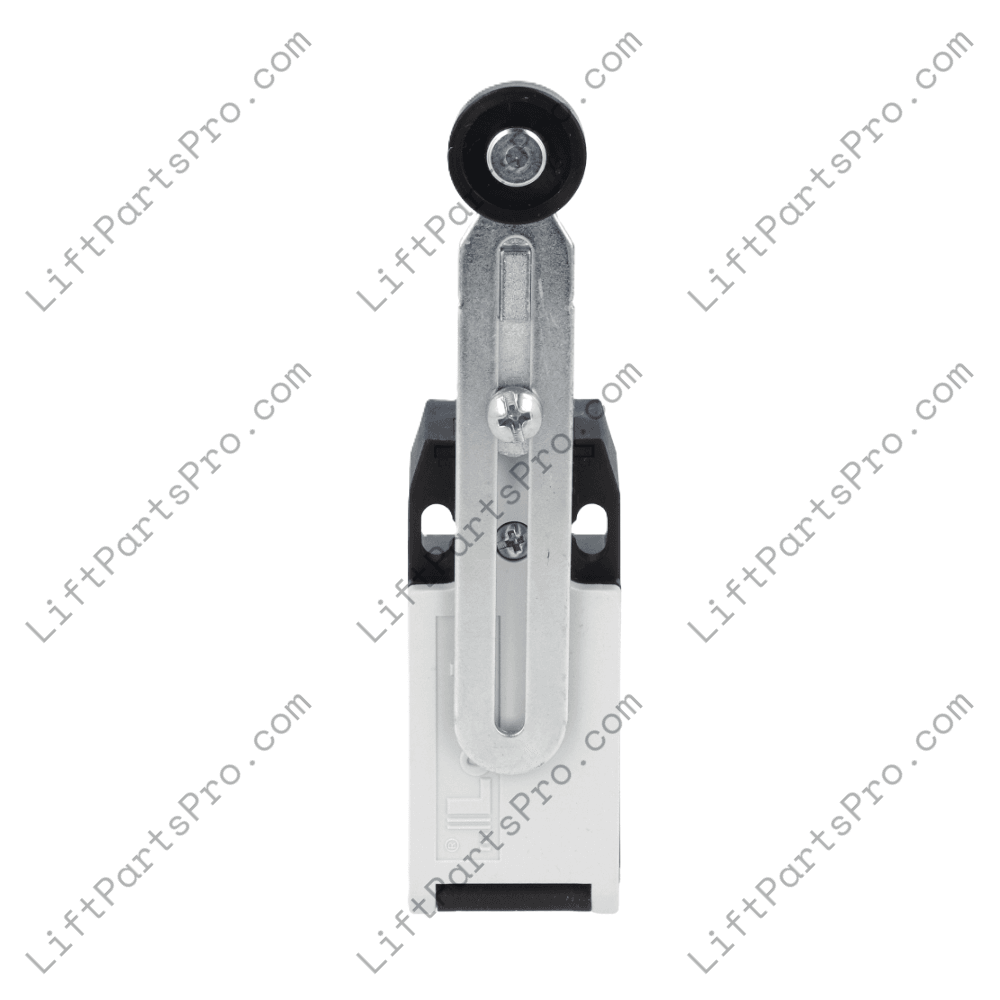

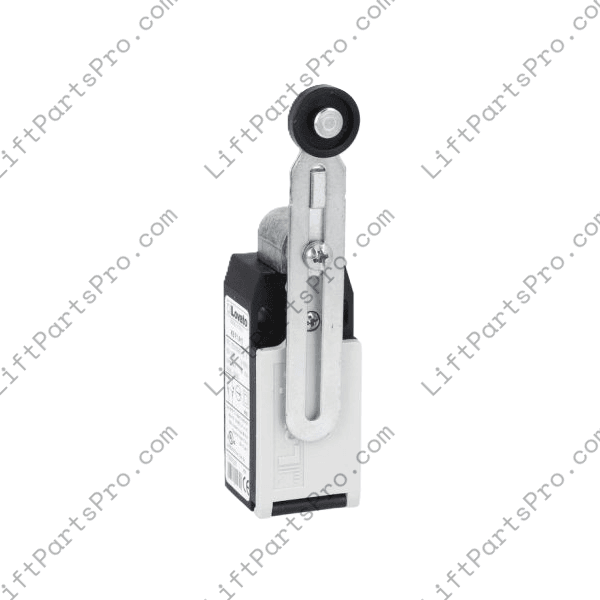

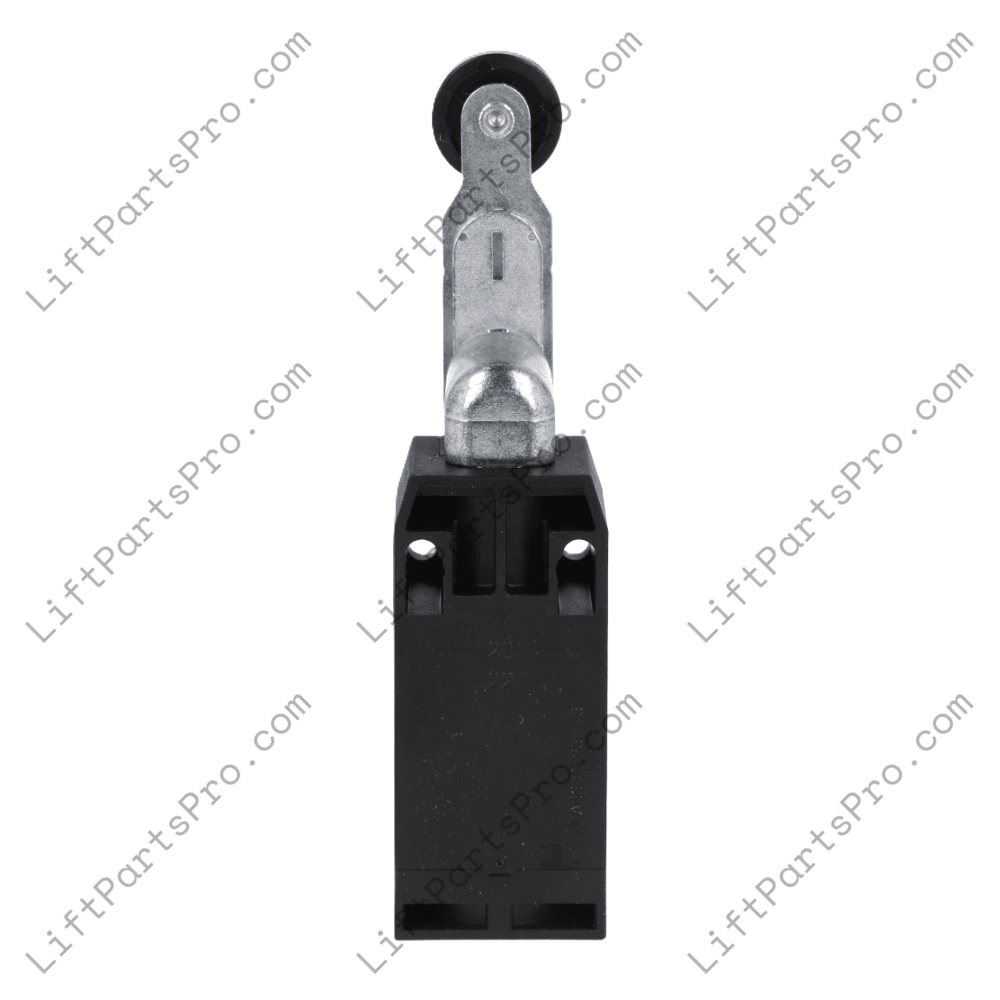

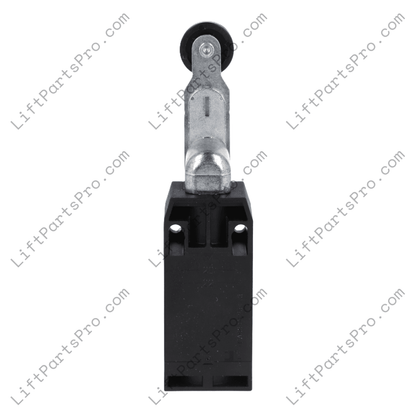

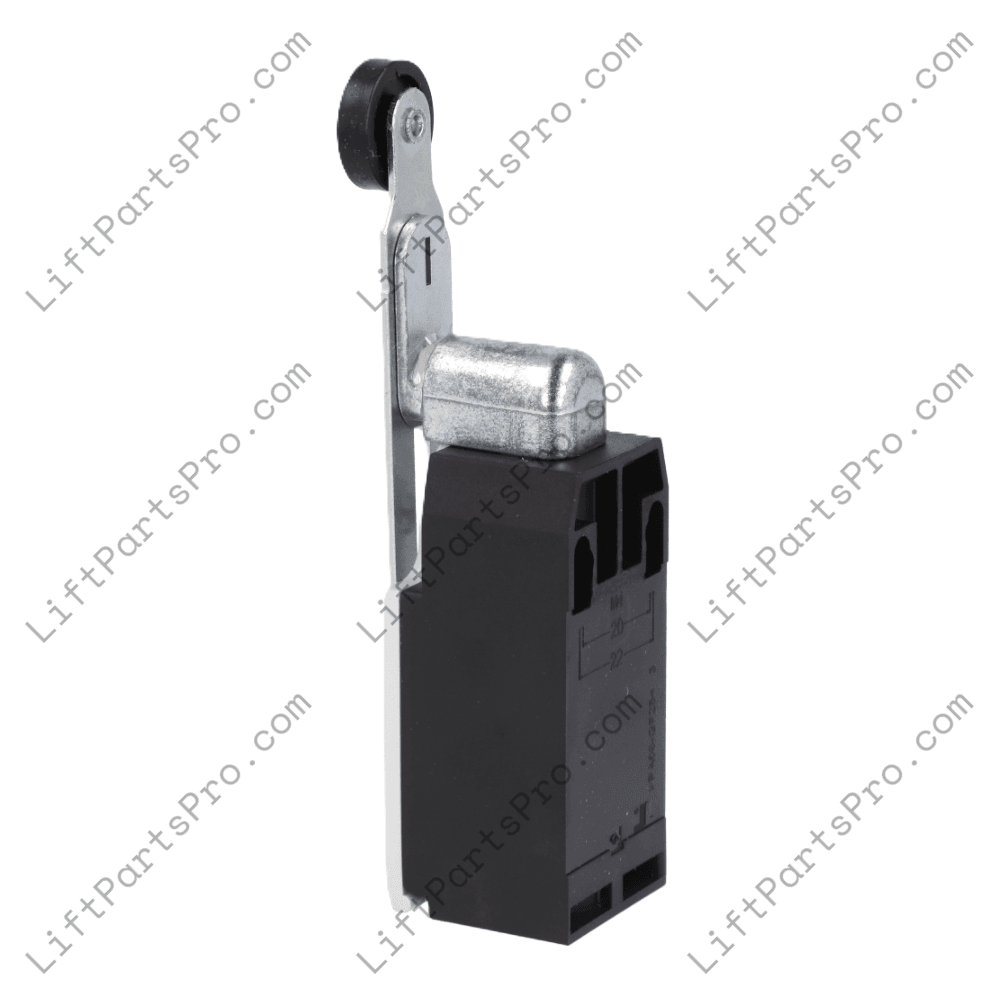

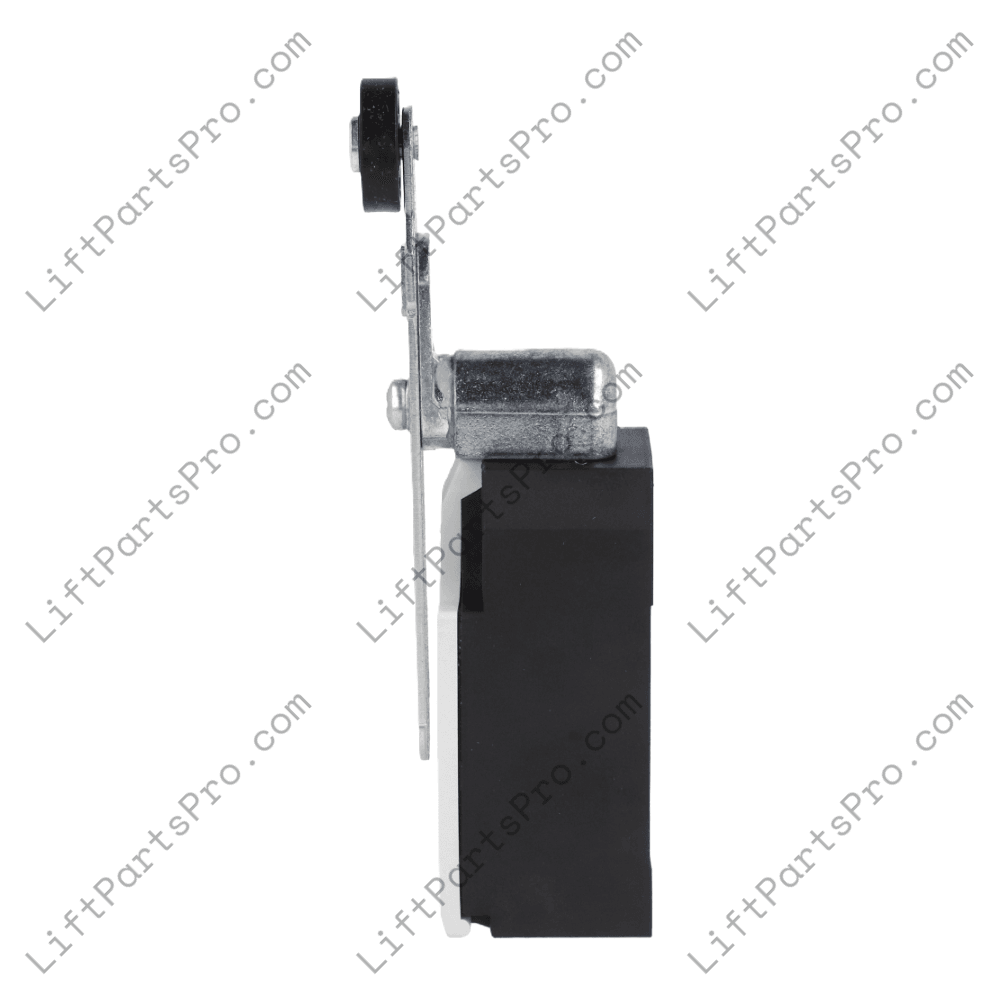

Long Arm Roller Limit Switch LS-20 for Savaria V-1504 Lift

Designed as a direct manufacturer replacement for the current #106471 limit switch, this long-arm roller limit switch is used on Savaria V-1504 (V1504) vertical platform lifts and numerous other accessibility lift models. It also replaces the legacy LS-20 switch, making it an excellent choice for servicing older installations while maintaining compatibility with current equipment.

Featuring a side rotary actuator with an adjustable long lever and roller wheel, this switch provides reliable mechanical position sensing in applications where consistent travel limits are essential. Its compact sealed housing is well suited for accessibility lift environments, while the adjustable lever allows proper alignment during installation. The switch includes two normally closed contacts for dependable switching performance across a wide range of lift applications.

• Replaces part #106471
• Replaces legacy LS-20 limit switch
• Compatible with Savaria V-1504 (V1504) vertical platform lifts and many other accessibility lift models
• Adjustable long roller lever actuator
• Plastic roller wheel
• Thermoplastic housing
• EN 50047 standard housing dimensions

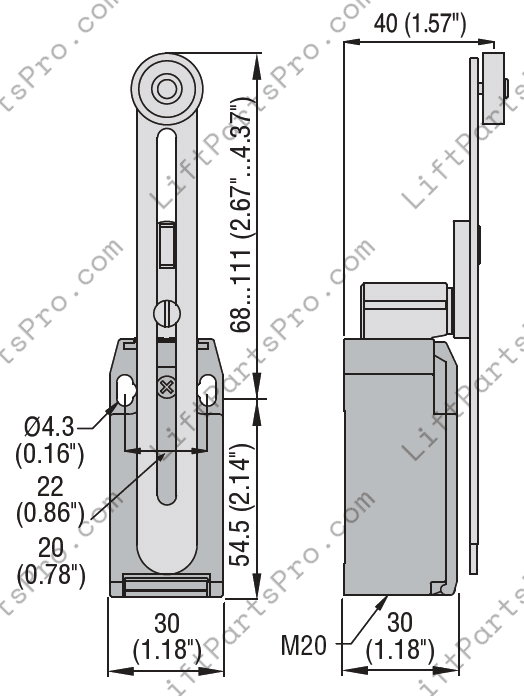

• Approximate body dimensions: 30 × 30 × 54.5 mm (1.18 × 1.18 × 2.15 in.)
• Overall height with lever: approximately 165 mm (6.5 in.)
• Two normally open (2NO) slow-action contacts
• Slow-break switching mechanism
• Positive-opening contacts
• Rated operational current: 10A
• M20 bottom cable entry
• IP65 environmental protection
• Operating temperature: -25°C to 70°C (-13°F to 158°F)
• Mechanical life: Over 10 million operations
• Maximum operating rate: 3,600 cycles per hour
• Compact cuboid housing with two mounting holes


For dependable lift performance, replacement limit switches should always be installed and inspected by qualified personnel following applicable codes and manufacturer requirements. Proper installation and adjustment help ensure reliable operation and long service life.
