Porch-Lift

Lock Actuator for Porch-Lift "Star Wheel" Assemblies

Lock Actuator for Porch-Lift "Star Wheel" Assemblies

Regular price $124.25 USD
Regular price $175.00 USD Sale price $124.25 USD
Sale Special Order
Shipping calculated at checkout.

🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.

SKU: SOL.PLS.DW

Condition: New

Compatible with ThyssenKrupp Access Porch-Lift units equipped with the "Star Wheel" (or "Daisy Wheel") style interlock lock assembly.

Economical solenoid replacement for OEM #53194 used in aging Porch-Lift star-wheel locking systems.

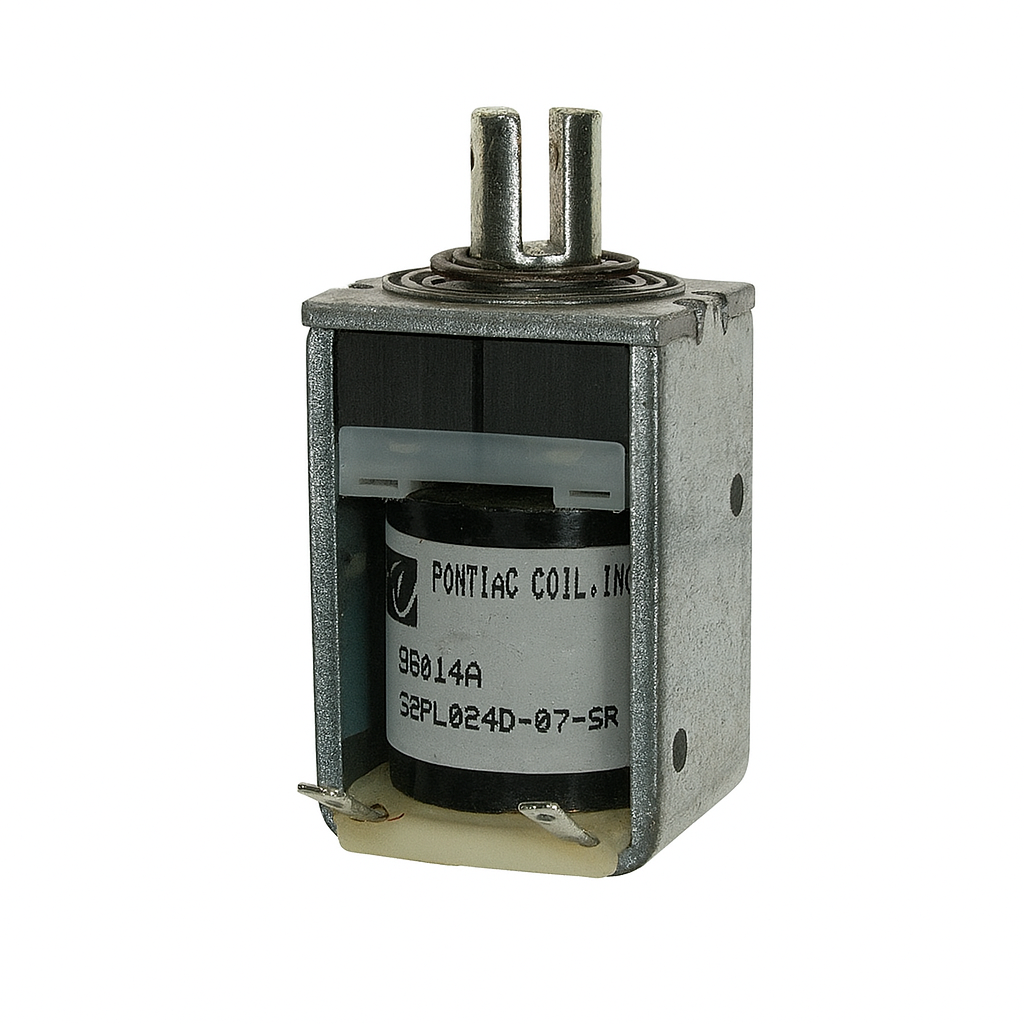

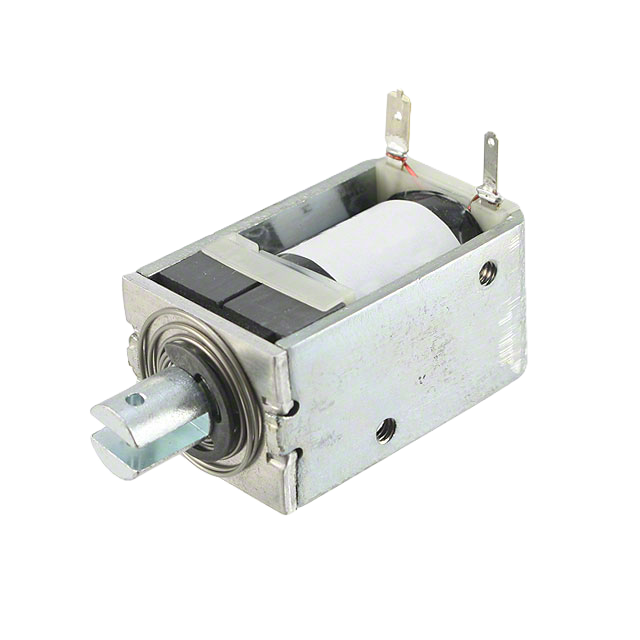

This pull-type solenoid coil is a direct-fit actuator for legacy Porch-Lift interlocks that use a brass star-shaped cam to secure the platform at each landing. It provides the mechanical pull force required to release the lock when the lift reaches the correct level, restoring proper gate or platform operation without replacing the entire interlock assembly.

  • Pull-type solenoid actuator for gate or platform lock release
  • Compatible with "Star Wheel" / "Daisy Wheel" lock mechanisms
  • Replaces OEM part number #53194
  • Electrical terminals match original configuration
  • Designed to fit in existing lock housing without modification

For proper function, confirm the lift uses the brass star-wheel style lock before ordering. This solenoid will not operate correctly with other interlock styles.
