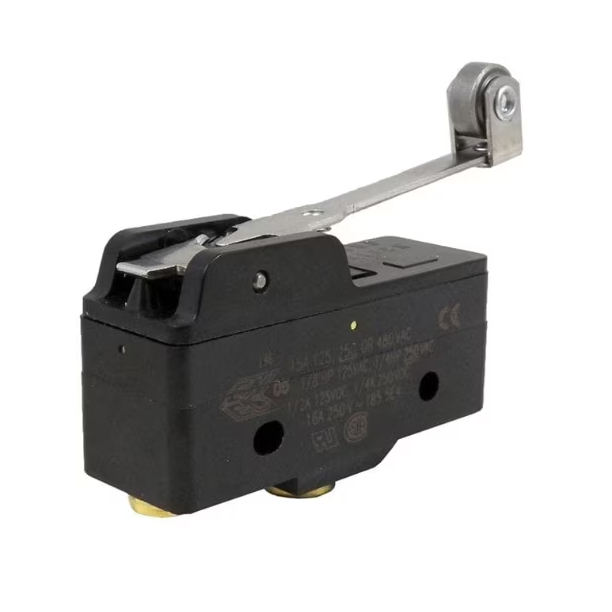

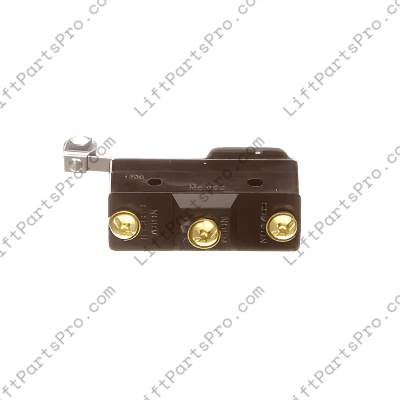

Limit Switch With Roller Arm - National Wheel-O-Vator and Porch-Lift

Compatible with: National Wheel-O-Vator and Porch-Lift Vertical Platform Lifts

Product Overview: This limit switch with roller arm is a high-quality replacement component designed for National Wheel-O-Vator and Porch-Lift vertical platform lifts (VPLs). It plays a critical role in ensuring precise and reliable operation at door zones, landings, and as a final limit switch, enhancing the safety and efficiency of your lift system.

Key Specifications:

• Circuitry: Single Pole Double Throw (SPDT) configuration
• Current Rating: 15 A (AC), 500 mA (DC)
• Voltage Rating: 125 V AC/DC
• Actuator Type: Lever with roller for smooth mechanical actuation
• Mounting Type: Chassis mount for secure and stable installation
• Termination Style: Screw terminals ensuring firm electrical connections
• Operating Force: Approximately 97 gf (gram-force)
• Operating Position: 30.17 mm (1.188 inches)
• Differential Travel: 0.10 mm to 1.0 mm (0.004 to 0.040 inches)
• Overtravel: Minimum of 3.96 mm (0.156 inches)
• Operating Temperature Range: -55°C to 85°C (-67°F to 185°F)
• Mechanical Life: Up to 20 million cycles, ensuring long-lasting performance

Features:

• Durable Construction: Built to withstand rigorous operational demands, providing longevity and reliability in various environmental conditions.
• Precision Performance: Ensures accurate activation and deactivation at designated points, crucial for safe and efficient lift operation.
• Easy Installation: Designed for straightforward replacement, minimizing downtime during maintenance or upgrades.
• Versatile Application: Suitable for multiple functions within the lift system, including door zone sensing, landing positioning, and final limit protection.

Upgrade your vertical platform lift with this dependable limit switch to maintain optimal performance and safety standards.
