Light Ray Pair for Savaria LU/LA and Other Commercial Elevators

Direct replacement for legacy WECO light rays and light screens used in many LULA elevators, like those using the discontinued WECO-917B72-A110 light curtain system.

This universal door detector system functions as a modern infrared safety screen, improving elevator door safety with a dense field of 94 non-parallel infrared beams. Designed for side-opening or center-opening elevator doors, it provides fast, reliable detection of obstructions using synchronized light curtain technology. Commonly referred to as a light ray or door detector, this unit integrates easily in LULA systems where older sensors have been discontinued.

• 94 infrared beams across 32 diode pairs for high-density protection
• Detecting height: 20mm–1841mm
• Operating range: 0–3000mm (extendable to 4000mm)
• Scan mode: 3-way detection for maximum coverage
• Response time: 65ms
• ±15mm vertical and ±4mm horizontal linear tolerance
• Green and red LED indicators for quick diagnostics
• System rated IP54 for durability in normal elevator environments
• Power unit operates on 120VAC ±15%, 60Hz
• Output relays: 1NO/1NC, 120VAC 8A or 24VDC 8A
• Includes buzzer with adjustable nudging delay and duration

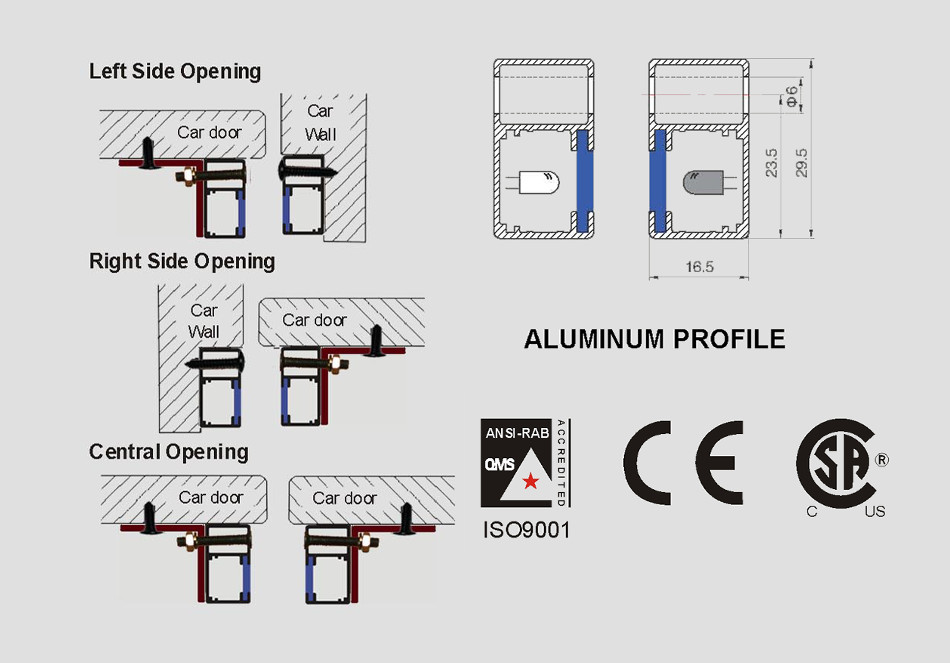

• Mounting style supports left, right, or center door openings

Included Accessories:

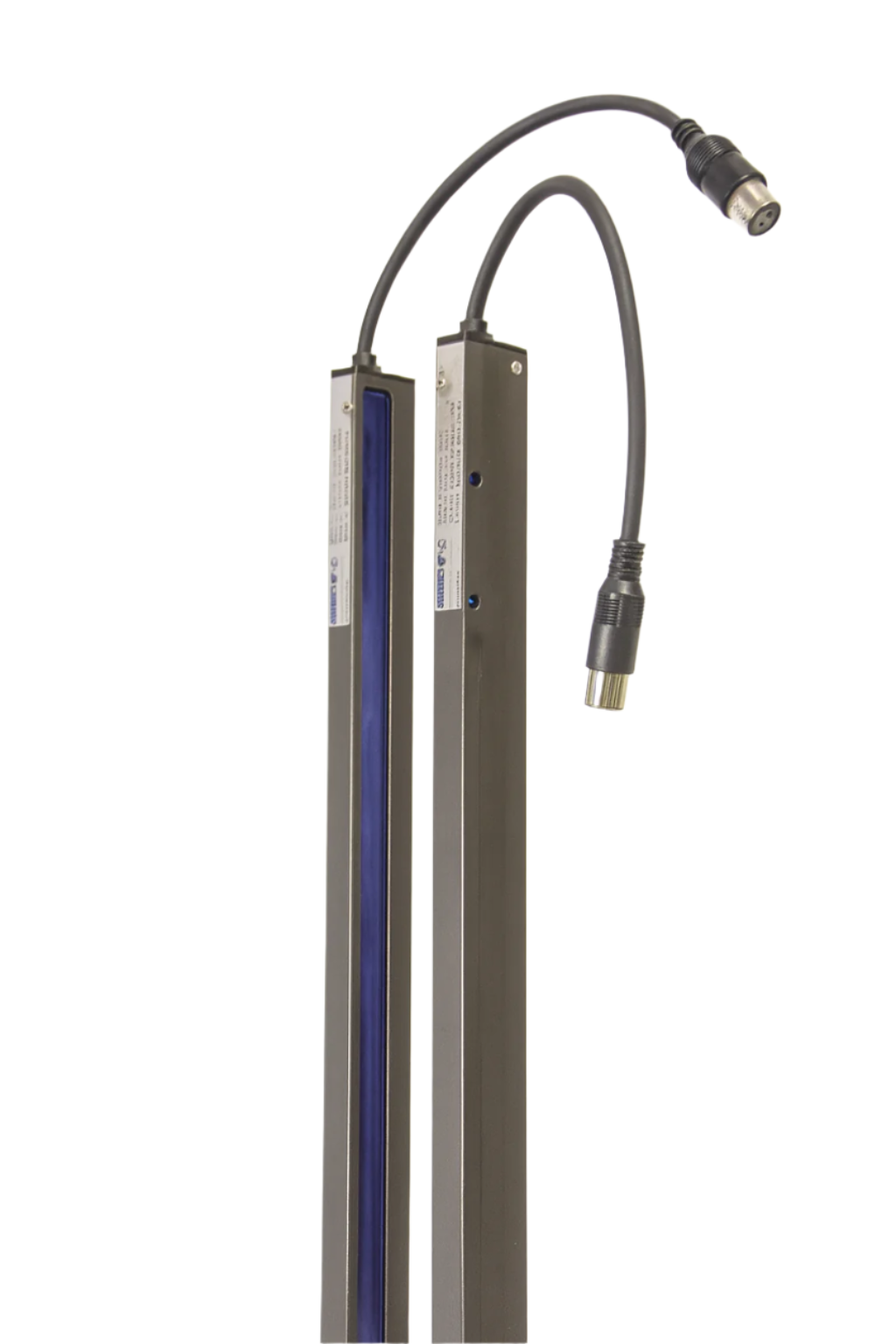

• Transmitter and receiver bars
• WECO957P 120VAC power supply unit

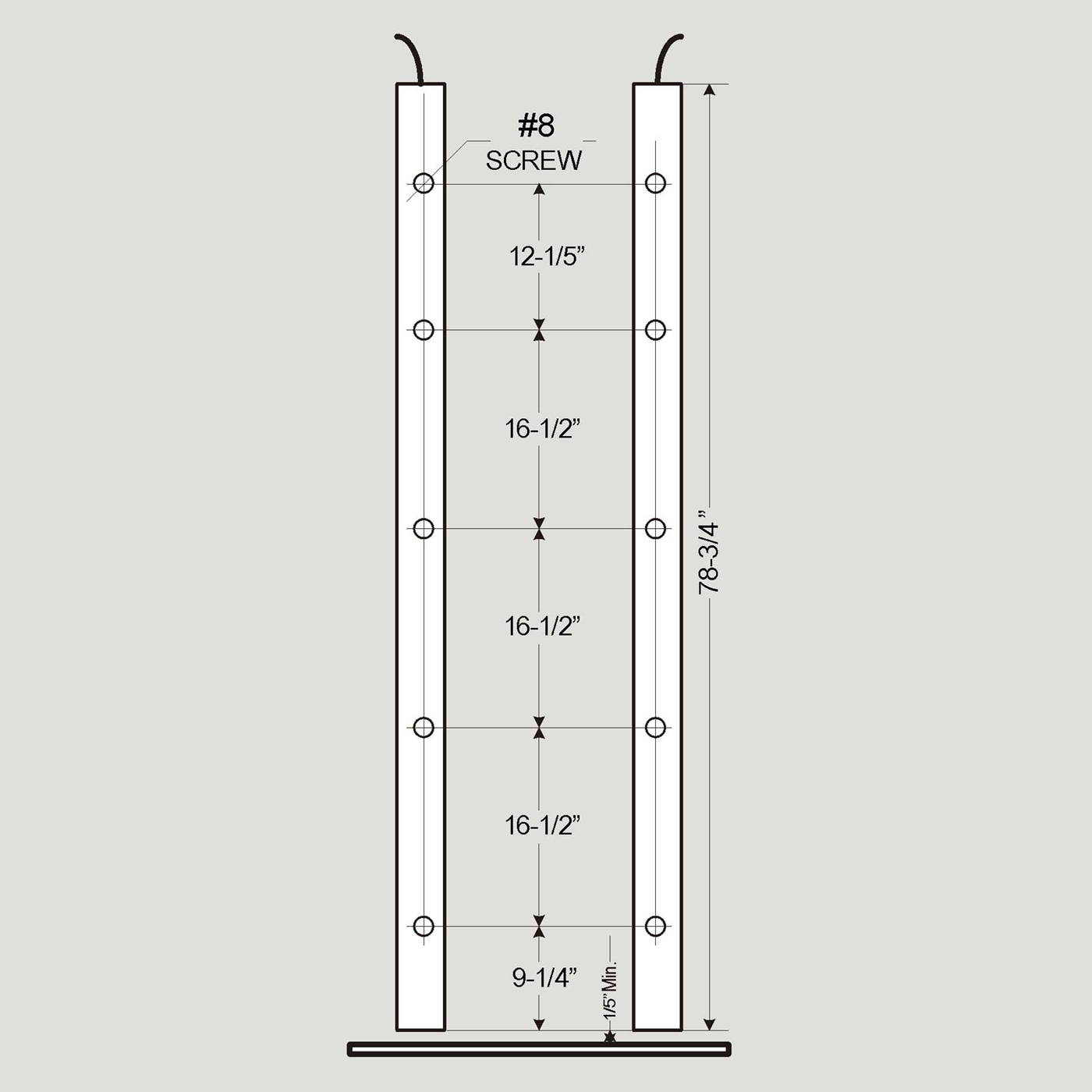

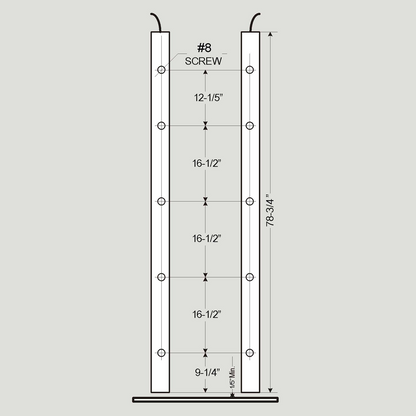

• Full mounting bracket set with #8 screws

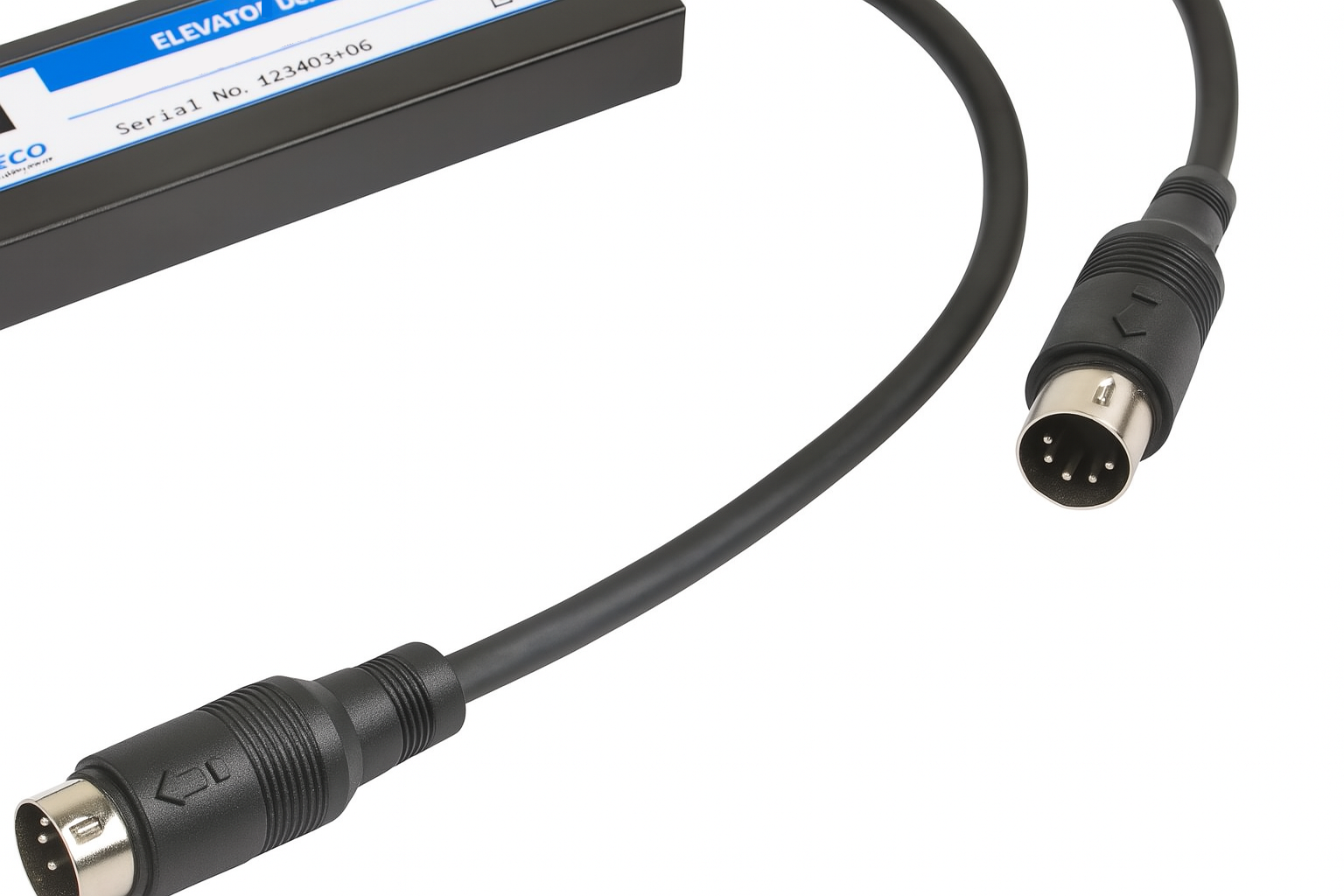

• Cable harness and flexible wiring
• Door detector extension cables
• User manual and installation guide

This light curtain system is a standard replacement option for elevator safety screens on LULA platforms requiring dependable obstruction sensing and modern infrared coverage.
