Elevator Lift Key Switch - Chicago H2252 #2252

Compatible with: National Wheel-O-Vator, Dover, Symmetry, Garaventa, Thyssenkrupp, LEV, Porch-Lift, Genesis, Bruno, Savaria, Concord, Matot, Cemco, Telecab, Liberty, and plenty more.

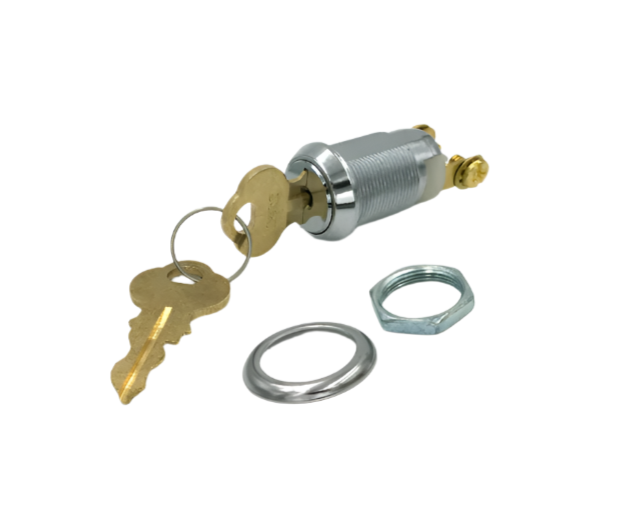

Product Description: This universal lift key switch is engineered for seamless integration across a wide range of elevator and vertical platform lift (VPL) brands. Featuring the widely recognized Chicago key code H2252 (2252), it ensures consistent and reliable operation for various lift systems. The switch operates with a single pole, single throw (SPST) mechanism, supporting up to 7 amps at 28 VAC/VDC. Its double-bitted assembly with eleven criss-cross blade tumblers enhances security, while the bright chrome finish offers a sleek appearance. The maintained contact action allows the key to be removed in both the 'Off' (12 o'clock) and 'On' (3 o'clock) positions, providing flexibility during maintenance and operation.

Specifications:

• Contact Configuration: Single Pole, Single Throw (SPST)
• Electrical Rating: 7 Amps @ 28 VAC/VDC
• Key Code: H2252 (2252)
• Operation: 90-degree clockwise rotation; maintained. Choose between one pull or two pull (Removeable in the OFF position or in the ON and OFF positions)
• Finish: Bright Chrome

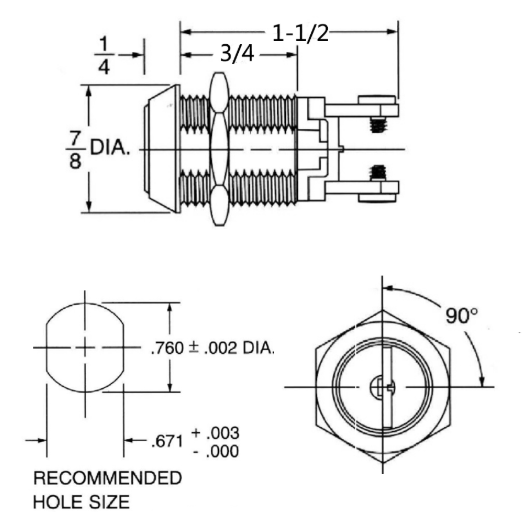

• Mounting Hole Dimensions: Double D, 0.671" x 0.760"
• Terminals: Screw type

This key switch is an ideal replacement or upgrade for enhancing the security and functionality of your lift system.
