LED Puck Light Upgrade Kit - Thyssenkrupp Access Cab Lights

Compatible with Thyssenkrupp Access LEV Elevators

Upgrade your elevator lighting with a warm, energy-efficient LED retrofit designed to replace outdated halogen puck lights.

This LED Puck Light Upgrade Kit offers a significant lighting improvement for LEV elevator cabs, delivering modern, warm 3000K illumination with lower energy use and virtually no heat. The included LED fixtures are engineered to fit the existing 55mm–60mm recessed ceiling cut-outs in most LEV models. Installation is straightforward using integrated spring clips; however, most installations will require removing the standard 110V plug from the included power supply to wire directly where the original halogen wiring harness was connected.

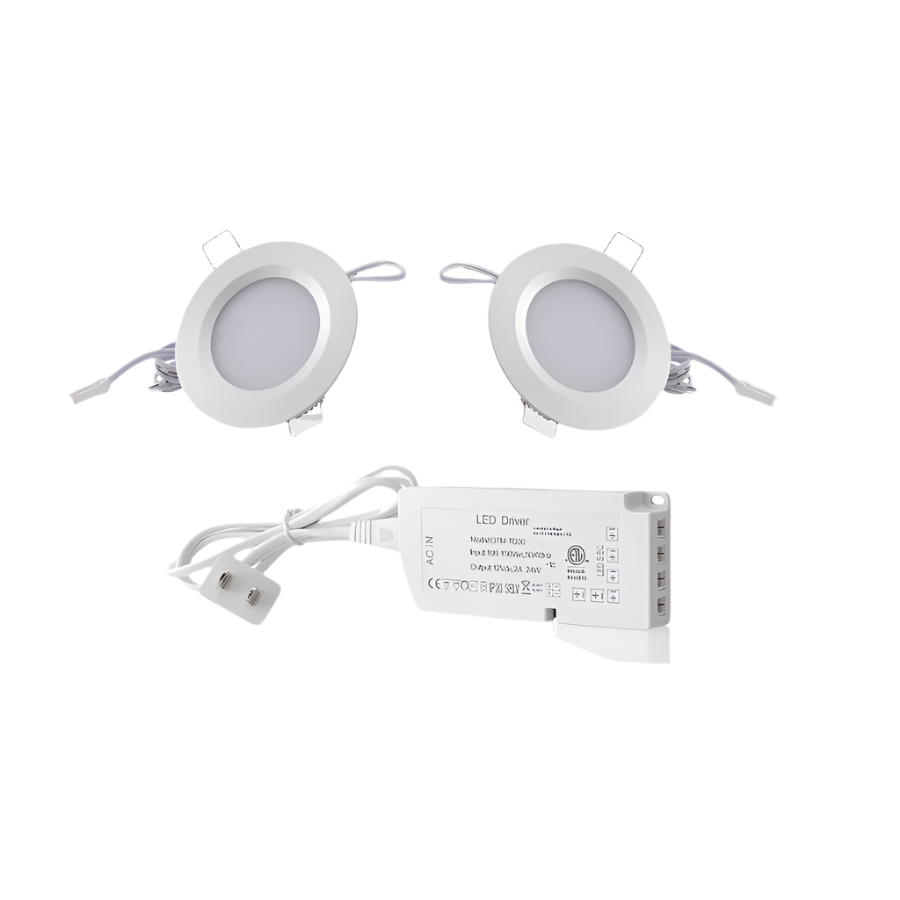

Each kit includes two recessed ceiling LED puck lights and a 24-watt power supply with power cord, providing a clean, flicker-free upgrade with long-term reliability and efficiency.

Specifications – LED Puck Lights:

• Lumen Output: 300 lumens per light
• Color Temperature: 3000K Warm White
• Wattage: 3W per puck
• Voltage: 12V
• Trim Color: White
• Size: 2.75" x 0.51" (70mm x 13mm)
• Cut-Out Size: 2.17"–2.36" (55–60mm)
• Construction: Aluminum with spring clips
• Connection: 6-foot 2510 wire harness

Specifications – Power Supply:

• Input: 100–130VAC
• Output: 12VDC / 24W
• Connections: Standard wall outlet plug (must be removed for most LEV installs)
• Efficiency: Up to 83%; Power Factor > 0.6
• Dimming: 12V PWM
• Protection: Short-circuit, overload, over-temperature
• Flicker-Free: Yes
• Manufacturer's Warranty: 3 years

Note: This kit is intended for retrofit use in LEV elevator cabs using halogen puck lighting. Installer must ensure proper wiring in accordance with local code and elevator guidelines. No installation support provided.
