Kronenberg Elevator Door Lock DL1/6 with X20 Latch

Durable DL1/6 door lock with 20mm latch, left or right-hand option, IP40 protection, and 1NO+1NC auxiliary switch for lift door applications.

Images are for reference. Please refer to the specifications below.
If you are uncertain which Kronenberg lock you need, please contact us.

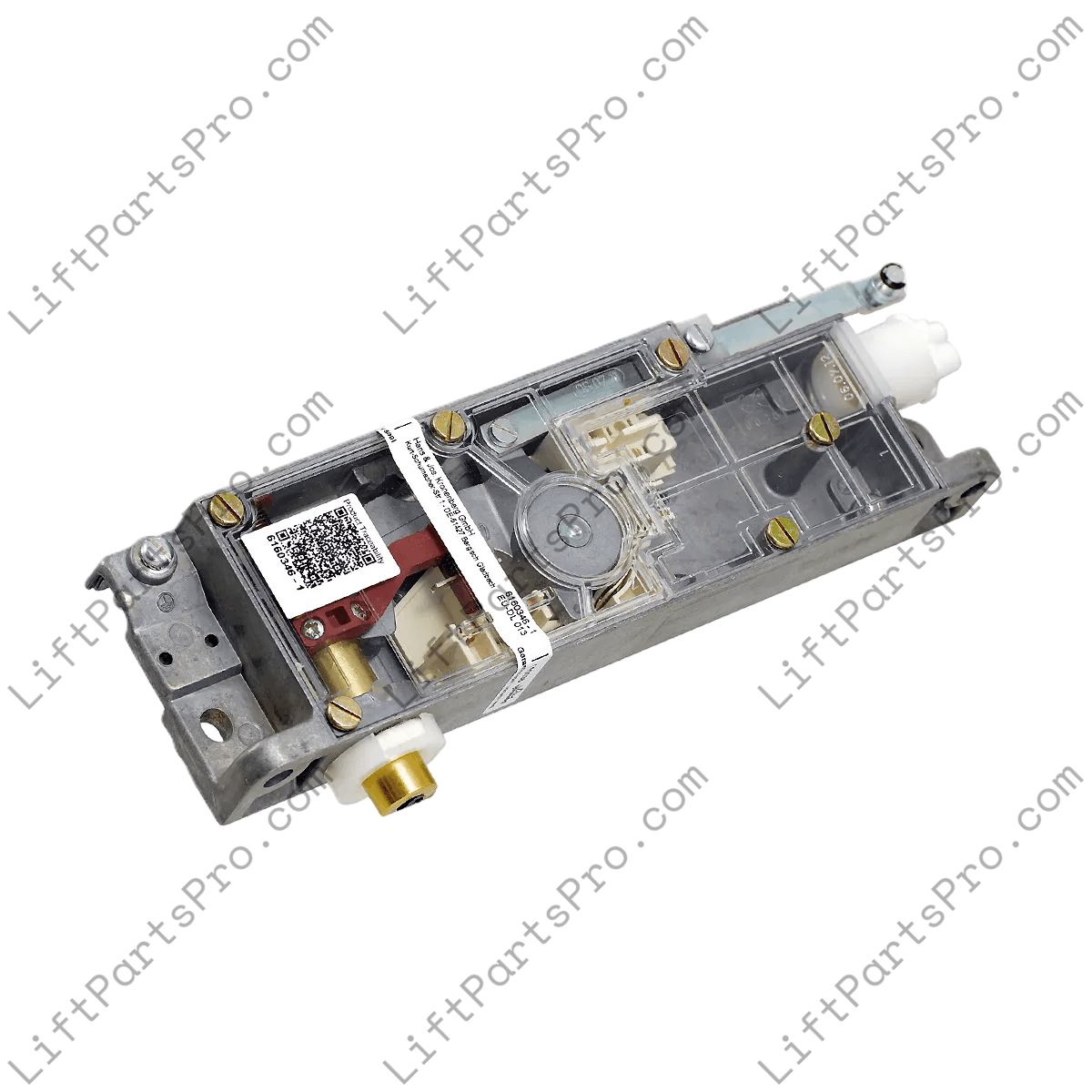

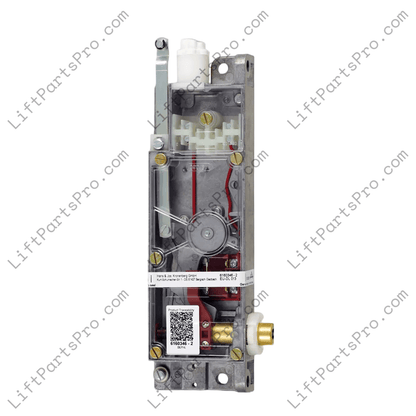

This Kronenberg DL1/6 door lock is engineered for elevator landing doors requiring reliable interlocking and signal feedback. Featuring a 20mm X-dimension latch, this unit supports both left and right-handed installations. It includes an integrated auxiliary switch with one normally open and one normally closed contact, making it suitable for systems that monitor door lock status. Built for performance in general indoor environments, the housing offers IP40 protection. The unit is mechanically actuated via a pull rod and designed to fit a wide range of elevator doors that meet these specifications.

• Model: DL1/6‑L‑X20(ANS3/U).10.9/11 and DL1/6‑R‑X20(ANS3/U).10.9/11
• Latch Position: X20 (20mm from edge to latch center)

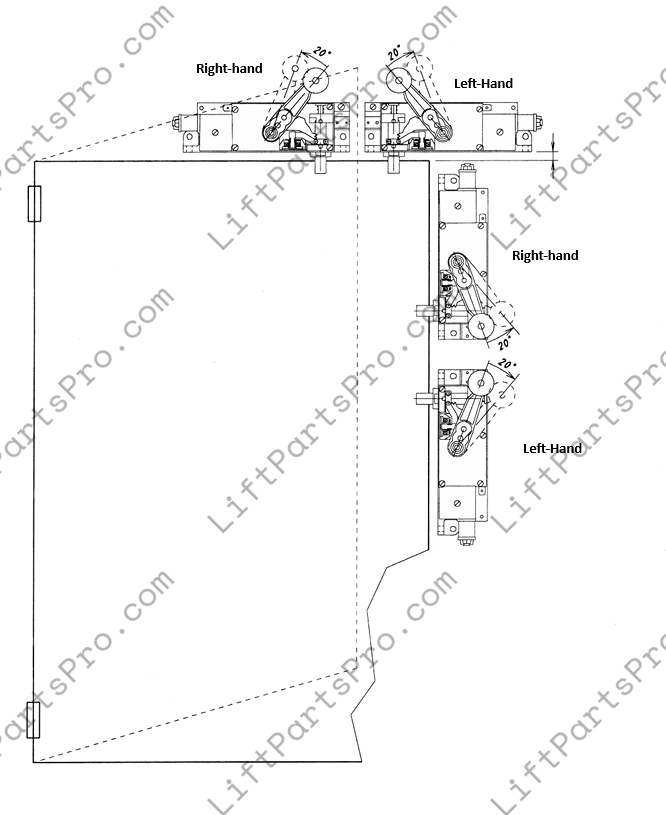

• Handing: Available in Left or Right (Please see image for handing designation.)
• Actuation Type: Pull rod
• Actuation Style: ANS3/U
• Switch Configuration: 1 NO + 1 NC auxiliary contacts
• Enclosure Rating: IP40
• Weight: ~0.84 kg
• Material: Metal housing with integrated microswitch
• Mounting: Surface-mounted on landing doors

For safety and compliance, all elevator door locking devices must be installed and tested by qualified lift technicians. This product is built to meet operational standards for modern lift systems and supports safe access control when installed to code.
