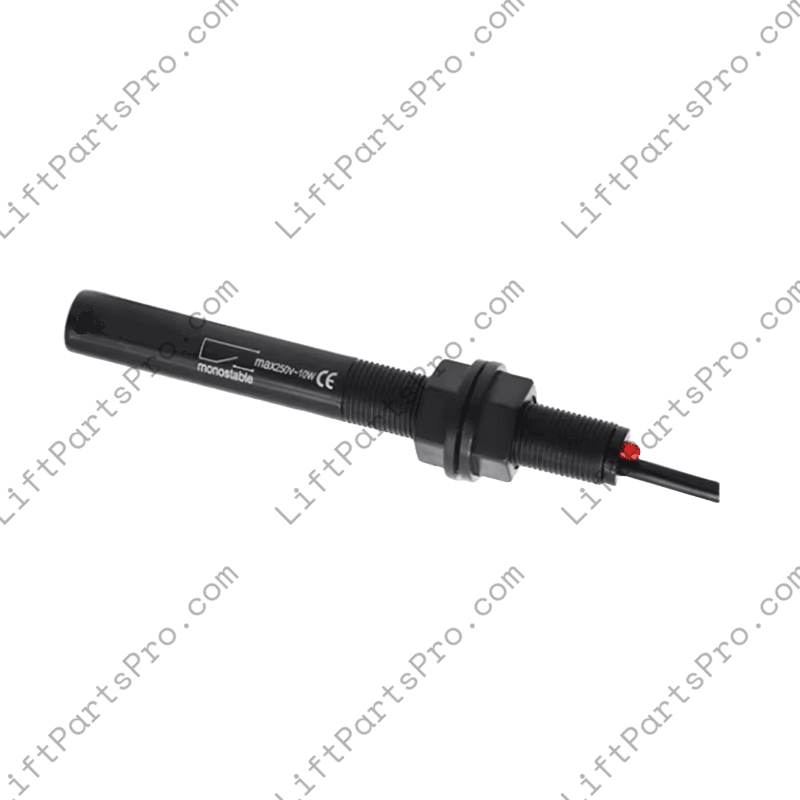

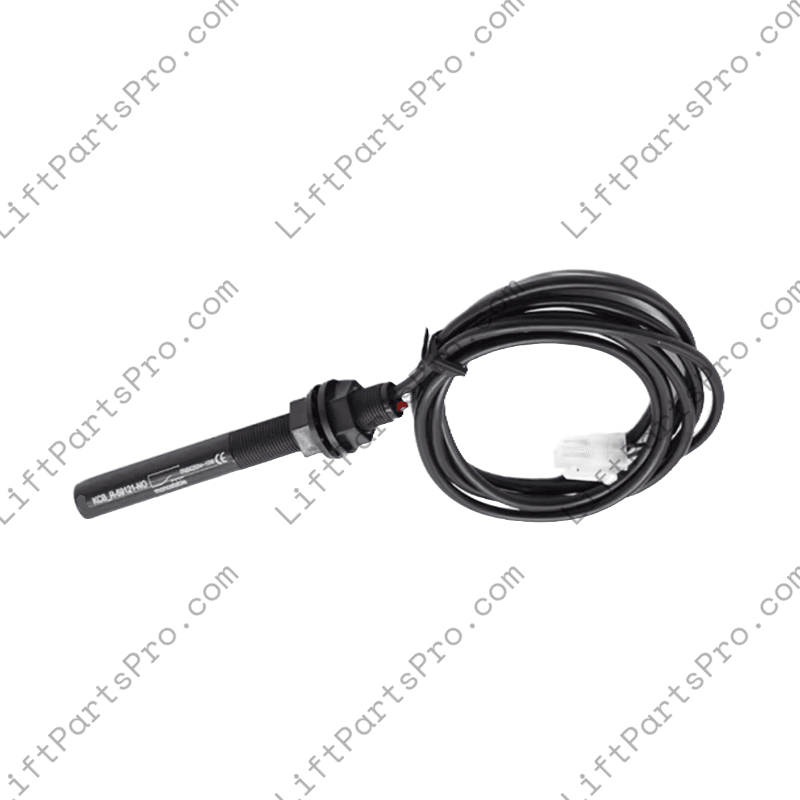

KONE Montgomery Cigar Leveling Switch – Door Zone Reed Sensors

Genuine KONE-style cigar leveling switches: Upper, Lower, or Center. 100 VAC reed sensors with 3 m cable. Reliable elevator leveling and floor zone control.

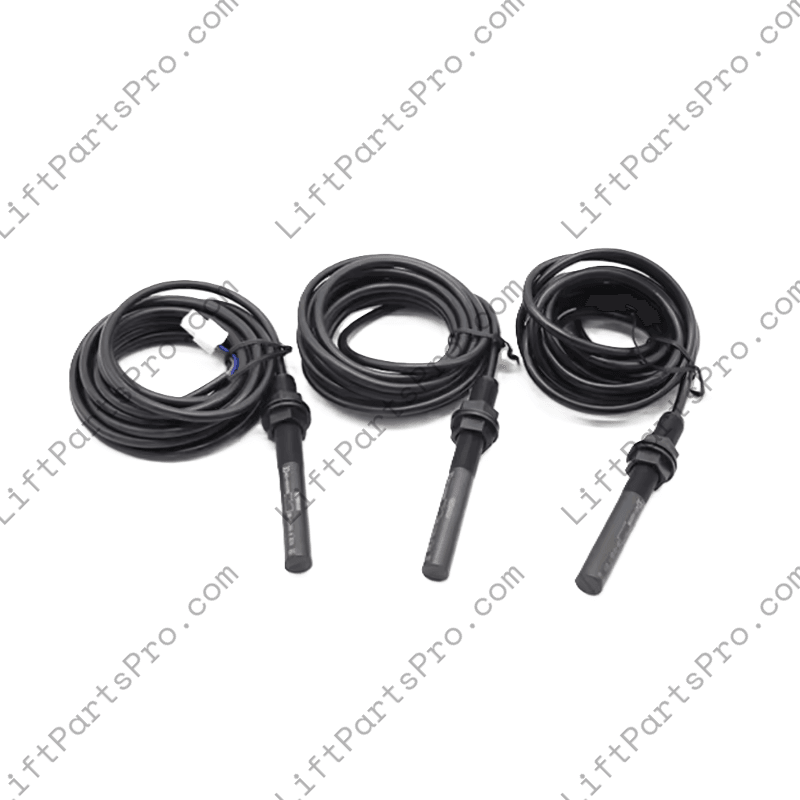

Upgrade or replace your KONE/Montgomery elevator leveling sensors with these cigar-style reed switches, offered in one of three standard models, or a set of all three

Each unit features a sealed magnetic reed contact, 3-meter cable, and 100 VAC / 10 VA rating for long-life signal reliability in control-circuit use.
All three models share identical electrical and mechanical specs; their model numbers indicate position and function within the leveling zone:

• Upper Leveling: Detects car approach to floor from above.
• Lower Leveling: Detects car approach from below.
• Center Zone: Marks the exact floor-level reference point.

These are low-current signal switches (not for direct load switching) used to ensure precise, smooth stopping accuracy.
Compatible with many KONE and Montgomery elevator controllers and easily adapted to modernization applications.

Specifications

• Type: Magnetic reed, Normally Open (N.O.)
• Voltage Rating: 100 VAC / ≤10 VA
• Cable: 3 m PVC lead, 2-wire (22–24 AWG)
• Body Size: Ø 12 mm × ~100 mm
• Operating Temp: −10 °C to 70 °C

As with all door leveling sensors, please ensure that replacement, modifications, and adjustments are performed by knowledgeable elevator technicians.
