Interlock Solenoid Coil – 24VDC, 0.625″ Stroke, Potential Replacement for ProLift locks

Continuous‑duty solenoid coil, 24 VDC, 0.625″ pull stroke, chassis mount — potential replacement for obsolete RedArr 30002 in select Savaria Pro-Lift models.

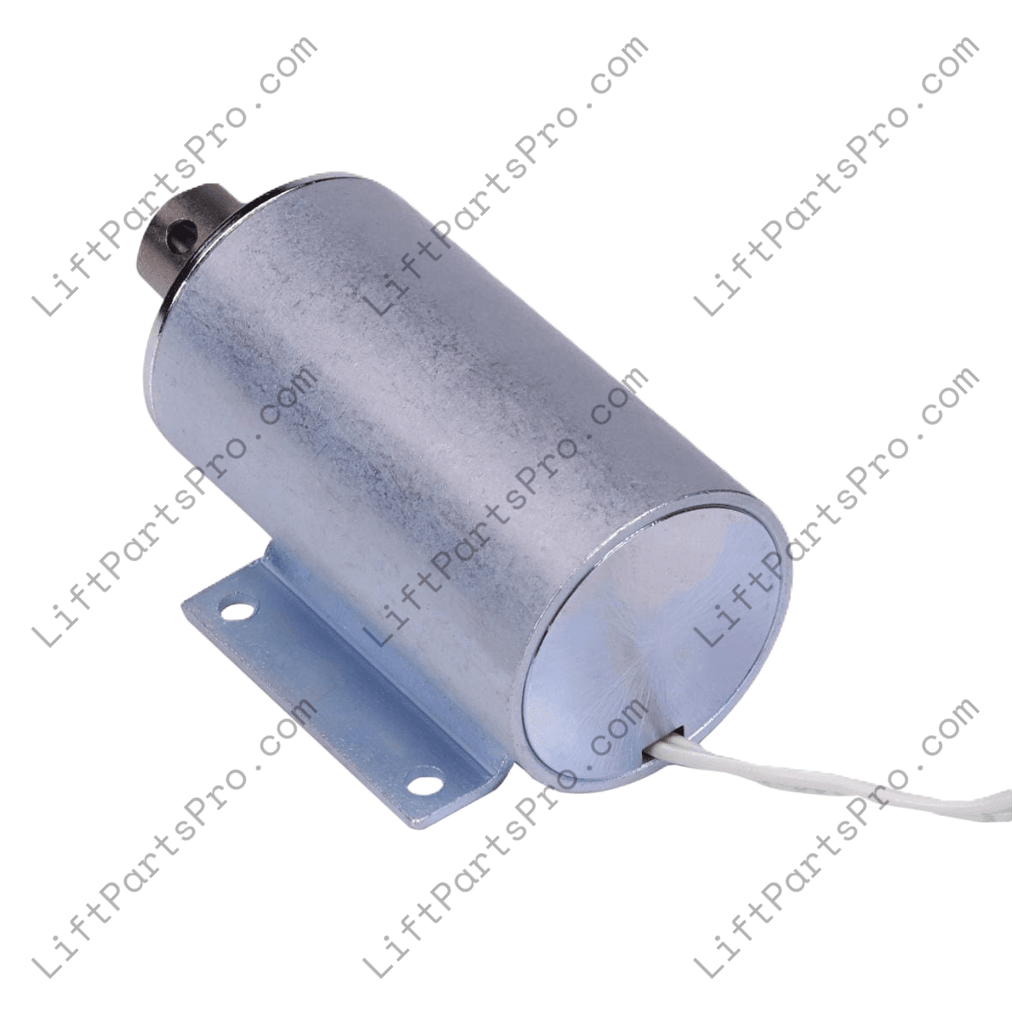

This tubular solenoid coil features a continuous-duty 24 VDC design with a 0.625″ pull stroke, quick-connect terminals, and a compact chassis-mountable body. It is being offered as a potential modern replacement for obsolete RedArrow #30002 solenoids used in select interlock systems, including some Savaria Pro-Lift (ProLift) elevators. Because original RedArrow specifications are unavailable, this Johnson Electric coil should be evaluated carefully by the purchaser to determine suitability for their specific application.

• Voltage: 24 VDC
• Duty Cycle: Continuous
• Stroke: 0.625″ pull
• Power: 15.6 W
• Coil Resistance: 36.9 Ω
• Mounting: Chassis mount
• Termination: Quick connect

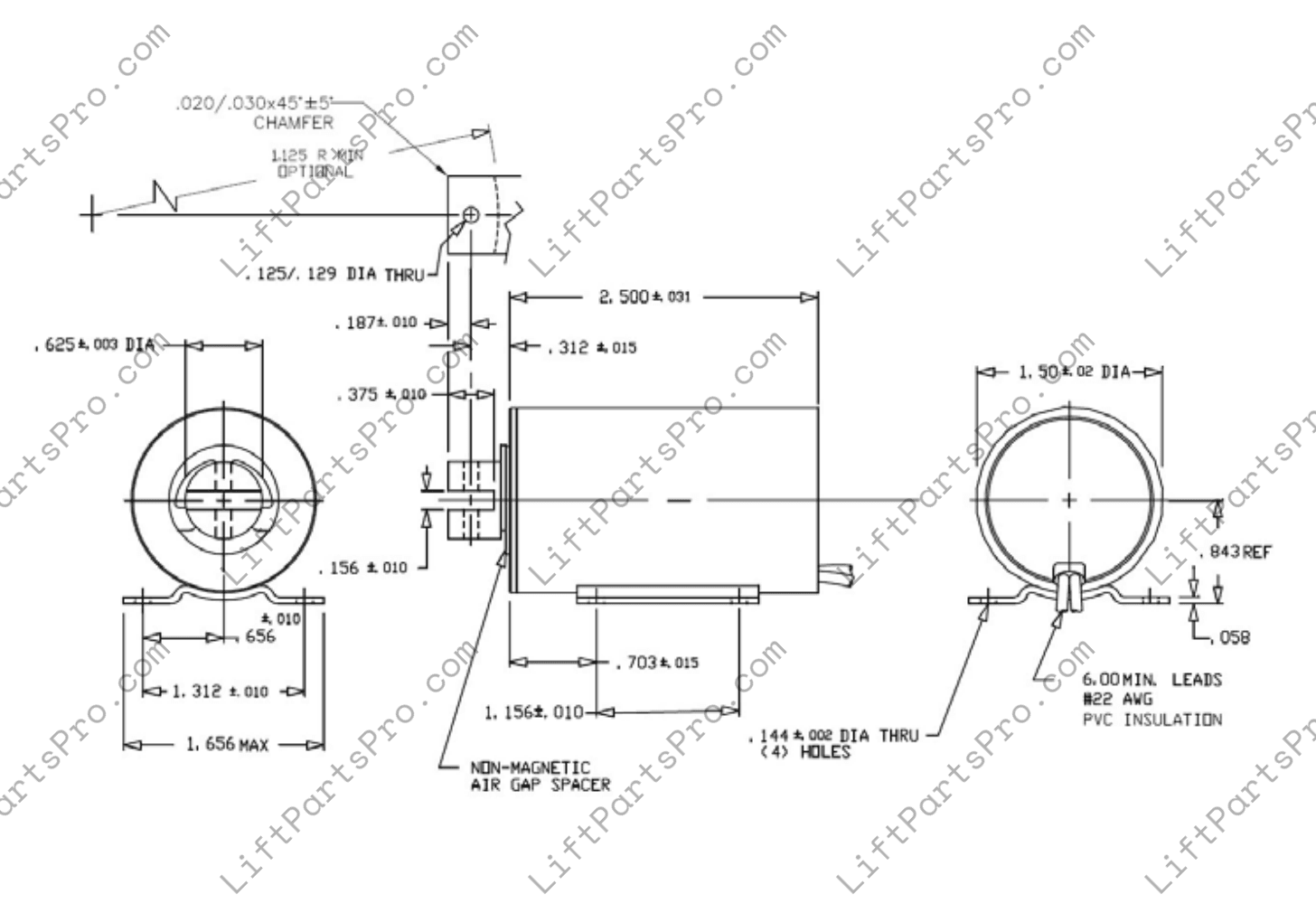

• Dimensions: 1.5″ dia × 2.5″ length
• Shaft End: Clevis style

Always verify critical fit, force, and stroke requirements before installing substitute parts. For safety and reliability, this solenoid coil should be installed by qualified technicians following applicable lift codes and equipment specifications.
