Interlock Solenoid Actuator for Garaventa Genesis Powerlock 2000

Replacement 24 VDC pull‑type cylinder actuator for Garaventa & Genesis Powerlock 2000 lock systems in residential/commercial elevators.

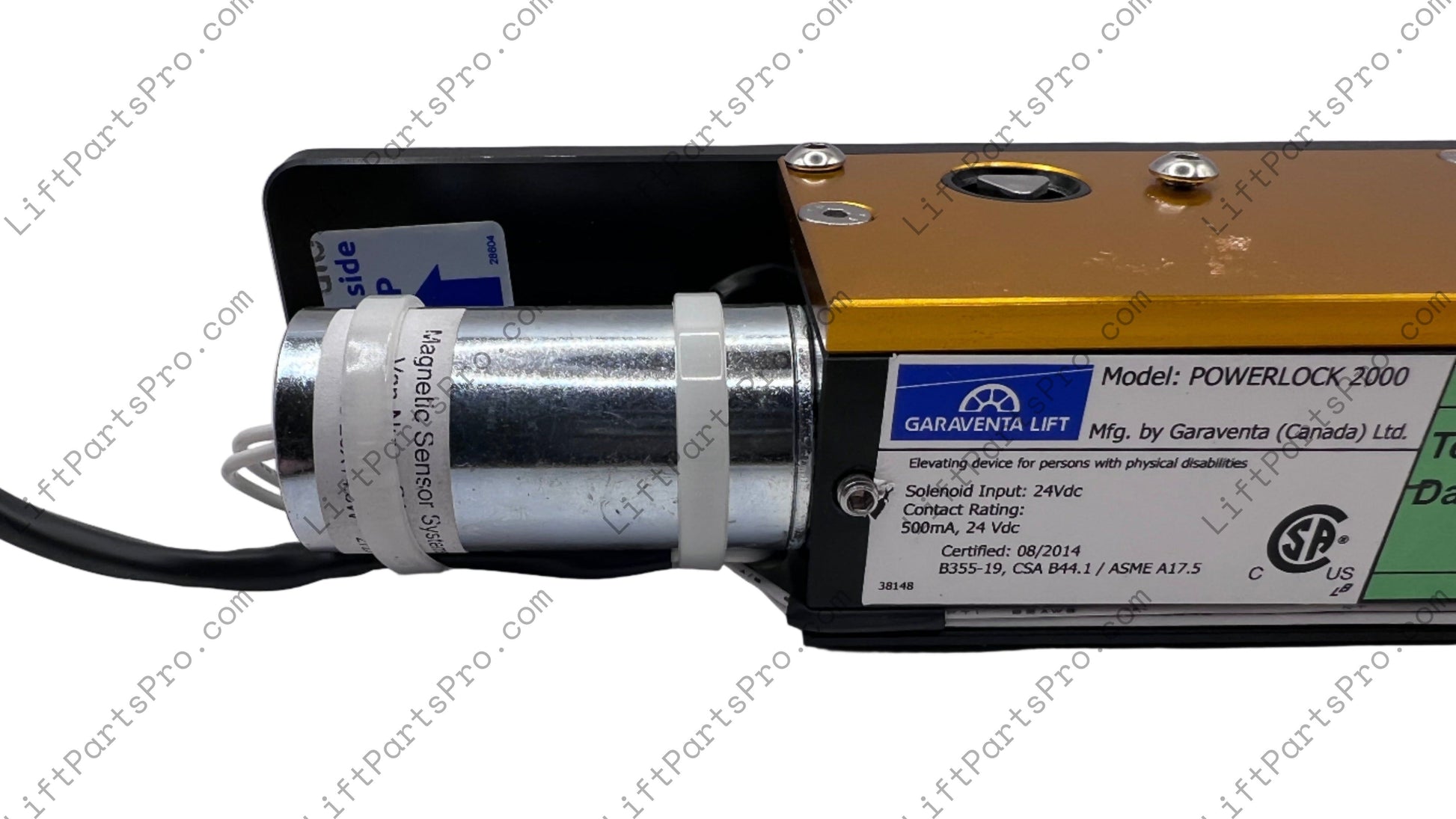

This pull‑type solenoid actuator is designed specifically for use as the lock actuator in the Garaventa Genesis Powerlock 2000 model interlock systems. It operates at 24 VDC and is suited for the deadbolt/safety circuit configuration used in Garaventa Shaftway‑type lifts. The actuator features a tubular pull‑solenoid construction compatible with standard lock bolt assemblies and provides reliable locking engagement when energized. It is ideal for replacing worn or failed actuators in the door/gate interlock assembly of Garaventa vertical platform lifts, ensuring continued safety monitoring by the lift’s control system. The robust construction supports full‑time duty cycle operation and fits directly into the lock mechanism of the Powerlock 2000 without modification.

Specifications:

• Voltage: 24 VDC (nominal)
• Duty cycle: Continuous operation capable (100%)
• Frame size: approx. 1″ (25.4 mm) diameter × 2″ (50.8 mm) length
• Plunger weight: approx. 1.6 oz (45 g)
• Total weight: approx. 6.2 oz (176 g)
• Coil resistance and ampere‑turns vary by voltage: e.g., at 26 VDC ~7.10 Ω coil resistance with approx. 8.4 A (ampere‑turns 1590) for half‑duty
• Design: tubular pull‑type actuator, direct linear plunger motion, mountable in dead‑bolt interlock housings
• Compatibility: Specifically recommended as replacement for the lock actuator in the Garaventa & Genesis Shaftway / Powerlock 2000 interlock system
• Operating environment: Indoor lift door/gate interlock assemblies operating under monitored safety circuit conditions

This solenoid actuator is built and specified for interlock use in lift door systems and should be installed by qualified personnel in accordance with all applicable codes and safety standards. Proper installation ensures the integrity of the monitored lock function and supports the safe operation of the lift door/gate interlock.
