Inclinator Phase II Cable Drum 2-Stop Relay Controller PCB
Inclinator Phase II Cable Drum 2-Stop Relay Controller PCB
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: PCB.INC.P2L2
Condition: New
Couldn't load pickup availability

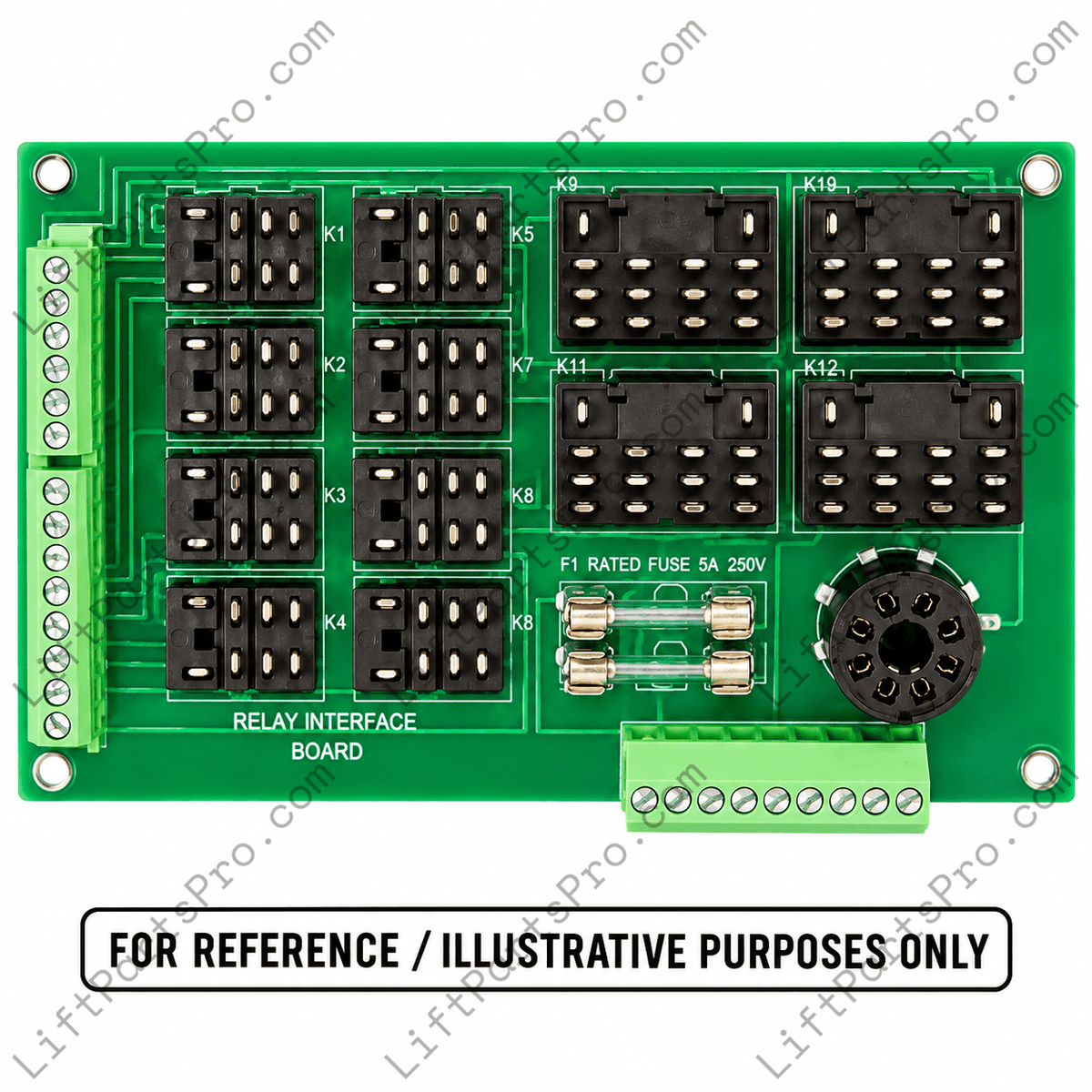

Designed for use in compatible Inclinator residential elevator control systems, this relay interface PCB provides the connection and relay mounting points used by the Phase II Cable Drum 2-Stop controller. It replaces legacy Inclinator part #67305455 and is intended for select installations using the corresponding relay-based control configuration. The board incorporates multiple relay sockets, field wiring terminal blocks, onboard fuse holders, and a multi-pin circular connection point in a single replacement assembly.
- Product type: Relay controller / interface circuit board
- Application: Residential elevator control system
- Compatible equipment: Select Inclinator Phase II Cable Drum elevators
- Configuration: 2-stop systems
- Drive application: Cable drum
- Legacy replacement number: 67305455
- Board type: Relay interface PCB
- Relay positions: Multiple plug-in relay sockets
- Field connections: Screw-terminal blocks
- Fuse provision: Dual onboard fuse holders
- Fuse marking: 5A, 250V
- Additional connection: Multi-pin circular socket
- Mounting: Four-corner PCB mounting holes
Elevator electrical and control components should be installed and verified by qualified elevator personnel in accordance with the equipment configuration, applicable codes, and established safety procedures.
