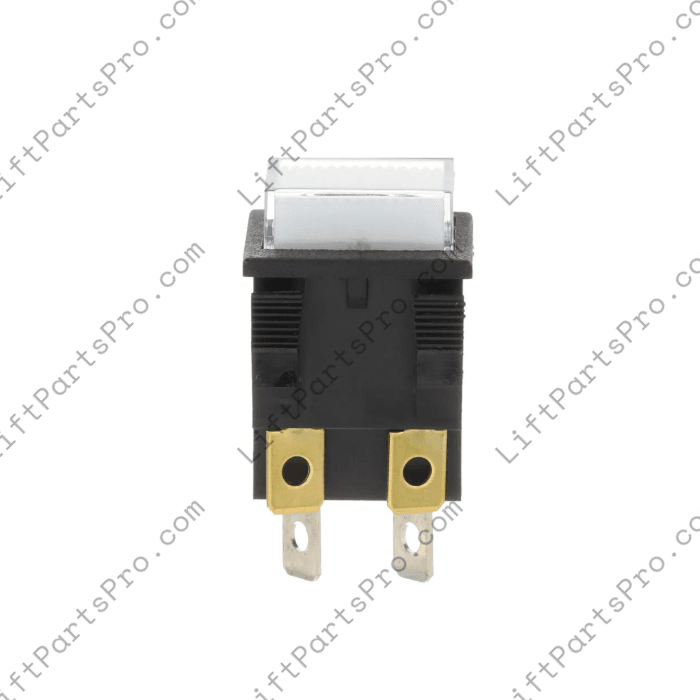

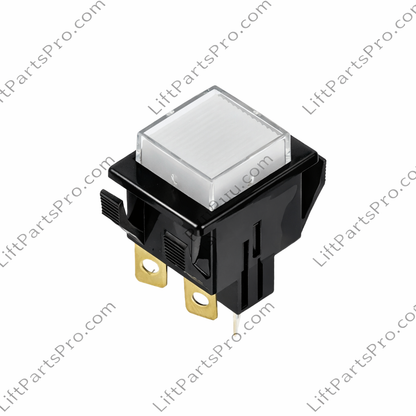

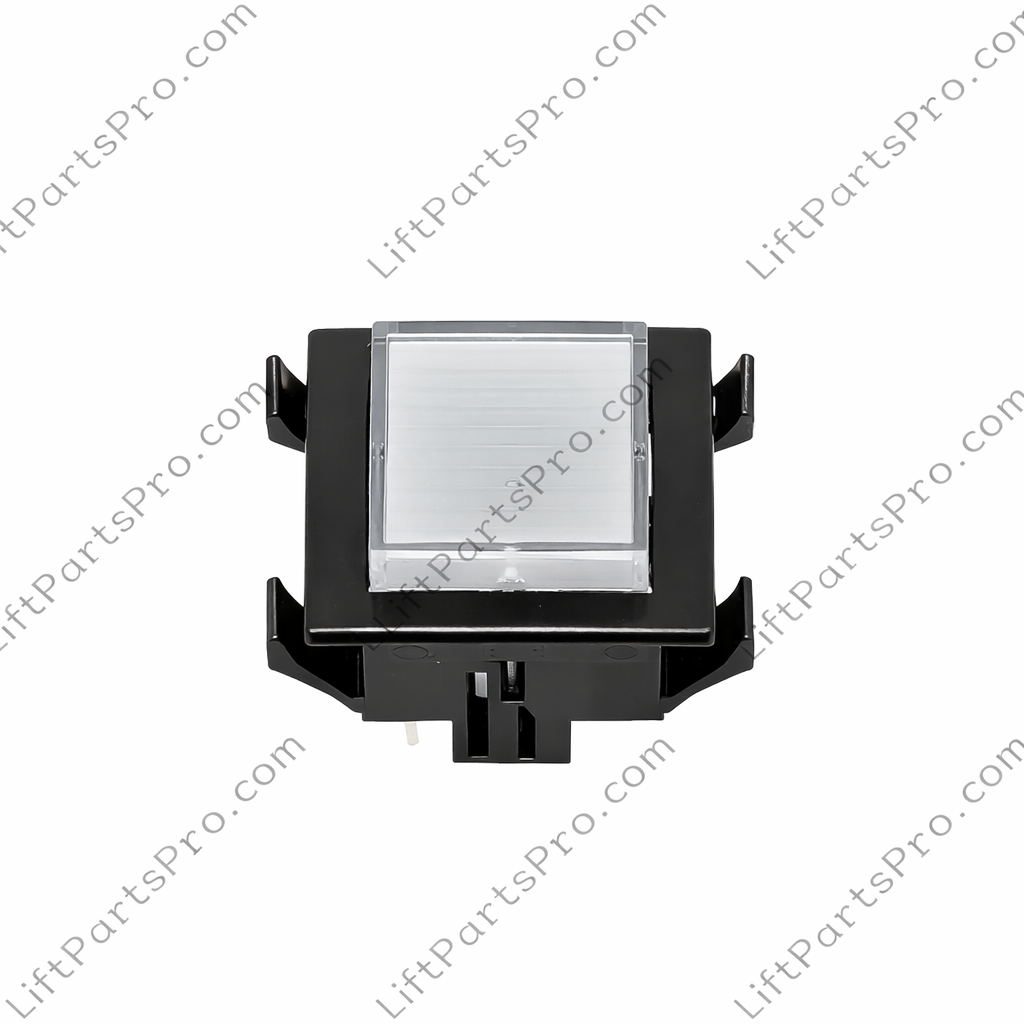

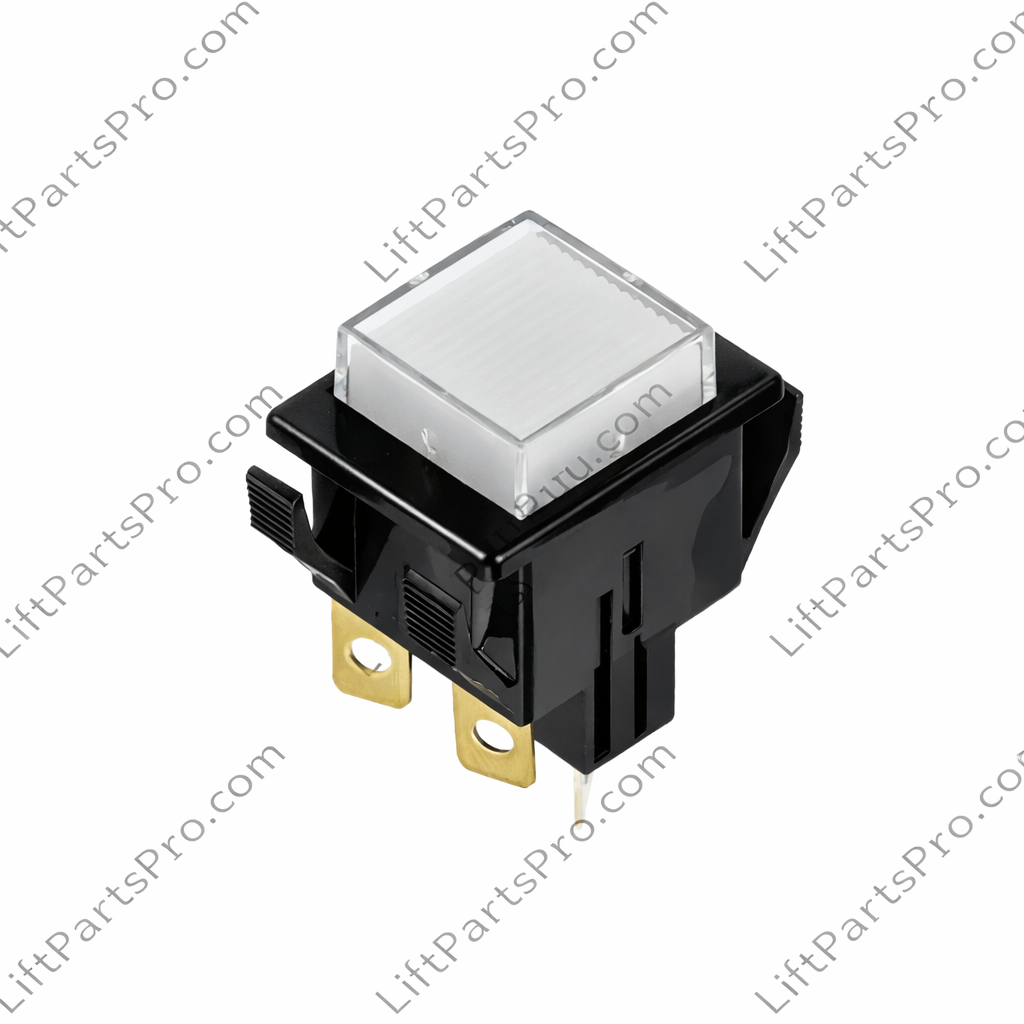

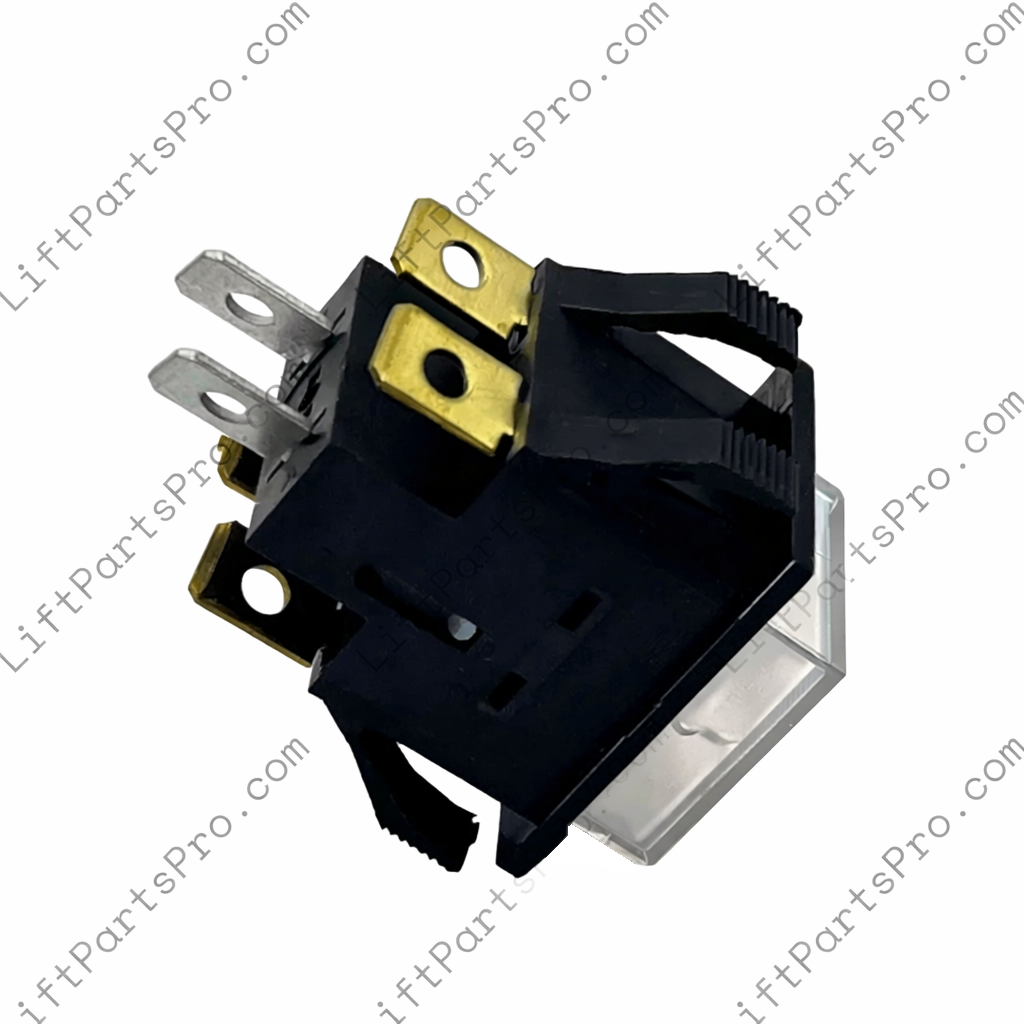

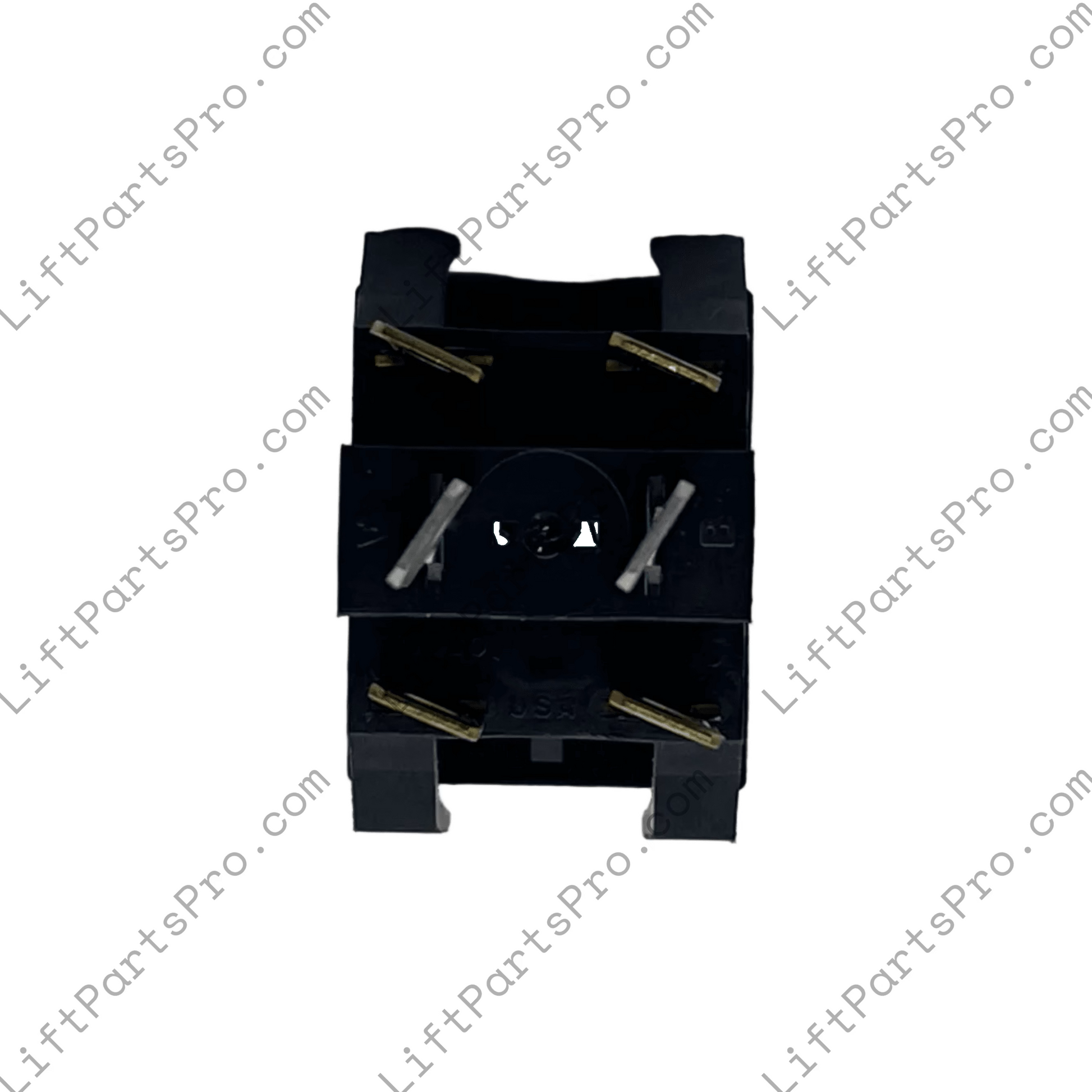

Inclinator Elevette Elevator COP Panel Floor Pushbutton

This pushbutton switch is a suitablet replacement for legacy part number 21304451 used in Inclinator Elevette COP panels. It features a 28V incandescent lamp, double-pole single-throw (DPST) normally open configuration, and a snap-in panel mount design for straightforward integration into existing control panels.

Compared to earlier versions, this replacement utilizes a square (flat) lens cap instead of a beveled style and a gloss black housing rather than a matte finish. Functionality and fit remain consistent, but these visual differences should be considered when installing alongside existing buttons. For uniform appearance across the COP, replacing all buttons is recommended. If only partial replacement is performed, expect a noticeable difference in lens profile and housing finish.

This listing includes the button assembly only. Marked lens inserts are not included. The existing film insert from the original button should be retained and installed into the new unit to preserve floor markings or labeling.

• Voltage: 28V incandescent lamp
• Action: Momentary
• Circuit: DPST, normally open
• Mounting: Snap-in panel mount
• Terminal Type: 1/4" quick-connect
• Lens Color: Clear (transparent)
• Lens Style: Square (flat)
• Housing Color: Black (gloss finish)
• Contact Material: Fine silver, double break
• Electrical Rating: 10A at 125/250 VAC; 10A at 14VDC; 1/4 HP at 125 VAC
• Dielectric Strength: 2000 VAC RMS
• Electrical Life: 25,000 operations
• Mechanical Life: 100,000 operations

For best results and long-term reliability, this component should be installed by qualified personnel familiar with elevator control systems and proper handling of electrical components.
