Bruno & Harmar Emergency Stop Switch - RPL Series

Red push-pull Estop switch with LED illumination, designed for Harmar RPL series lifts. Provides reliable safety function and secure panel mounting.

The LED lamp block can be left out if illumination is not desired.

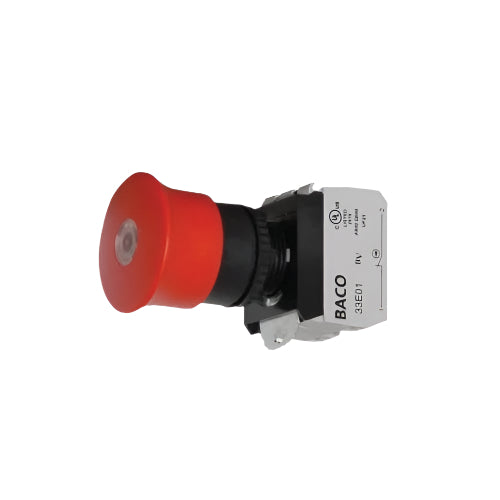

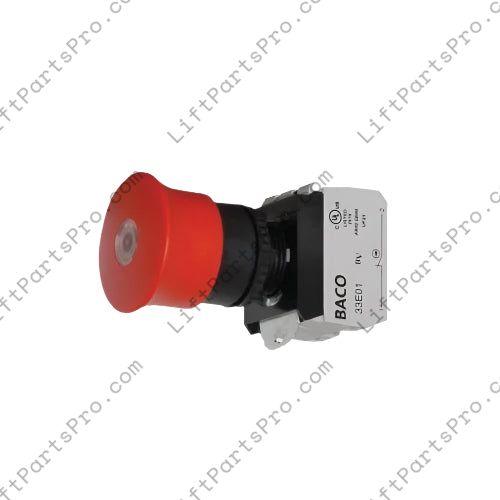

This illuminated E-stop switch features a 40 mm red mushroom head with push-pull reset functionality and is commonly used in Harmar RPL series vertical platform lifts and select Bruno VPLs.
It includes a 12/24V AC/DC LED and is preassembled with a contact block, making it ideal for direct replacement. This variant features a clip-style contact block interface for secure and modular integration.

🔧 Specifications:

• Switch Type: Illuminated emergency stop, push-pull to reset
• Head Style: 40 mm mushroom head, red
• Bezel Color: Black
• Mounting Hole Diameter: 22 mm (standard panel mount)
• Illumination: LED, 12/24V AC/DC
• Contact Configuration: 1 Normally Closed (NC) contact
• Clip Style: Modular 3-clip contact block
• Ingress Protection: IP66 (front panel sealed)
• Reset Action: Pull to reset
• Replaces: 370-00016, 46165, and 46045
• Compliance: ISO 13850 (emergency stop devices), RoHS compliant

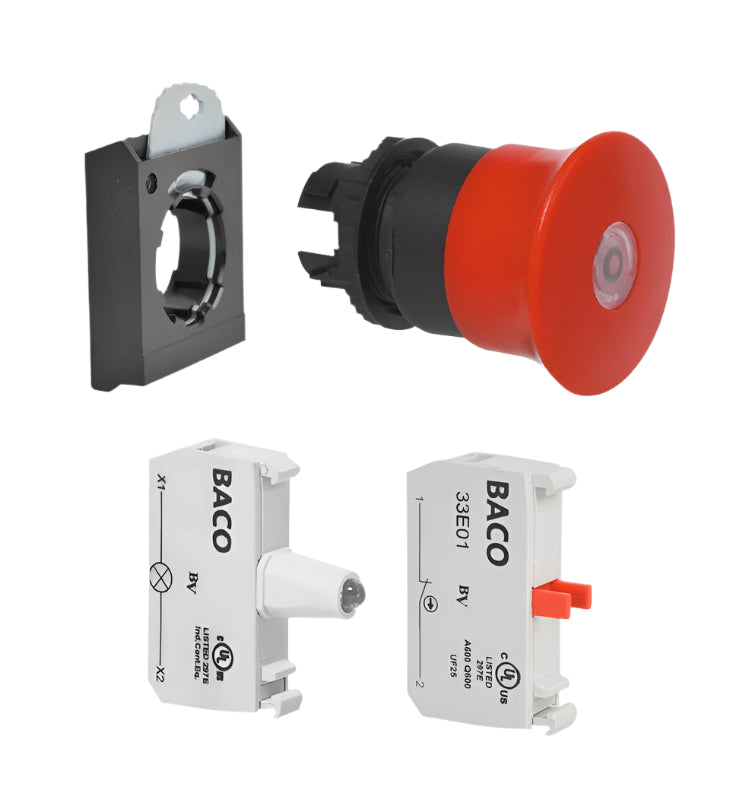

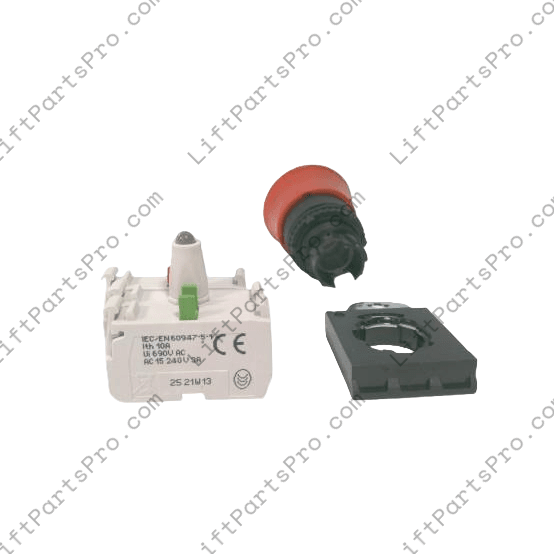

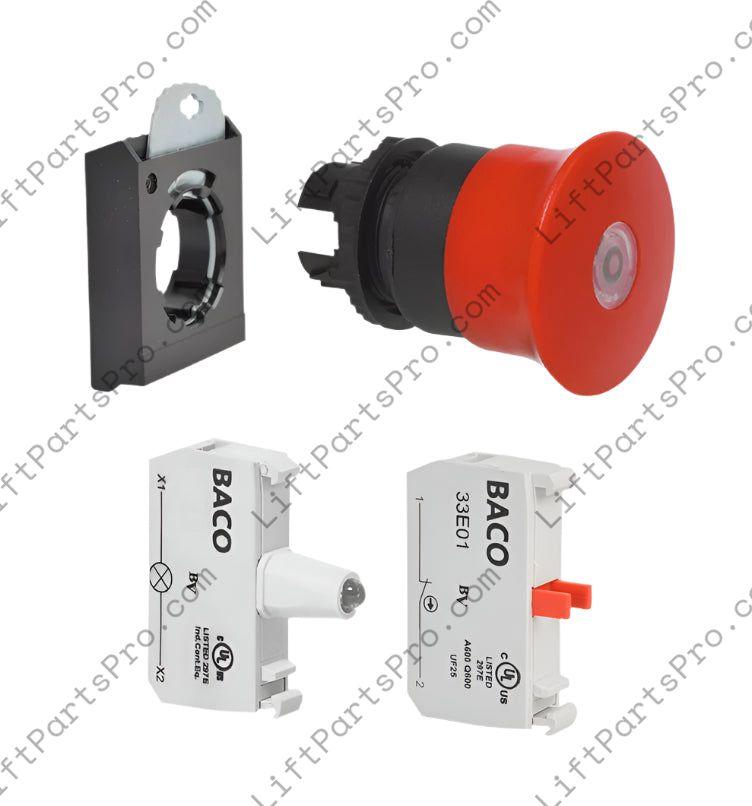

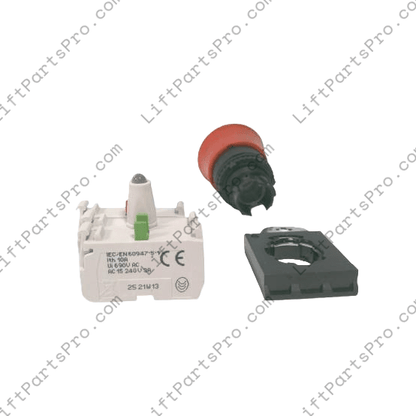

Note: This is a complete switch assembly, including the operator, LED module, and contact block. For OEM match and safety compliance, always verify specifications above for fitment.
