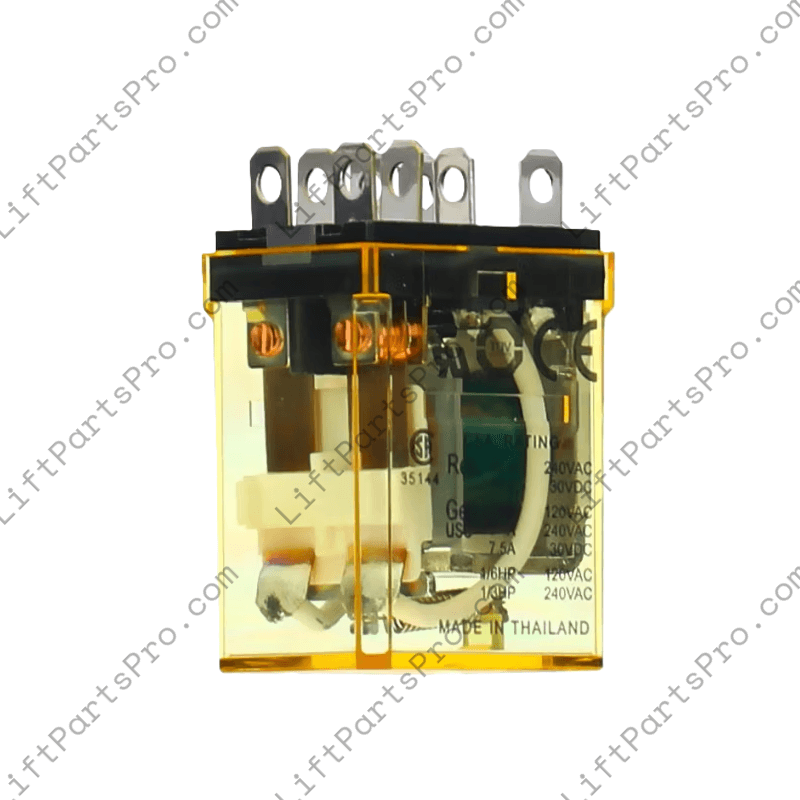

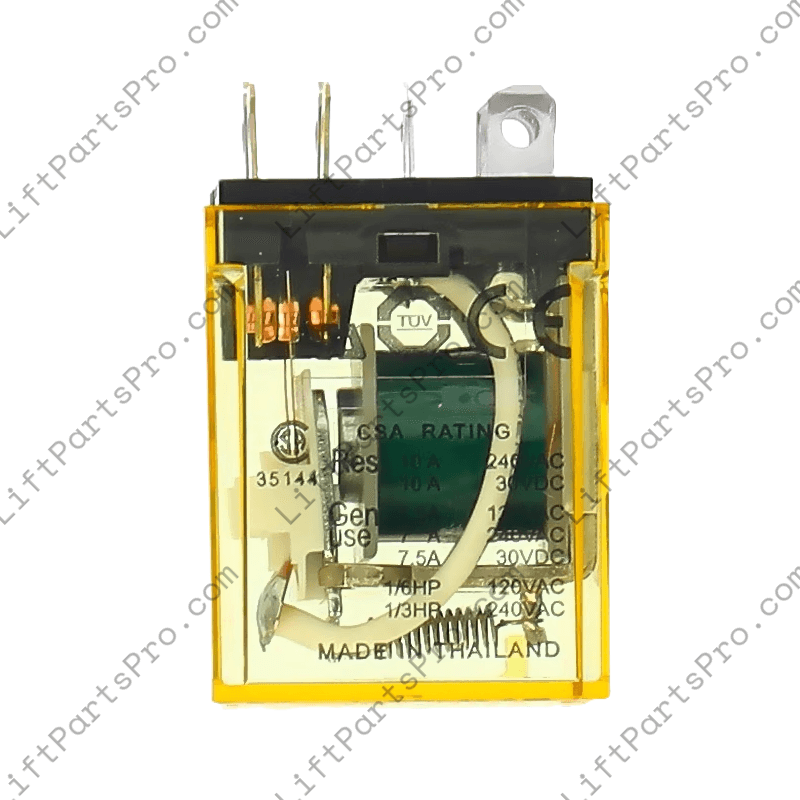

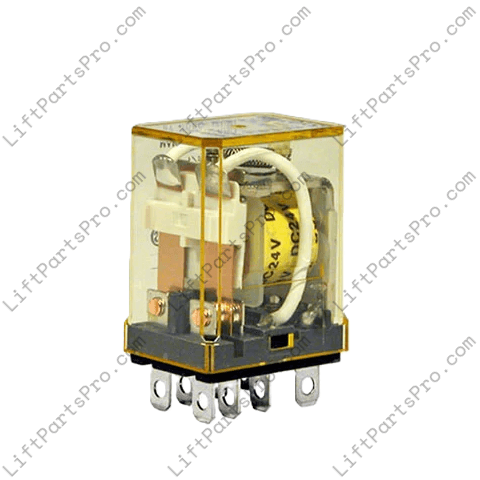

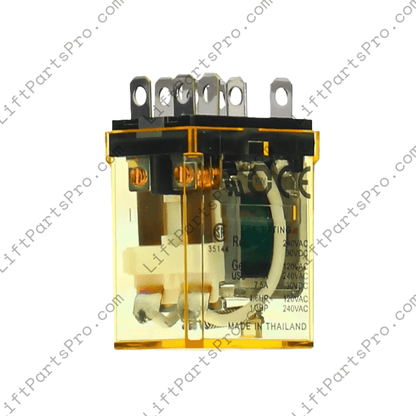

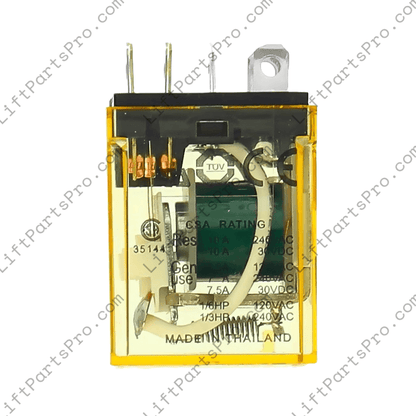

Ice Cube Relay for Dover K10P-4132 Replacement

This compact power relay is designed for switching in control systems and is a direct functional substitute for Dover K10P‑4132 and ThyssenKrupp 9783398.
It features dual form‑C (DPDT) contacts, plug‑in terminals, and a freewheel diode across the coil to help protect circuits from inductive coil surges. Suitable for use in maintenance, repair, and OEM lift applications requiring a 24 VDC coil and 10 A switching capacity.

Specifications

• Coil Voltage: 24 VDC nominal (operating range approx. 19.2–26.4 VDC)
• Contact Configuration: DPDT (2 Form C) dual pole
• Contact Rating: 10 A at rated load
• Contact Material: Silver cadmium oxide (AgCdO)
• Coil Current/Resistance: ~37 mA / ~650 Ω
• Switching Capacity: Up to ~240 VAC or ~30 VDC load

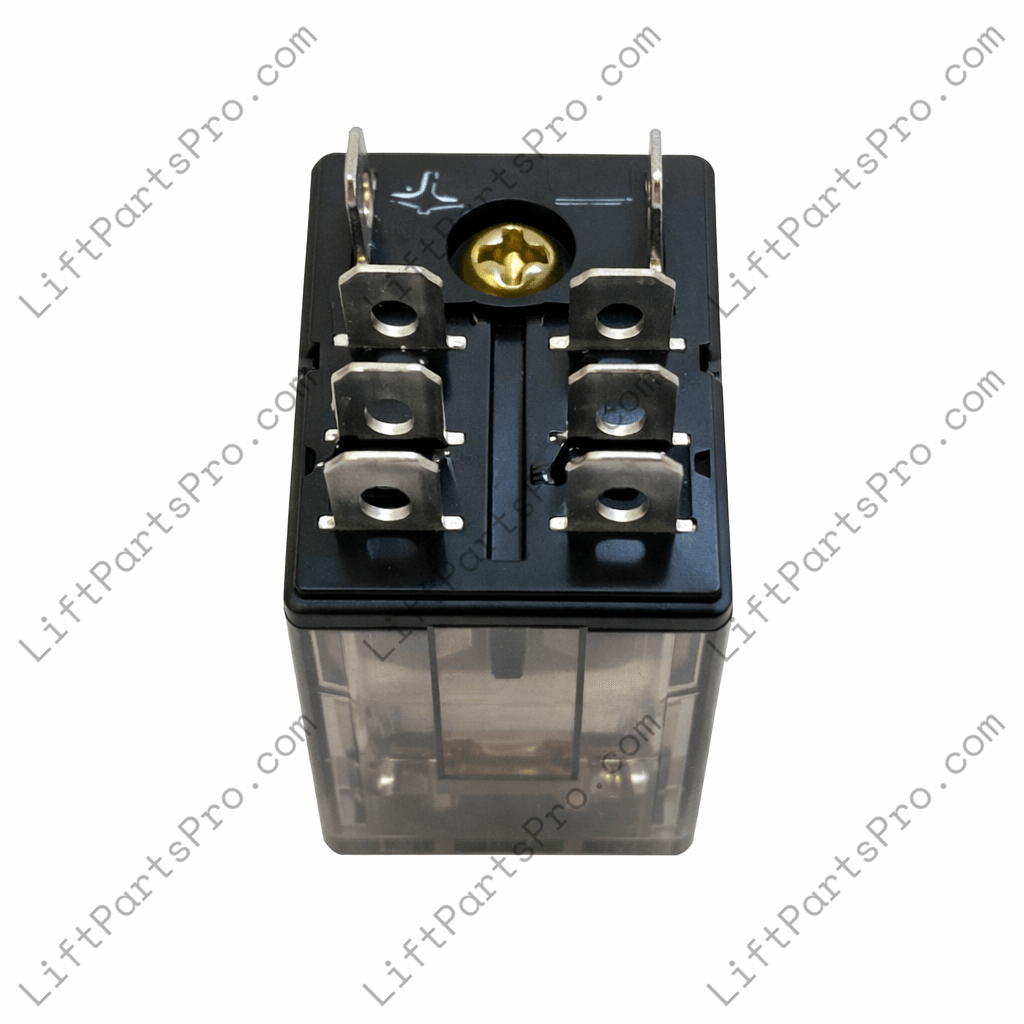

• Termination: Plug‑in quick connect terminals (~0.187″)
• Mounting: Socketable power relay
• Coil Protection: Built‑in diode across coil
• Operating Temp Range: –25 °C to +70 °C
• Approvals: CE, CSA, cURus, TUV

This relay is a dependable choice when replacing or stocking controls for lift systems and industrial automation panels. Always verify fit and function with system diagrams and coil requirements before installation.

Ensure installation and relay handling are completed by qualified personnel familiar with electrical control systems to maintain safety and system integrity.
