Ice Cube Relay, 24V DPDT - Inclinator

Compatible with: Many Inclinator lifts​

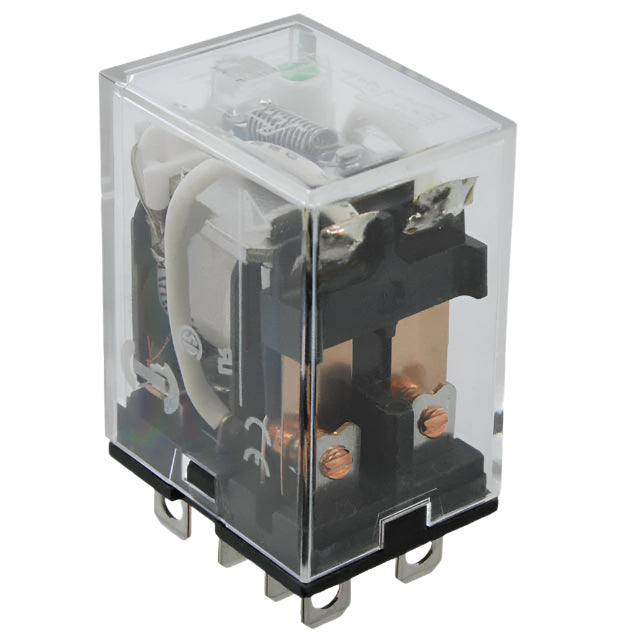

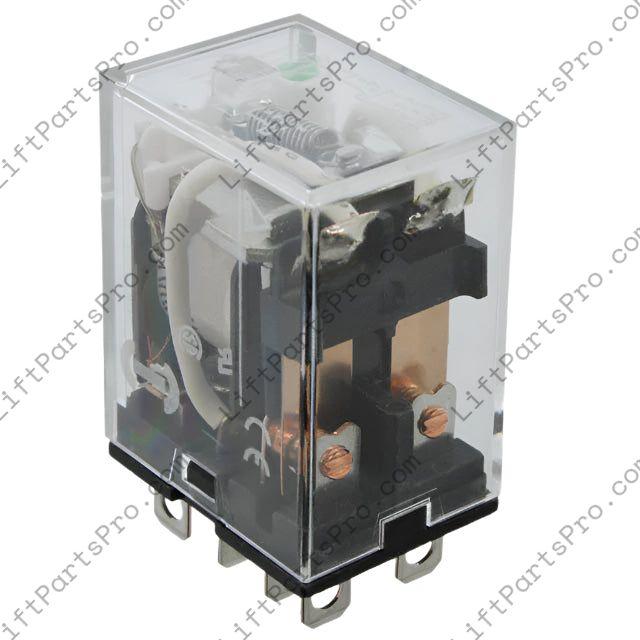

Product Description:

Ensure dependable performance of your lift system with this high-quality general-purpose relay, designed to manage electrical signals efficiently within your equipment.​

Key Features:

• Contact Configuration: DPDT (2 Form C), offering flexible switching capabilities.​

• Coil Voltage: 24 VAC, suitable for standard control voltage requirements.​

• Contact Rating: Capable of handling up to 10 A for resistive loads, ensuring robust performance.​

• Indicator: Equipped with an LED operation indicator for clear visual status.​

• Mounting Style: Designed for socket mounting with plug-in terminals, facilitating easy installation and maintenance.​

Specifications:

• Coil Ratings:

  • 24 VAC 50 Hz at 53.8 mA​
  • 24 VAC 60 Hz at 46 mA​

• Contact Ratings:

  • 10 A at 110 VAC (Resistive load)​
  • 7.5 A at 110 VAC (Inductive load, cosφ = 0.4)​
  • 10 A at 24 VDC (Resistive load)​
  • 5 A at 24 VDC (Inductive load, L/R = 7 ms)​

• Insulation Resistance: Minimum of 100 MΩ at 500 VDC between coil and contacts.​

• Dielectric Strength:

  • 2000 VAC between coil and contacts​
  • 1000 VAC between contacts of the same polarity​
  • 2000 VAC between contacts of different polarity​

• Operating Time: Maximum of 25 ms, ensuring prompt response.​

• Reset Time: Maximum of 25 ms, facilitating quick recovery.​

• Endurance: Mechanical lifespan of at least 50 million operations, supporting long-term use.​

Applications:

This relay is an essential component for maintaining the operational efficiency of your lift system, ensuring reliable control and safety.​

Please note: Installation should be performed by qualified personnel following the manufacturer's guidelines to ensure safety and proper functionality.
