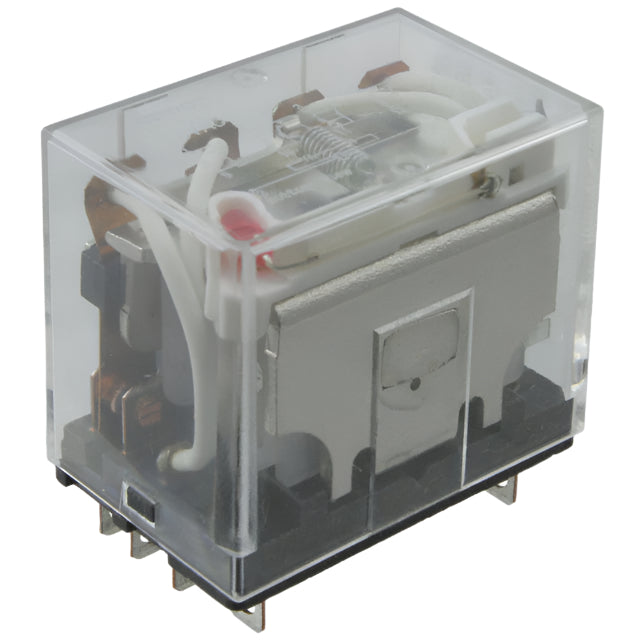

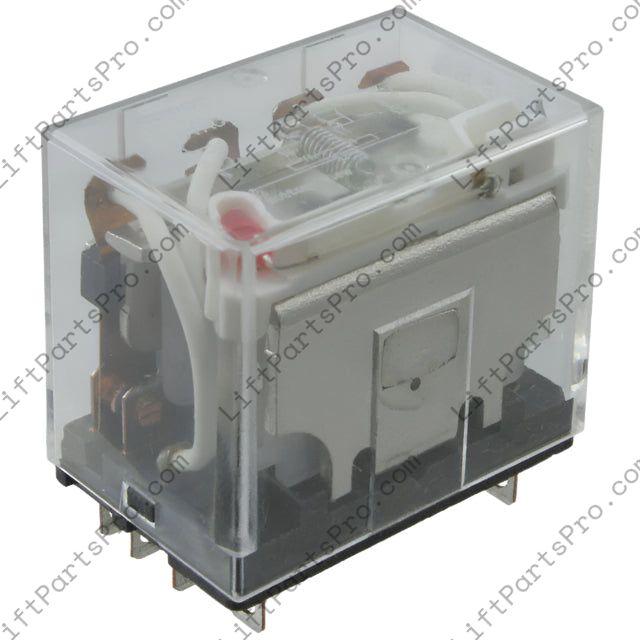

Ice Cube Relay, 24V 4PDT - Inclinator

Compatible with: Many Inclinator lifts

Product Description:

Enhance the reliability of your lift system with this high-quality ice cube relay, designed to manage electrical signals effectively within your equipment.

Key Features:

• Contact Configuration: 4PDT (4 Form C), allowing for versatile switching capabilities.​

• Coil Voltage: 24 VAC, suitable for standard control voltage requirements.​

• Contact Rating: Capable of handling up to 10 A for resistive loads, ensuring robust performance.​

• Indicator: Equipped with an LED operation indicator for clear visual status.​

• Mounting Style: Designed for panel mounting with plug-in terminals, facilitating easy installation and maintenance.​

Specifications:

• Coil Ratings:

  • 24 VAC 50 Hz at 93.6 mA​
  • 24 VAC 60 Hz at 80 mA​

• Contact Ratings:

  • 10 A at 110 VAC (Resistive load)​
  • 7.5 A at 110 VAC (Inductive load, cosφ = 0.4)​
  • 10 A at 24 VDC (Resistive load)​
  • 5 A at 24 VDC (Inductive load, L/R = 7 ms)​

• Insulation Resistance: Minimum of 100 MΩ at 500 VDC between coil and contacts.

• Dielectric Strength:

  • 2000 VAC between coil and contacts​
  • 1000 VAC between contacts of the same polarity​
  • 2000 VAC between contacts of different polarity​

• Operating Time: Maximum of 25 ms, ensuring prompt response.​

• Reset Time: Maximum of 25 ms, facilitating quick recovery.​

• Endurance: Mechanical lifespan of at least 50 million operations, supporting long-term use.​

Applications:

This relay is an essential component for maintaining the operational efficiency of your lift system, ensuring reliable control and safety.

Please note: Installation should be performed by qualified personnel following the manufacturer's guidelines to ensure safety and proper functionality.
