24V hydraulic pump motor; among others, is compatible with Concord PAL and Versa lifts, replacing legacy OEM #103481 from assembly #241799.

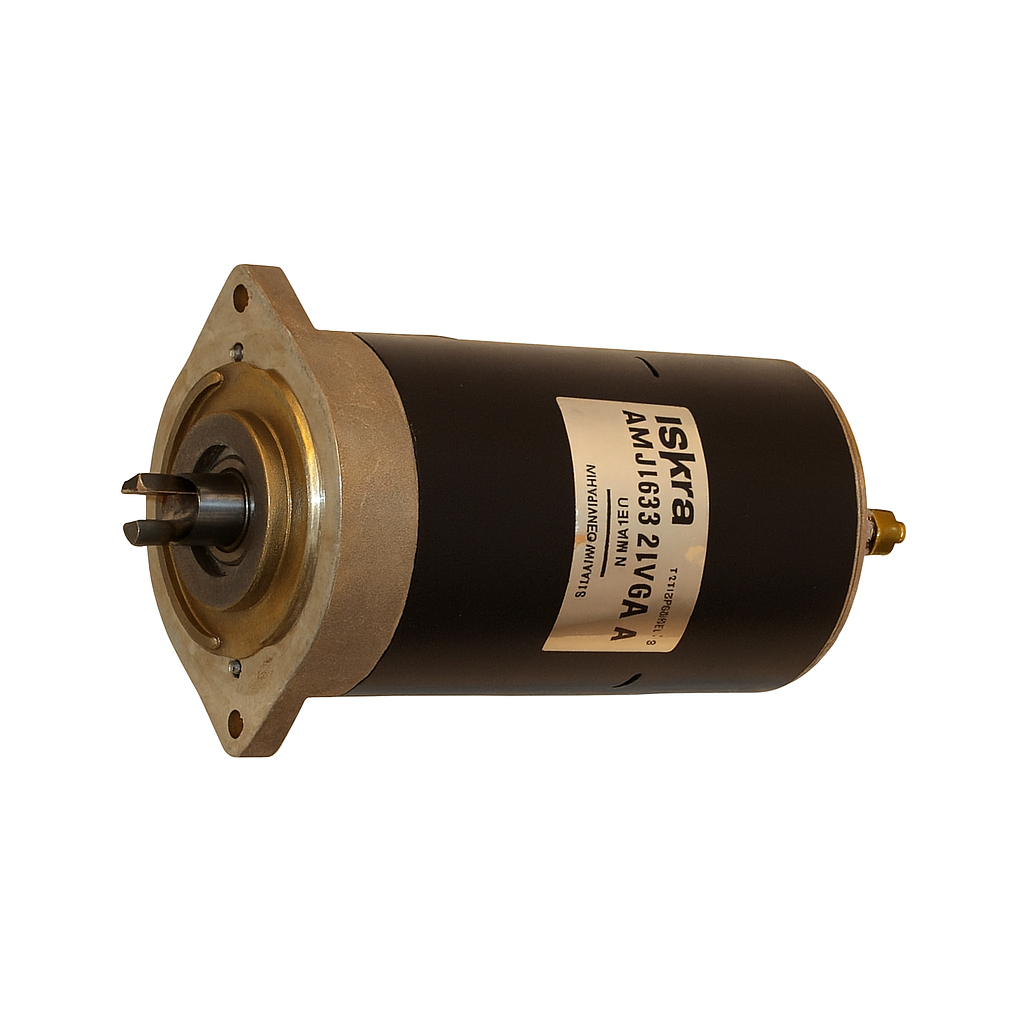

This Iskra 24V hydraulic pump motor offers reliable performance for various accessibility lift systems requiring compact power delivery. With a 0.8 kW power rating and 4500 RPM rotational speed, this motor is a suitable replacement for select Concord PAL and Versa lift models. It features clockwise rotation and is built with a standard flange mount, making installation straightforward in systems with matching parameters. The motor includes insulated ground but lacks thermal protection or external ventilation, aligning with typical sealed lift applications.
- Operating Voltage: 24 V DC
- Power Output: 0.8 kW
- Max Speed: 4500 RPM
- Rotation: Clockwise
- Duty Cycle: S2 (4 min), S3 (10% ED)

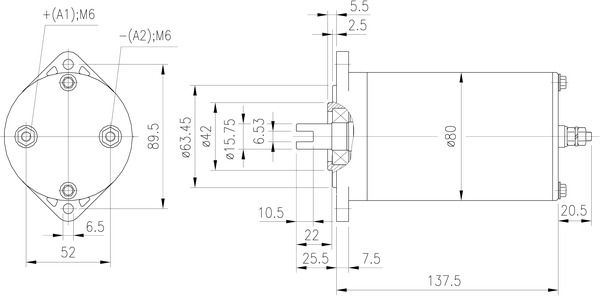

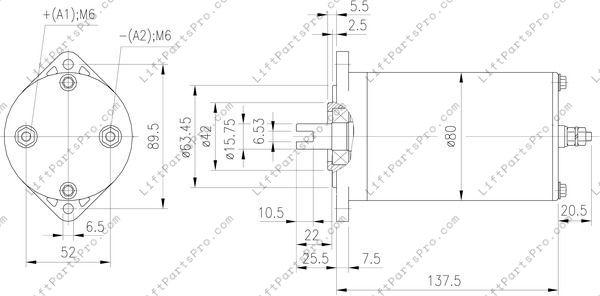

- Mount Type: Standard flange
- Grounding: Insulated
- Weight: 2.6 kg
- Thermo Protection: Not included
- Ventilation: Not included
For continued reliability and user safety, this motor should be installed by qualified lift technicians following proper procedures. Always verify compatibility based on the lift's technical requirements and intended operating environment.
