Hydraulic Pump Assembly for 1999 Access Industries Porch-Lift

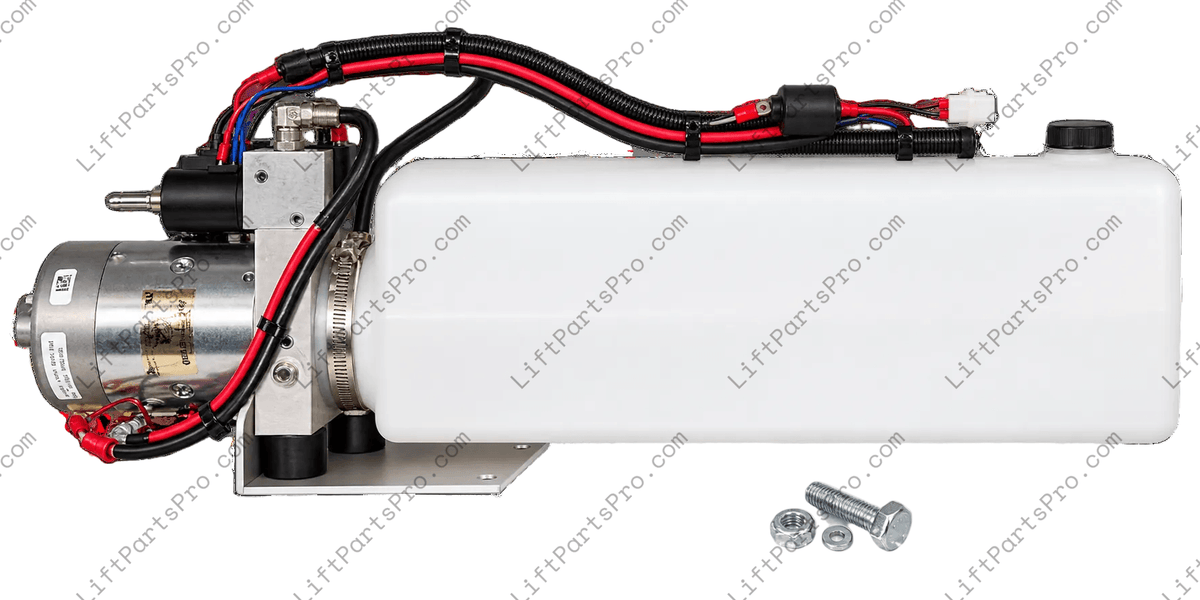

Designed for Access Industries Porch-Lift vertical platform lifts manufactured in 1999, this replacement hydraulic power unit provides the hydraulic pressure required to operate the platform's lifting mechanism. The assembly combines the electric pump motor, hydraulic valve block, oil reservoir, and wiring harness into a complete unit for convenient replacement of the original hydraulic system.

The integrated valve block manages hydraulic fluid flow, while the electric pump generates the pressure needed for platform movement. The oil reservoir stores hydraulic fluid, and the included wiring harness provides electrical connections to the lift's control system.

This assembly is intended for select 1999 Porch-Lift configurations originally equipped with legacy hydraulic pump assembly #H58392. Compatibility depends on the lift's original hydraulic and electrical configuration.

Specifications:

• Product Type: Hydraulic Pump Assembly / Hydraulic Power Unit
• Lift Manufacturer: Access Industries
• Lift Model: Porch-Lift
• Application: Wheelchair Lift / Vertical Platform Lift
• Compatible Manufacturing Year: 1999 (Select Models)
• Replaces Legacy Part Number: H58392
• Motor: Electric Hydraulic Pump Motor
• Valve Assembly: Integrated Hydraulic Valve Block
• Reservoir: Hydraulic Oil Tank
• Electrical Components: Preassembled Wiring Harness with Connectors
• Assembly Configuration: Complete Hydraulic Pump and Reservoir Unit
• Mounting: Integrated Metal Mounting Bracket
• Included Hardware: Mounting Bolt, Nut, and Washer

Proper installation of this hydraulic pump assembly by qualified lift service personnel is essential for reliable operation and continued performance. All replacement components should be installed according to the lift manufacturer's specifications and applicable accessibility equipment safety standards.
