Hydraulic Pressure Gauge for National Wheel-O-Vator & Concord
Hydraulic Pressure Gauge for National Wheel-O-Vator & Concord
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: PG.2000.PSI.KPA
Condition: New
Couldn't load pickup availability
This 2-1/2 inch liquid-filled hydraulic pressure gauge is designed for monitoring hydraulic system pressure in vertical platform lifts, residential elevators, and other hydraulic-powered accessibility equipment.
Commonly found on select Concord and National Wheel-O-Vator (NWOV) lift systems, this gauge is also suitable for a wide range of hydraulic applications where a 0–2000 PSI pressure range is required.
The stainless steel case construction and liquid-filled design help reduce vibration effects and improve readability in demanding operating environments. The dual PSI/kPa scale allows for quick pressure reference during service, inspection, and routine maintenance procedures.

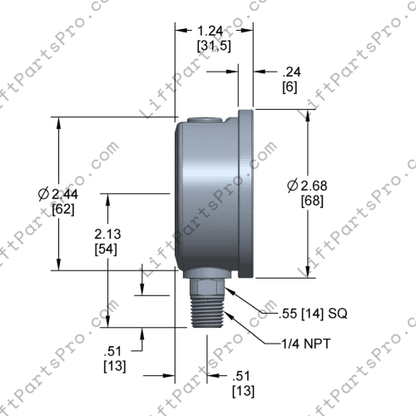

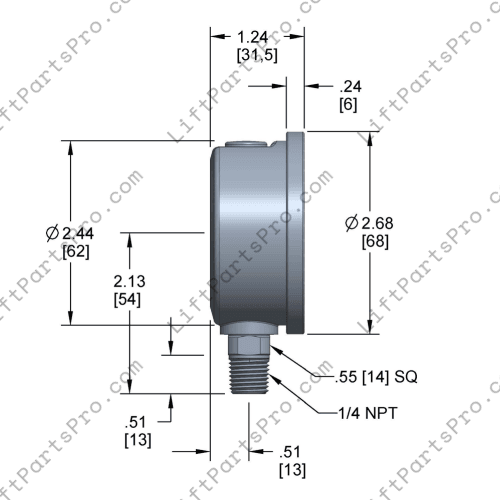

- Dial Size: 2-1/2 inch
- Pressure Range: 0–2000 PSI
- Secondary Scale: kPa
- Connection Size: 1/4 inch NPT
- Connection Location: Bottom mount
- Case Material: Stainless steel
- Wetted Parts: Brass
- Fill Type: Glycerin-filled
- Lens Material: Acrylic
- Application: Hydraulic pressure monitoring
- Compatible With: Select Concord and National Wheel-O-Vator lifts
- Suitable For: Hydraulic lift and accessibility equipment systems
All hydraulic system components should be installed and inspected by qualified personnel familiar with accessibility lift equipment and hydraulic pressure systems. Proper component selection and installation practices help support reliable system performance and long-term operation.
