Hydraulic Door Closer – Compatible with Garaventa and Genesis VPLs

Hydraulic closer for swing gates on platform lifts, like the GEN-HY-US series, available in 3 finishes.

This hydraulic gate cylinder ensures controlled, consistent operation of swing gates on platform lifts such as Garaventa and Genesis GEN-HY-US models. It opens smoothly to 90° and features a non-bounce hydraulic close with adjustable speed and final latching force. Suitable for both indoor and outdoor use, this closer supports reliable performance in accessibility environments. Finish options include stainless steel, white, and black to match a variety of gate applications. If stainless steel construction is required for your installation, please contact us before ordering to confirm availability.

• Adjustable closing speed via tube rotation
• Adjustable latching force with two-hole end plug

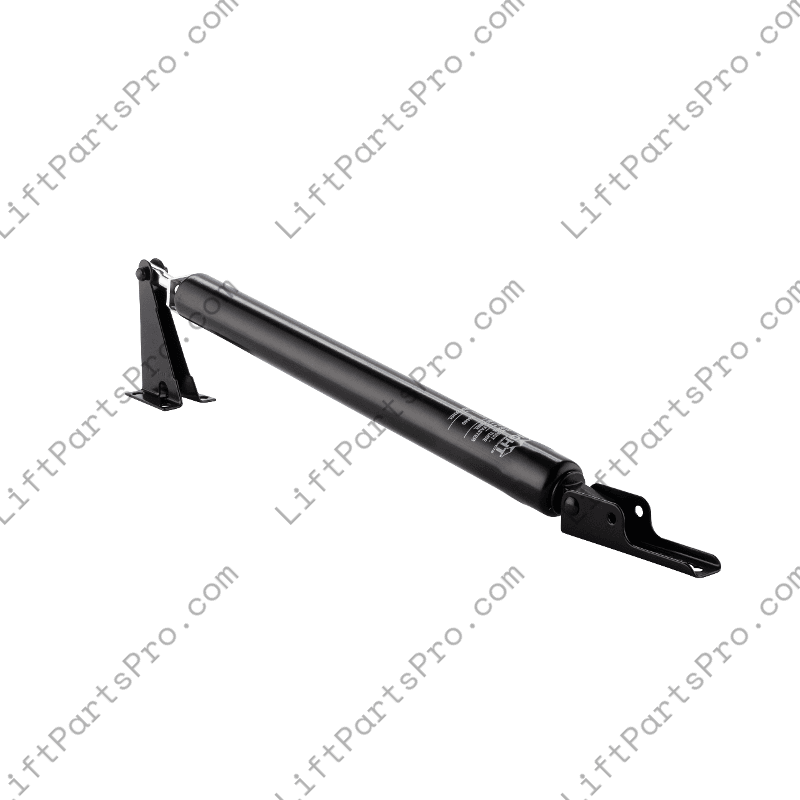

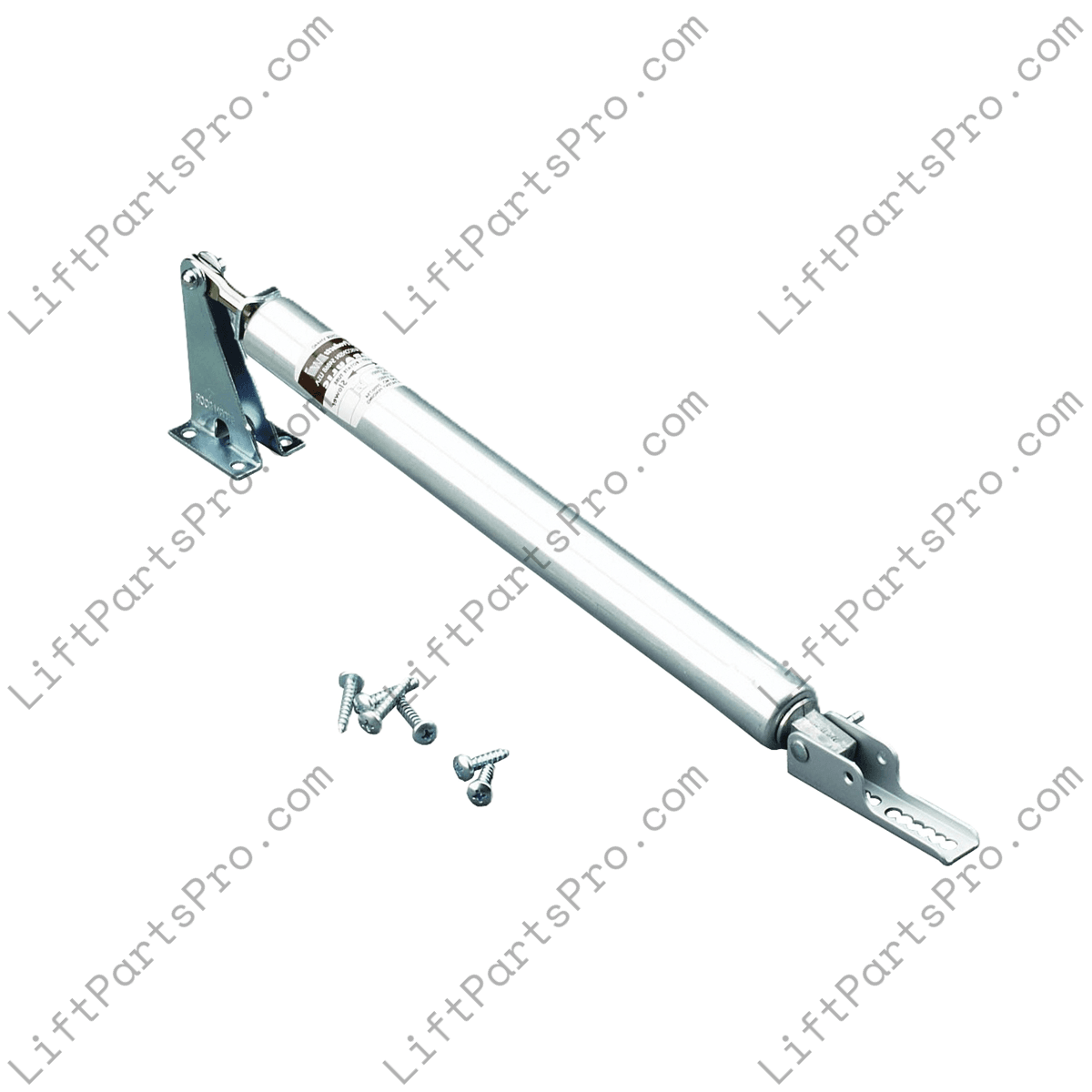

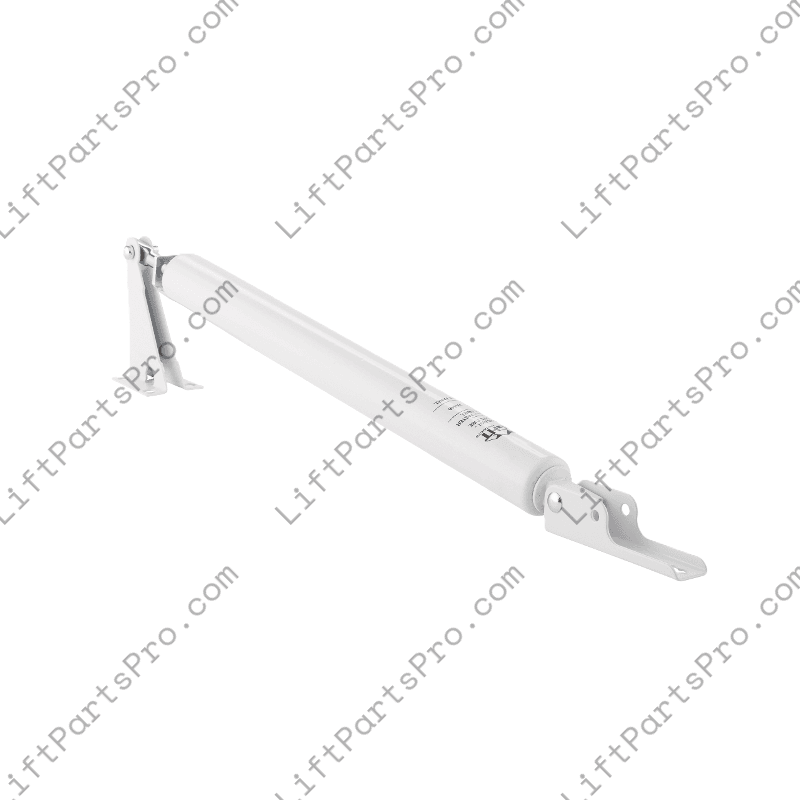

• Available in stainless steel, white, or black finishes

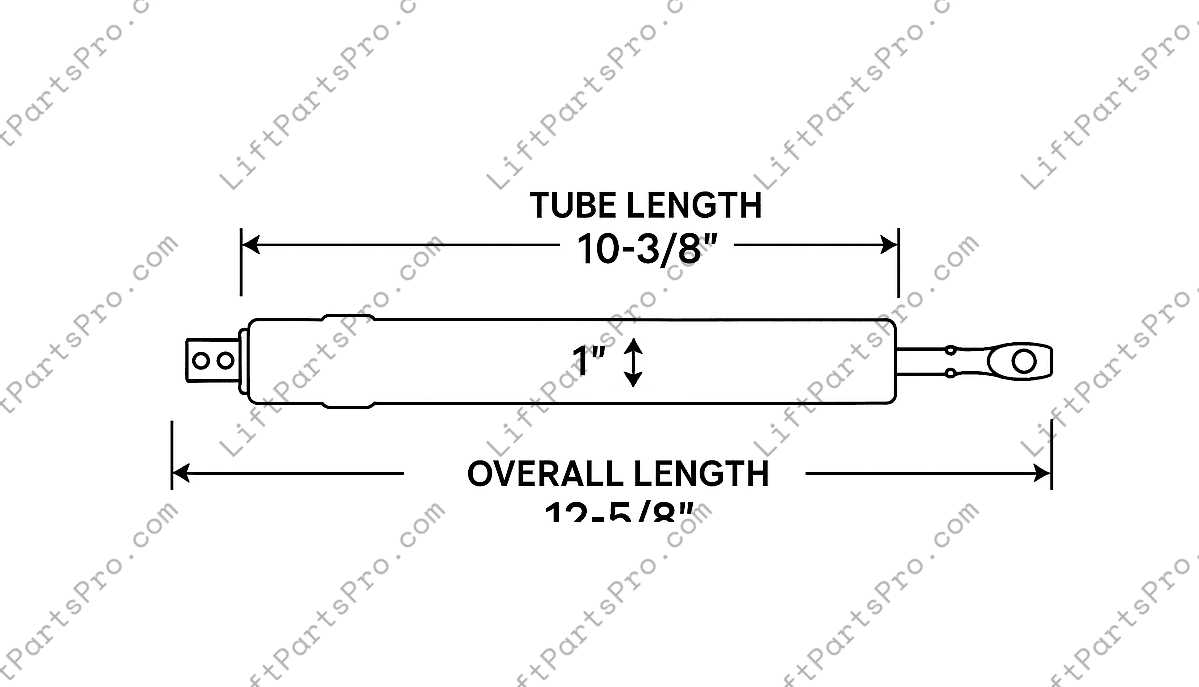

• Tube diameter: 1"
• Tube length: 10-3/8"
• Overall unextended length: 12-5/8"
• Includes mounting hardware

Designed for dependable, low-maintenance gate control, this closer supports safe accessibility lift operation across a range of conditions. For best results, installation should be performed by a qualified professional according to applicable codes and site requirements.
