Honeywell Elevator Interlock - Parallel 6-Wire Configuration

$1,166.90 USD

Sale Special Order

Shipping calculated at checkout.

Hand Left Hand Right Hand

Quantity

🔄 Backorder Available
This item is available for backorder. Estimated lead time is 1 to 2 weeks. We’ll send an update once your order is confirmed and provide tracking when it ships.

SKU: ITL.HNY.6.LH

Condition: New

Compatible Lift Brands:

Symmetry
Savaria
Concord
National Wheel-O-Vator
TK LEV
Any lift system utilizing a parallel interlock with a 6-wire configuration

Product Overview:

This residential door interlock is designed to enhance the safety and reliability of your lift system. It ensures that the door remains securely closed during operation, preventing unauthorized access and potential hazards. When choosing hand, a left-handed interlock will be located at your left side while standing outside the lift looking in.

Key Features:

Durable Construction: Built with a die-cast metal housing treated with zinc phosphate and an electrostatic epoxy coating, ensuring long-lasting performance.
High Pull Force Resistance: Exceeds the residential pull force requirement of 150 lbs by a 10x margin, providing robust door retention.
Universal Solenoid Compatibility: Accepts both 24 Vac and 24 Vdc inputs, offering flexibility in various installation scenarios.
Reliable Performance: Designed to exceed a lifespan of 50,000 cycles, ensuring consistent operation over time.

Specifications:

Mounting Orientation: Vertical mounting required for gravity to operate the de-energized solenoid plunger.

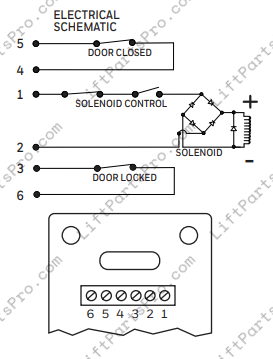

Electrical Connection: Equipped with a terminal strip for straightforward wiring.
Operating Temperature Range: 4 °C to 38 °C [40 °F to 100 °F].
Storage Temperature Range: -40 °C to 60 °C [-40 °F to 140 °F].

Important Installation Considerations:

If you are replacing a 6-wire Honeywell lock, this serves as a direct replacement. However, if your existing system utilizes a different configuration, this interlock can still be a viable solution. Please be aware that there may be wiring differences, alignment modifications, and other job-specific challenges that will require expertise in carpentry, construction, and electrical skills. It is highly recommended to consult with a qualified professional to ensure proper installation and functionality.

Disclaimer:

This product is intended for use by trained professionals. Improper installation may result in malfunction or safety hazards. Always adhere to local regulations and standards when installing or replacing lift components.
