Harmar Wheelchair Lift Motor Pulley 5/8" Bore 1-3/4" OD

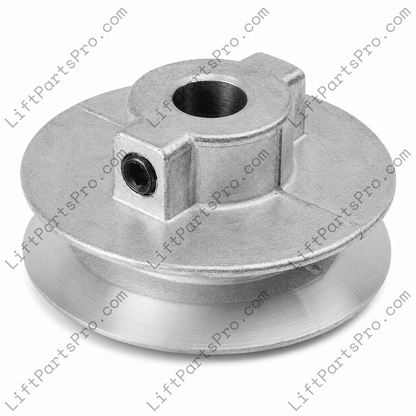

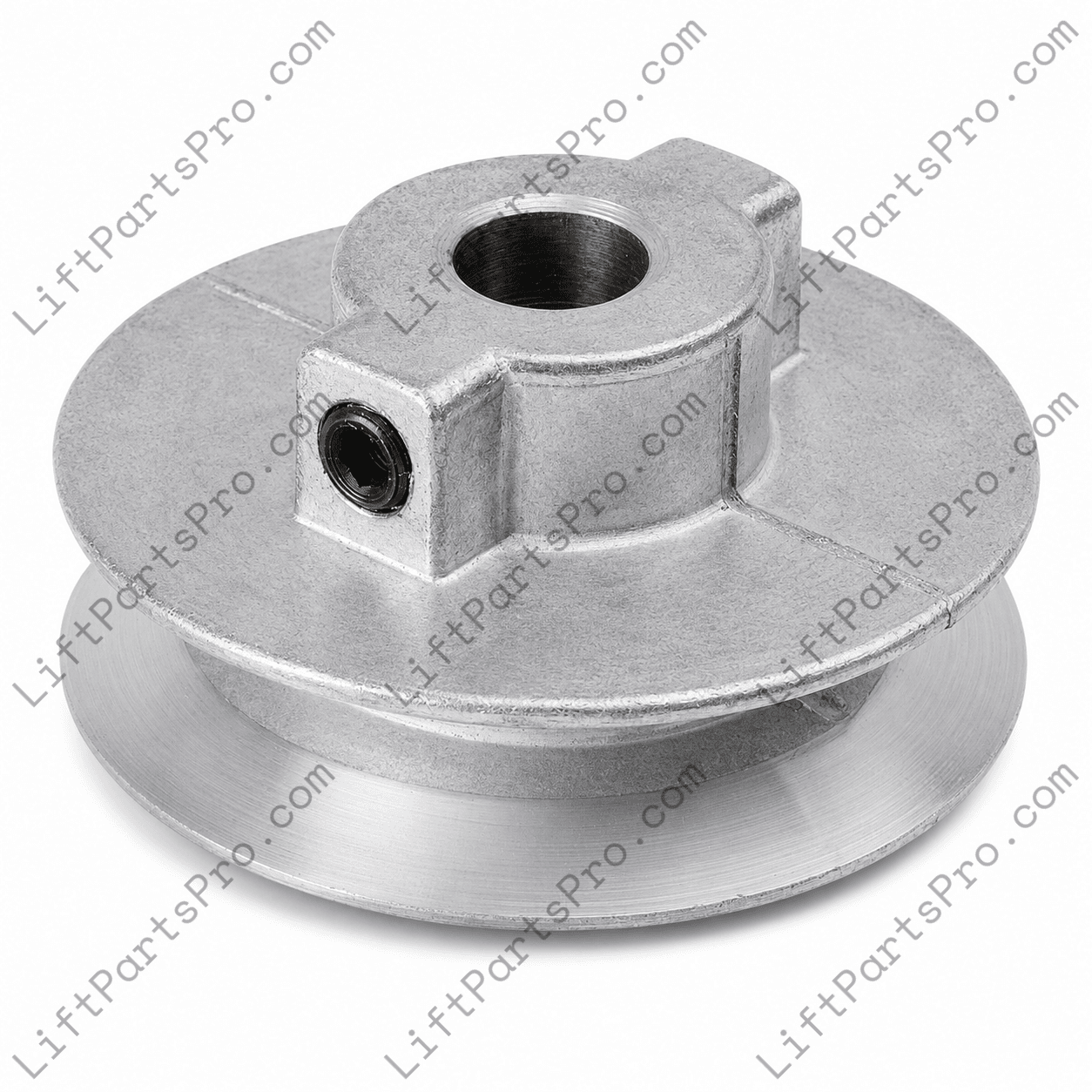

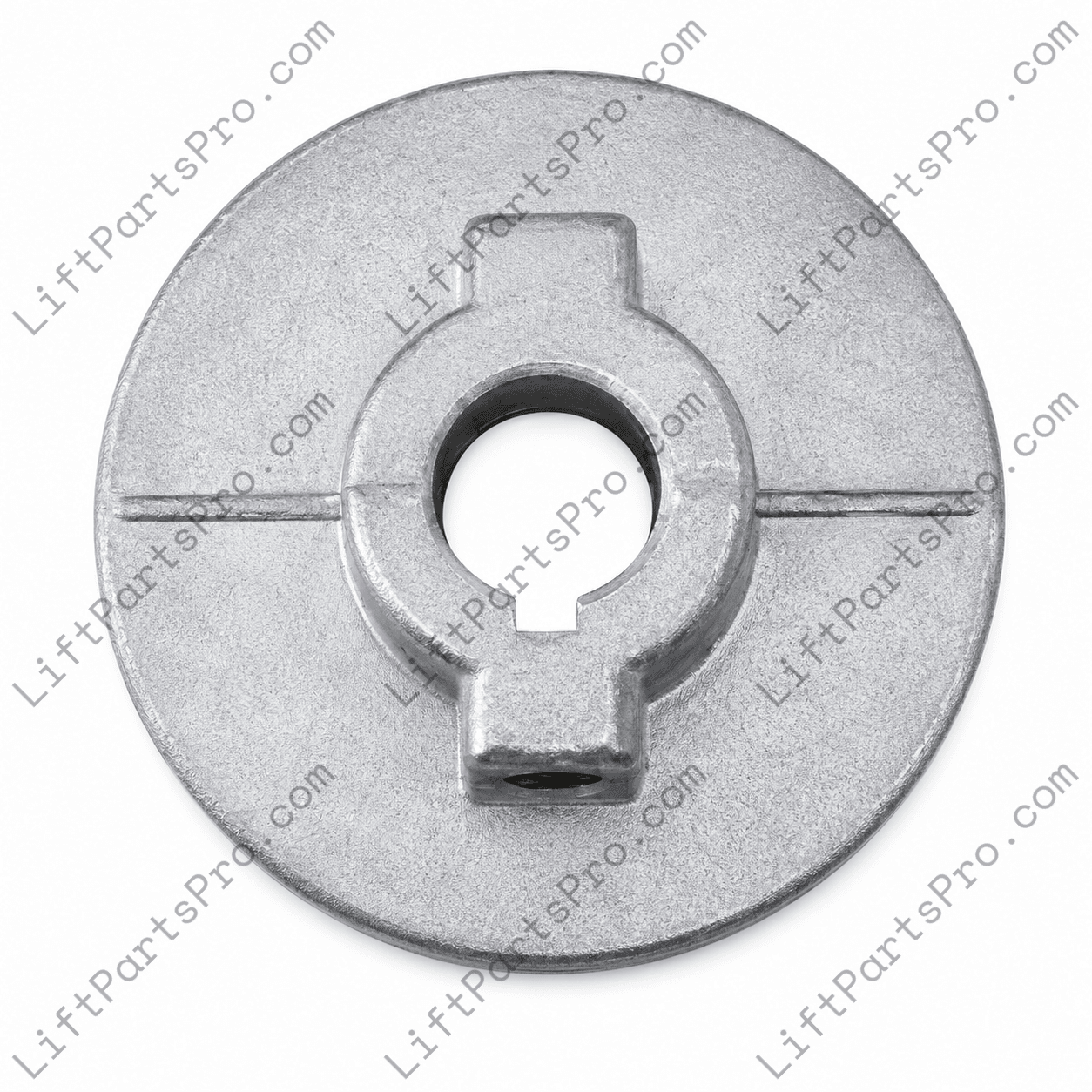

This V-groove motor pulley is the replacement component for the Harmar Wheelchair Lift Motor #140-00101 (110ZYT37/H1). Its 5/8-inch bore fits the corresponding motor shaft, while the V-groove profile accommodates the specified drive belt.

Designed as a direct replacement for the pulley component of the applicable Harmar motor assembly, this pulley allows the motor and related components to remain in service when only the pulley requires replacement. Verify the existing motor assembly, shaft diameter, pulley dimensions, and belt configuration before installation.

• Pulley type: V-groove motor pulley
• Outside diameter: 1-3/4"
• Pitch diameter: 1-1/2"
• Bore diameter: 5/8"
• Belt compatibility: 4L V-belt
• Nominal belt size: 1/2" wide x 11/32" thick
• Application: Harmar wheelchair lift motor assembly
• Compatible motor reference: #140-00101 (110ZYT37/H1)

Accessibility lift components should be installed and inspected by qualified personnel in accordance with the equipment manufacturer's requirements. Proper component fit, installation, and system inspection help ensure reliable operation of the completed lift assembly.
