Handicare
Handicare Battery Pair
Handicare Battery Pair
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: BTR.HC.26A
Condition: New
Couldn't load pickup availability
Compatible with Handicare 1000 and 1100 stairlift models.

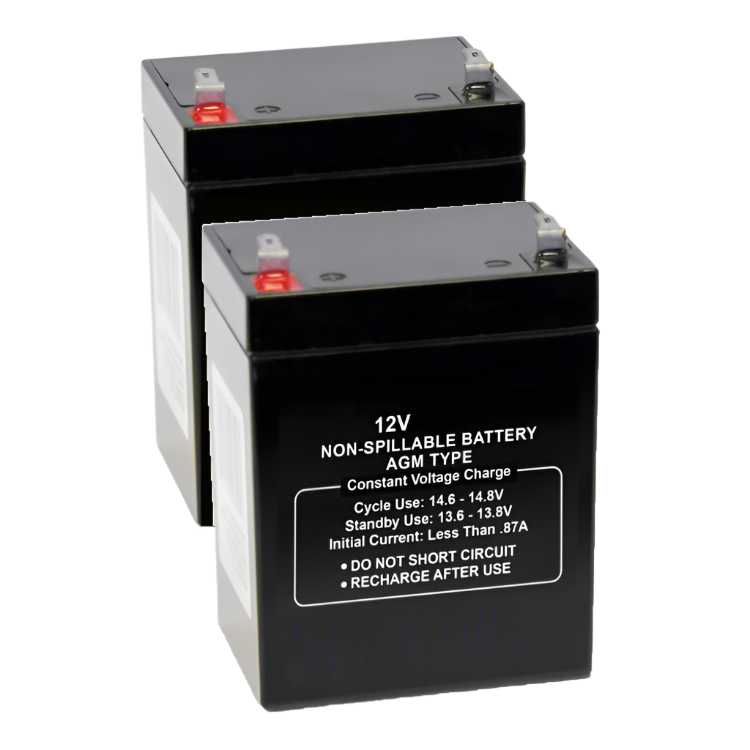

Pair of 12 volt 2.6Ah sealed lead-acid batteries designed for Handicare 1000 and 1100 stair lifts, ensuring dependable power for consistent stairway lift operation.
These maintenance-free SLA batteries utilize Absorbent Glass Mat (AGM) technology, offering reliable performance in stairway lift systems. They fit securely into the existing battery compartments of most Handicare 1000 and 1100 units, maintaining smooth lift function during daily use.
Specifications (per battery):
- Voltage: 12V
- Capacity: 2.6Ah (20HR rate)
- Terminal Type: F1 (0.187")
- Dimensions:
- Length: 70mm (2.76")
- Width: 48mm (1.89")
- Height: 98mm (3.86")
- Total Height: 104mm (4.09")
- Weight: 0.85 kg (1.87 lbs)
- Maximum Discharge Current: 39A (5 sec)
- Internal Resistance: Approx. 55mΩ (fully charged at 25°C)
- Operating Temperature Range:
- Discharge: -15°C to 50°C (5°F to 122°F)
- Charge: -10°C to 50°C (14°F to 122°F)
- Storage: -20°C to 50°C (-4°F to 122°F)
- Float Charging Voltage (25°C): 13.60 to 13.80V
- Cyclic Charging Voltage (25°C): 14.50 to 14.90V
- Maximum Charging Current: 0.78A
- Terminal Material: Copper
- Designed Floating Life: 10 Years
Proper polarity connection and battery compartment fitment should be verified before installation.
