Hall Effect Switch - Magnetic Reed Switch - NWOV, Dover, Independence, Etc.

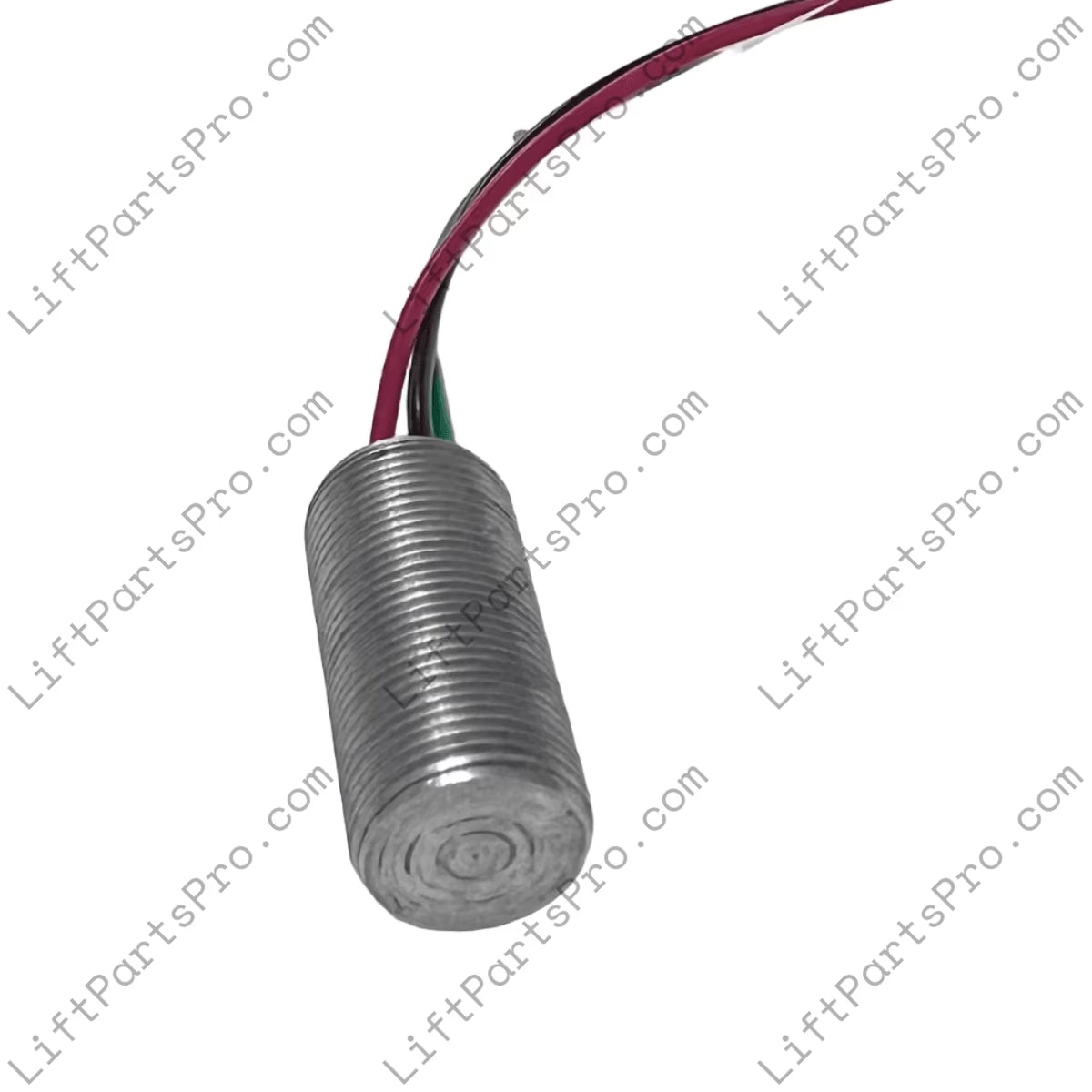

This mag switch is a high-precision magnetic switch designed for elevator and lift systems. Compatible with National Wheel-O-Vator (most commonly the Destiny model), Independence, Dover, and various other brands. This unipolar south pole magnet switch ensures accurate position sensing and reliable operation in demanding environments.

Product Features & Specifications:

• Switch Type: Unipolar Hall Effect (South Pole Magnet)
• Max Operate Gauss: 450
• Min Release Gauss: 120
• Operating Voltage: 6 - 24 VDC
• Ripple: <10%
• No Load Current: <10mA
• Max Load Current: 20mA
• Leakage Current: <0.01mA
• Voltage Drop: <1.5V
• Switching Frequency: 2 KHz
• Response Time: 0.1ms/0.1ms
• Switching Hysteresis: <15% (Sr)
• Repeat Accuracy: <3% (Sr)
• Enclosure Rating: IP67 (Dust & Water Resistant)
• Operating Temperature: -25°C to +70°C
• Temperature Drift: <10% (Sr)
• Protection: None

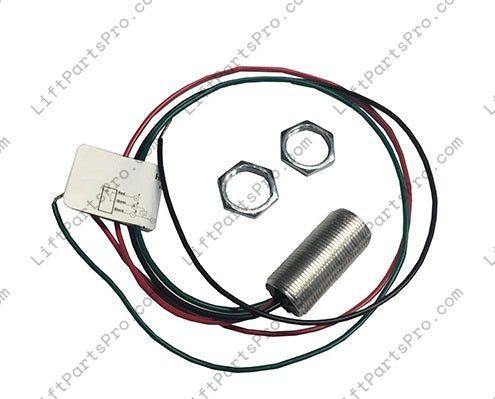

• Connection Type: 3-wire, 12-inch flying leads

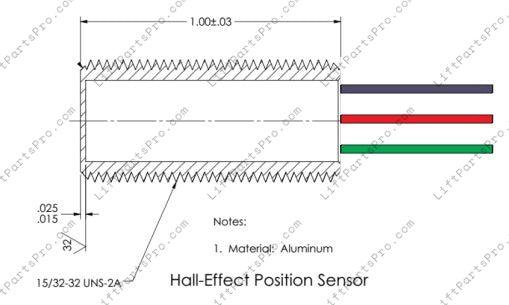

• Material (Tube/Face): Aluminum
• Cable Material: PVC

This hall switch is ideal for elevator applications, providing accurate and consistent performance for position detection and system control.

⚠ Note: Professional installation is recommended.
