Hall Call Position Indicator (PI) Board for ThyssenKrupp LEV Elevators

Direct replacement circuit board for legacy ThyssenKrupp LEV Homelift hall call PI stations—drop-in compatible with original 6300MX1 units.

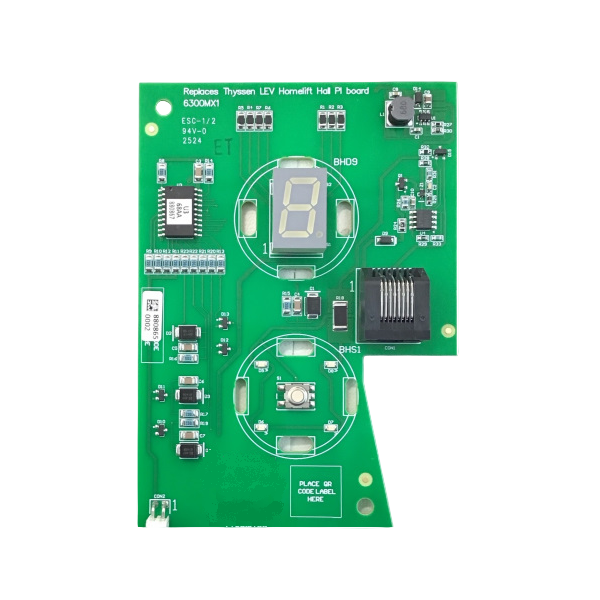

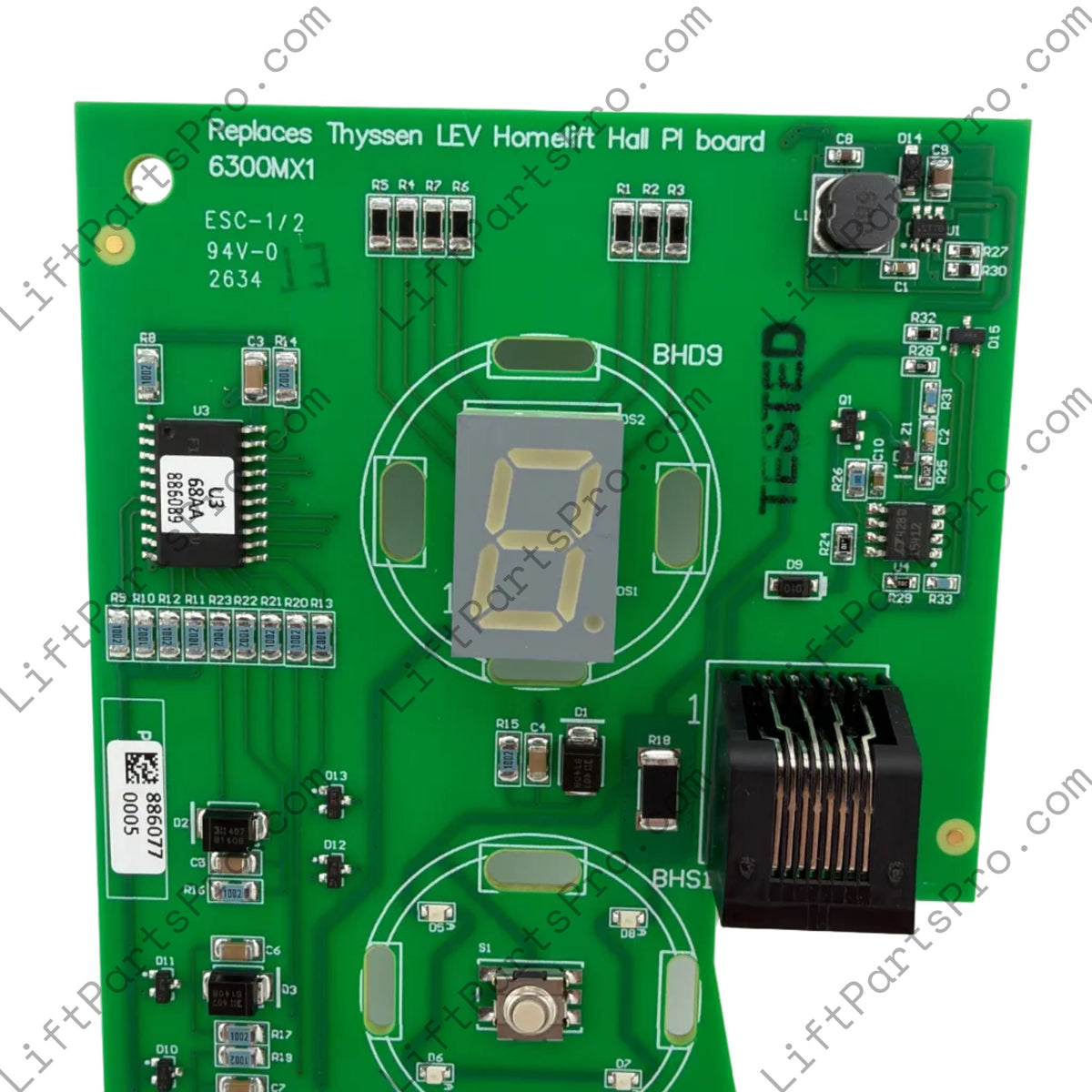

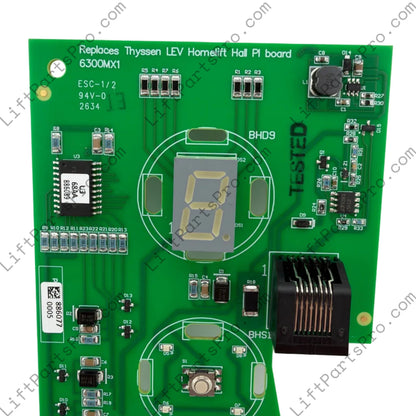

This hall position indicator board is designed as a seamless replacement for aging or failing hall call PI boards in ThyssenKrupp LEV residential elevator systems. It features a single-digit 7-segment LED display for floor indication and a built-in tactile push button to replicate original hall call functions. Engineered for plug-and-play installation, this circuit board mounts directly in place of the original without rewiring or modification, ensuring minimal system downtime. Built on durable 94V-0 flame-retardant FR-4 material and populated with robust surface-mount components, it offers long-term reliability in residential elevator environments.

• Compatible with ThyssenKrupp LEV Homelift PI hall call systems
• Drop-in replacement for legacy 6300MX1 circuit boards
• Integrated 7-segment LED display for floor indication
• Includes tactile call button with associated circuit logic
• IDC-style multi-pin connector ensures plug-and-play functionality
• Flame-retardant 94V-0 FR-4 PCB with precision SMT assembly
• Standard mounting hole layout for quick installation

For continued safe and reliable elevator operation, always have parts like this installed by qualified elevator technicians. Proper installation helps ensure long-term functionality and compliance with residential elevator codes.
