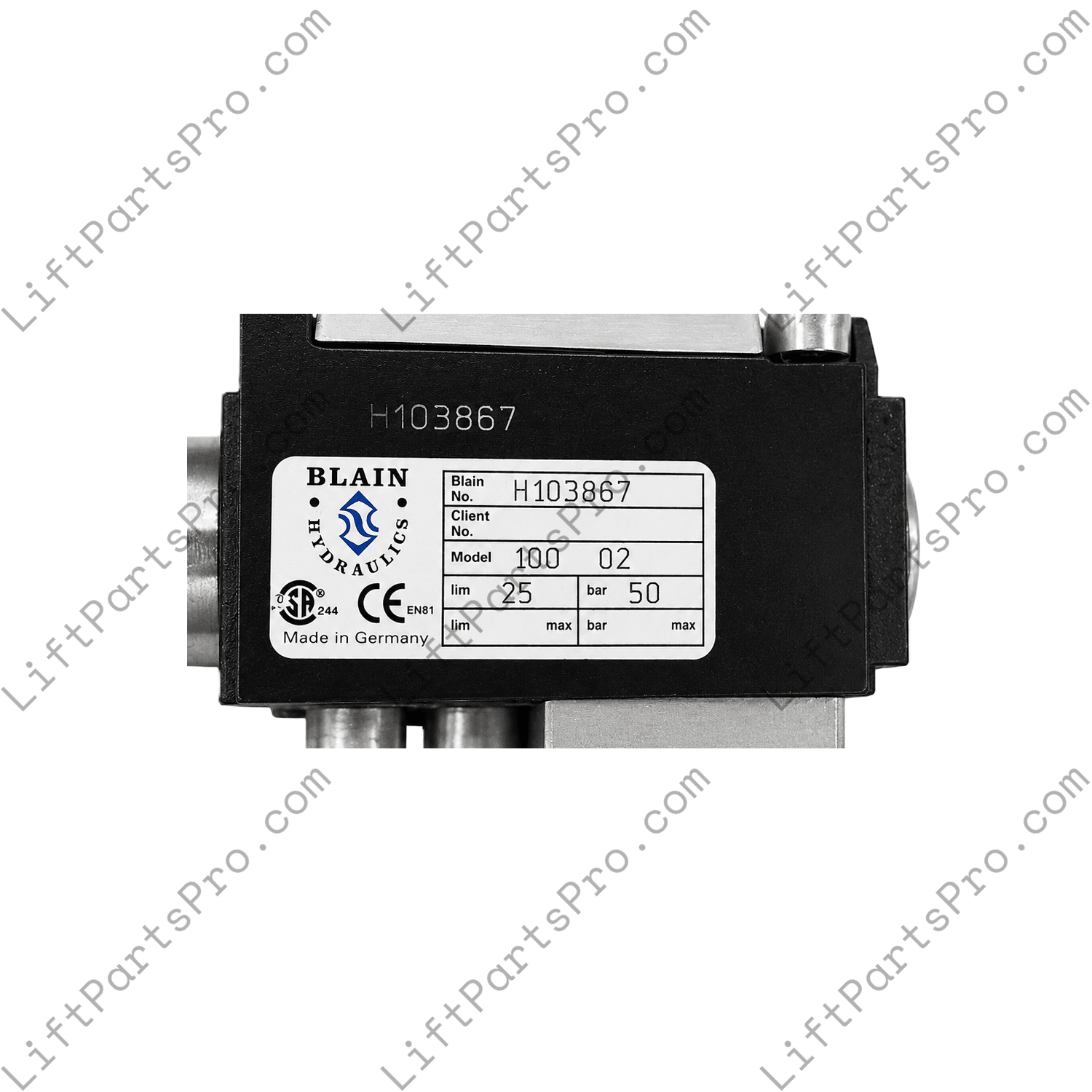

H103867 Blain 3/4" Hydraulic Elevator Control Valve EV100

This hydraulic elevator control valve is a direct replacement for legacy part number H103867. The EV100 configuration provides adjustable up and down travel control, including acceleration, deceleration, levelling speed, and stopping functions to support smooth ride quality and precise floor leveling.

Engineered for hydraulic elevator applications, this valve incorporates pressure-compensated pilot control and temperature compensation to help maintain consistent operation across varying load and oil temperature conditions. Additional features include integrated filtration, hardened internal wear surfaces, manual lowering capability, and continuous-duty solenoid operation.

Suitable for modernization projects, repairs, and replacement of worn or obsolete hydraulic elevator control valves where the original system specifications call for an H103867-equivalent valve.

• 3/4" hydraulic elevator control valve configuration
• Alternative replacement for legacy part number H103867
• EV100-style control valve design
• Flow range: 10–125 L/min (2–33 US GPM)
• Operating pressure range: 8–100 bar (116–1450 PSI)
• Pressure drop (P–Z): 6 bar (87 PSI) at 125 L/min
• Burst pressure: 575 bar (8,339 PSI)
• Weight: approximately 5 kg (11 lb)
• Oil viscosity range: 25–60 cSt at 40°C (104°F)
• Operating oil temperature range: 10°C to 60°C (50°F to 140°F)
• Maximum oil temperature: 70°C (158°F)
• Ambient temperature range: 0°C to 70°C (32°F to 158°F)
• Continuous-duty solenoid design
• Self-closing manual lowering feature
• Integrated pilot and main line filtration
• Pressure-compensated and temperature-compensated operation
• IP68 insulation class for AC and DC coils

For safe and reliable elevator operation, hydraulic control valves should be installed and serviced only by qualified elevator personnel. Proper installation, adjustment, and system verification help ensure the valve performs as intended within the equipment manufacturer's operating requirements.
