Guide Shoe Insert for 5/8" Rail – EECO Advantage Elevators

UHMW polyurethane replacement guide insert for 5/8" rail; durable replacement rail gib for EECO Advantage and compatible systems.

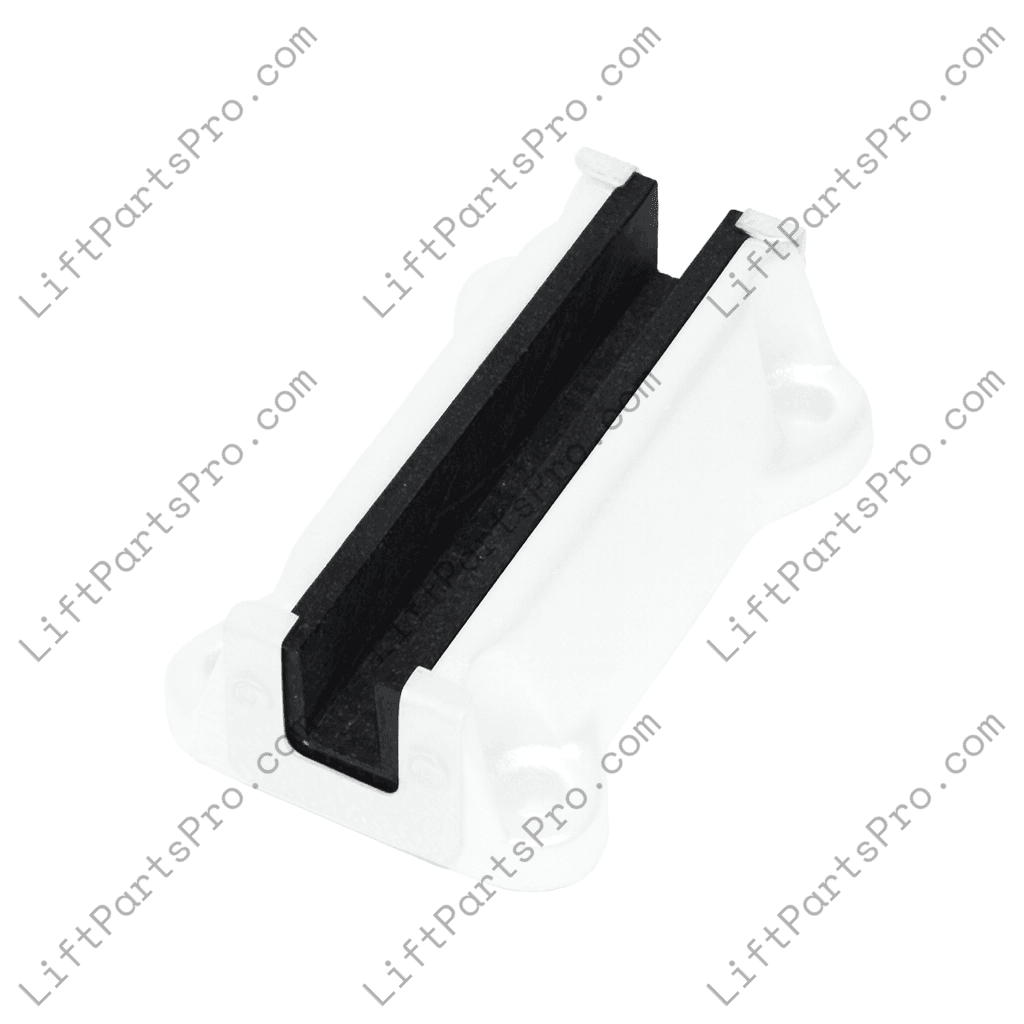

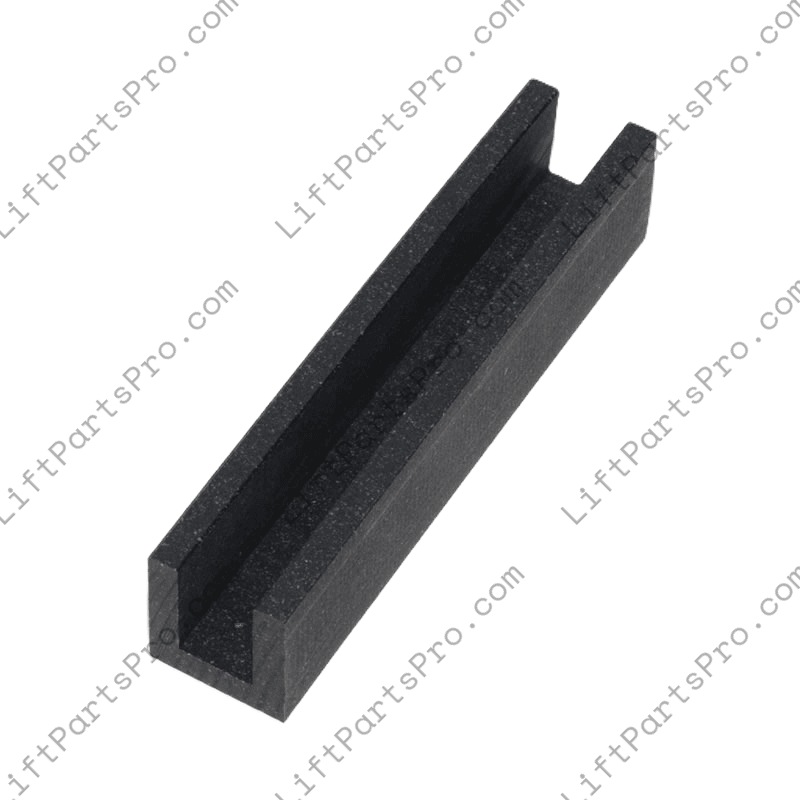

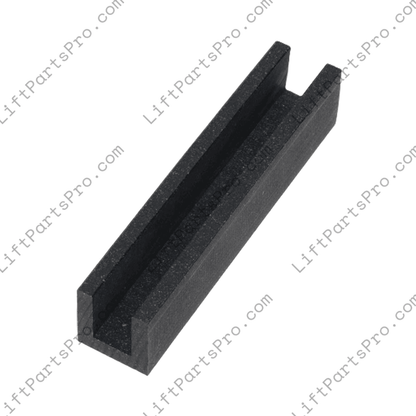

This elevator guide shoe insert is designed to fit a 5/8-inch T-rail with precision, providing .015 inches of clearance on either side for smooth travel. The insert measures 5.75 inches in length, 1.25 inches in height, and 1.20 inches in width, with a centered .655-inch-wide slot that is 1 inch deep. Manufactured from ultra-high-molecular-weight (UHMW) polyurethane, this gib offers excellent wear resistance and reduced friction, supporting reliable elevator car movement. Commonly used in EECO Advantage elevator systems, its standardized dimensions make it a practical replacement for a variety of applications requiring this size and profile. The insert can also be milled to accommodate 3/4-inch rails for broader compatibility.

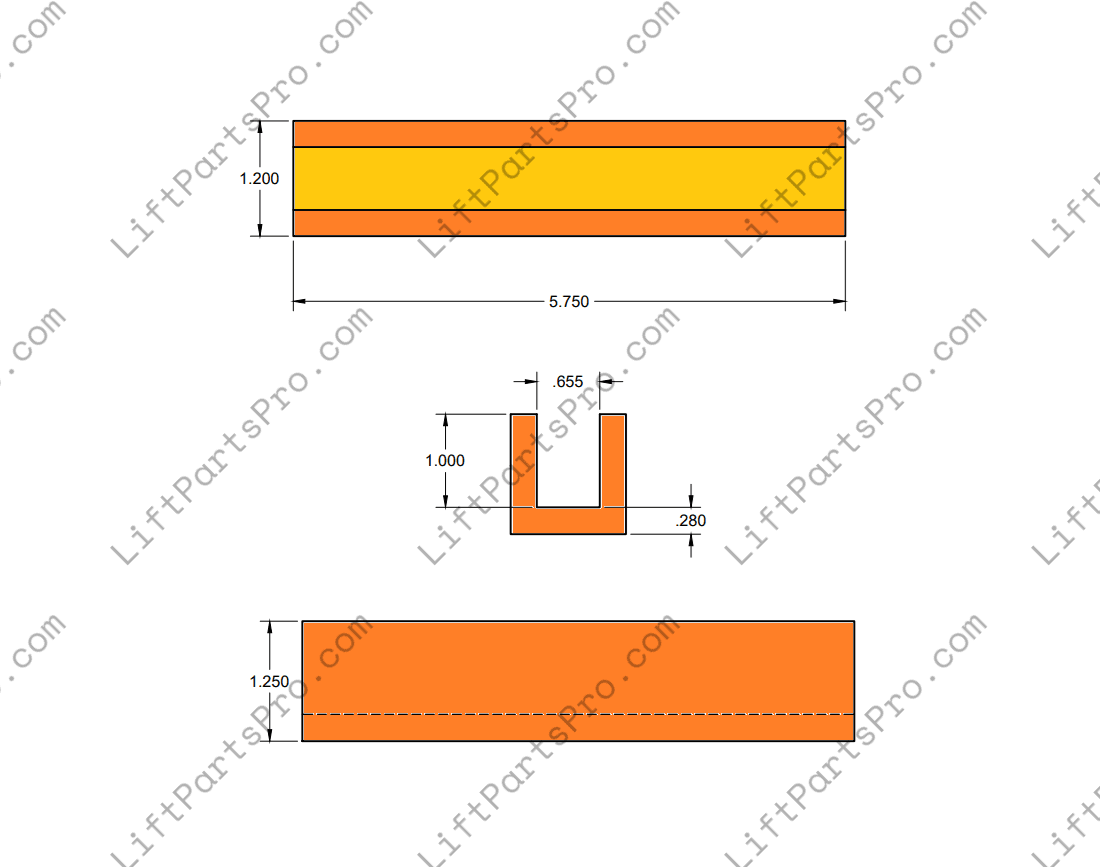

• Material: UHMW Polyurethane
• Overall Length: 5.75 inches
• Height: 1.25 inches
• Width: 1.20 inches
• Slot Width: .655 inches
• Slot Depth: 1.00 inch
• Slot Base Thickness: .280 inches
• Rail Compatibility: 5/8-inch T-rail with .015-inch side clearance
• Optional: Can be milled to fit 3/4-inch rail

Always ensure elevator components are installed by qualified personnel following applicable codes and safety standards. Using quality replacement parts supports the continued safe and smooth operation of vertical transportation systems.
