Genesis Wheel Chair Lift Resistors - 5, 10, and 25 Ohm

Compatible with Genesis Vertical Platform Lifts

High-Power Resistors – 5Ω, 10Ω, 25Ω – for Genesis VPLs

Durable fixed resistors for Genesis vertical platform lifts, available in 5, 10, and 25 ohm values. Ideal for power regulation, motor braking, or circuit tuning.

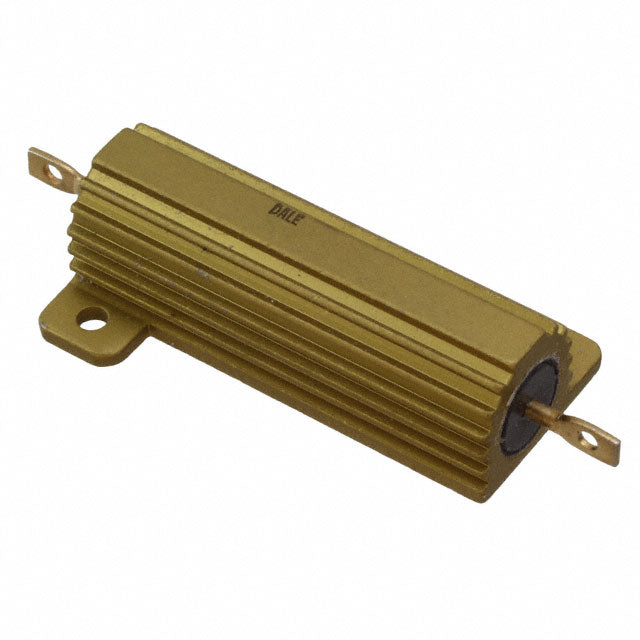

These industrial-grade wirewound resistors are designed to withstand demanding lift environments, offering high stability and reliable performance. Commonly used in brake resistor assemblies or control board repairs, they are suitable for replacing worn or damaged resistors in Genesis VPL systems. Each resistor features an aluminum housing for efficient heat dissipation and includes axial leads for secure mounting.

Specifications:

• Resistor Type: Wire-wound, chassis mount
• Power Rating: 50W
• Tolerance: ±1%
• Resistance Options:
  – 5 Ohm
  – 10 Ohm
  – 25 Ohm
• Housing: Aluminum, heat-sinkable
• Operating Temp Range: -55°C to +250°C
• Mounting: Axial leads, horizontal or vertical orientation
• Use Case: Brake resistor, load resistor, motor control resistor
• Length (Body): 53.34 mm (2.10 in)
• Width: 15.75 mm (0.62 in)
• Height: 15.75 mm (0.62 in)
• Lead Length: ~38 mm (1.5 in) each side
• Mounting Hole Spacing (Center-to-Center): 45.7 mm (1.80 in)
• Mounting Hole Diameter: ~4.3 mm (0.17 in)

Note: Professional installation recommended. Confirm resistance values before replacing any components in your lift system.
