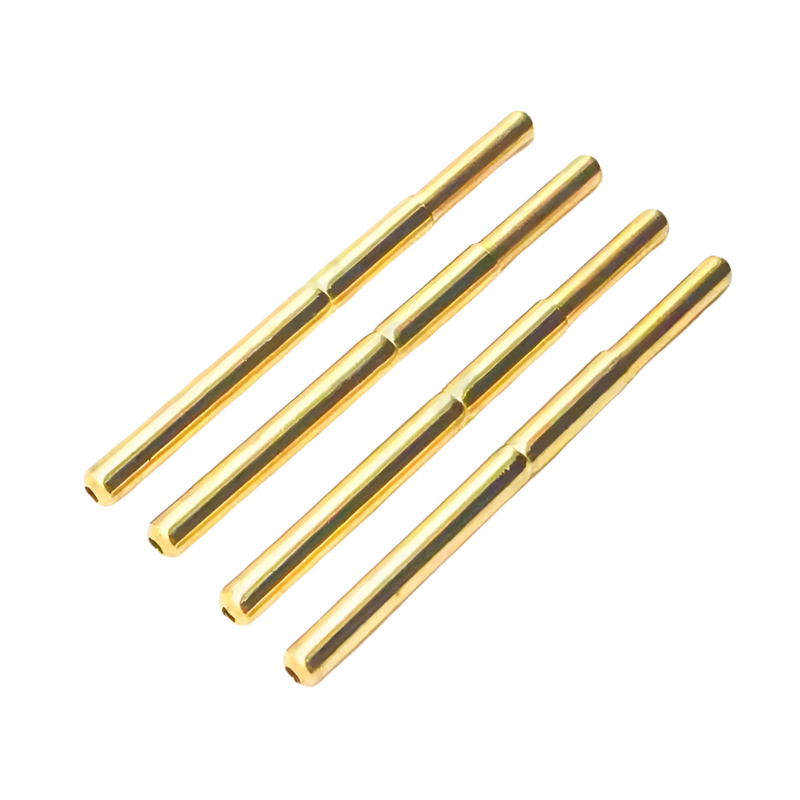

Gate Interlock Spring-loaded Probe - Porch-Lift - Sold as a 4-pack

Compatible with Various Porch-Lift Systems

This spring-loaded sleeve is designed as a critical component of gate interlock mechanisms in many porch-lift systems. Its precision construction and internal spring ensure consistent contact performance, helping maintain safe and reliable lift operation.

Key Features:

• Spring-Loaded Mechanism: Internal spring maintains steady contact pressure, ensuring a secure and consistent connection with the latch plate—even under vibration or misalignment.
• Crimpable Design: Allows easy attachment to the wiring of the gate lock system, supporting quick installation with a secure electrical bond.
• Gold-Plated Contact Tip: Enhances conductivity and corrosion resistance for dependable signal transmission.
• Durable Construction: Engineered from high-quality brass for strength and long-term performance in lift environments.

Specifications:

• Overall Length: 34mm
• Body Length (excluding tip): 25mm
• Tip Length: 9mm
• Body Diameter: 2.36mm
• Pin Shaft Diameter: 2.01mm
• Material: Brass, gold-plated contact head

This sleeve may also be used in conjunction with standard needle sleeves to complete the gate interlock circuit. Ideal for service replacements or new lift installations requiring precise and reliable contact performance.
