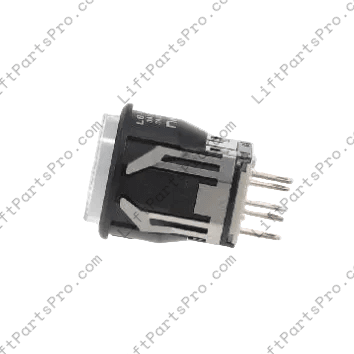

Garaventa / Genesis Round White Call Button LB-15CK

This NKK button is ideal as a replacement call or control button on select Garaventa and Genesis vertical platform lifts that use the LB15CK‑series switch, providing clear actuation feedback and durable performance when integrated into lift control panels.

• Function: SPDT momentary pushbutton with illuminated cap
• Illumination: White LED with clear lens and white diffuser
• Mounting: Panel snap‑in, circular cutout (~22 mm)
• Electrical Rating: 3 A at 125 VAC / 30 V DC
• Termination: Quick‑connect (0.110″ / 2.8 mm)
• Housing Material: Glass fiber reinforced polyamide
• Mechanical Life: Up to 1 000 000 cycles
• Operating Temp: –25 °C to +50 °C

Proper installation by qualified service technicians is recommended to ensure continued safe operation of lift systems and compliance with applicable codes. This product listing reflects general specifications and compatibility; users should verify fit and function with specific lift models before purchase.
