Garaventa Genesis Pizzato Upper Limit Switch

Precision upper-limit position detection switch for Garaventa Genesis vertical platform lifts, offering reliable actuation at the lift’s top stop.

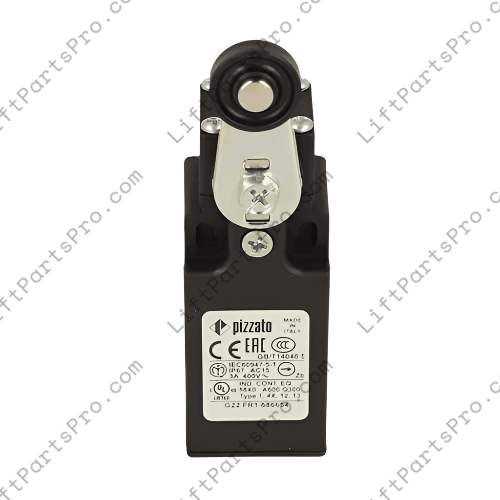

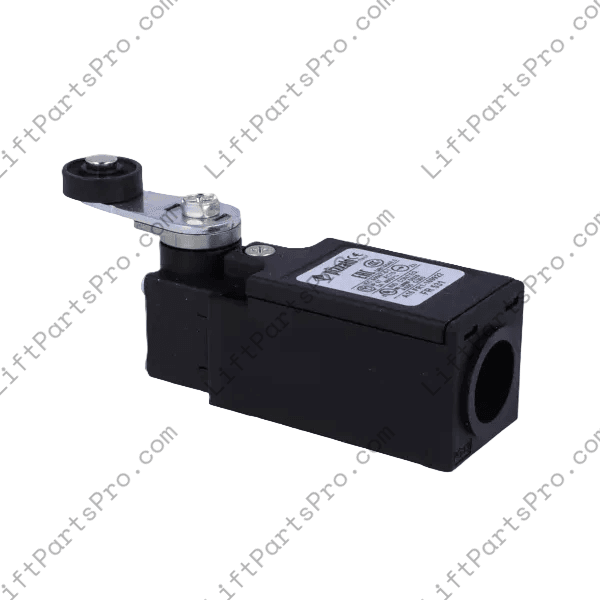

This limit switch with a roller lever mounts directly in the lift’s travel path to signal the control system when the platform reaches its upper limit. It features a dual-contact design (1 NO + 1 NC) and snap-action switching for dependable performance in industrial lift environments.

• Position-able switch with rotating technopolymer roller lever, 18 mm diameter
• Contacts: 1 NO + 1 NC snap-action rated up to 10 A thermal
• Voltage rating: up to 500 V AC / 250 V DC; resistive load ratings: 6 A at 250 V AC, 6 A at 24 V DC
• Housing: glass-fibre-reinforced technopolymer; one PG 13.5 conduit entry; plastic body
• Environmental ratings: IP67 and IP69K; operating temperature –25 °C to +80 °C
• Mechanical endurance: up to 20 million operations; actuation frequency 3,600 cycles/hour
• Insulation voltage: Ui = 500 VAC / 600 VDC; impulse withstand voltage Uimp = 6 kV; conditional short-circuit current 1 kA
• Terminals: screw clamps; conductor size 0.5–2.5 mm²; recommended tightening torque 0.6–0.9 Nm
• Dimensions: 51.5 × 30.8 × 30.8 mm; 2 mounting holes; hole pitch 20–22 mm

Installation Notes: The roller actuator can be rotated in 45-degree increments, allowing the switch to be mounted with the actuator facing any of the four sides. This flexible orientation makes it suitable for a variety of Genesis wheelchair lift configurations and mounting positions. For safety circuits, use the NC contact in accordance with EN ISO 14119. Tighten conduit and terminal screws to specified torques to maintain IP rating.
