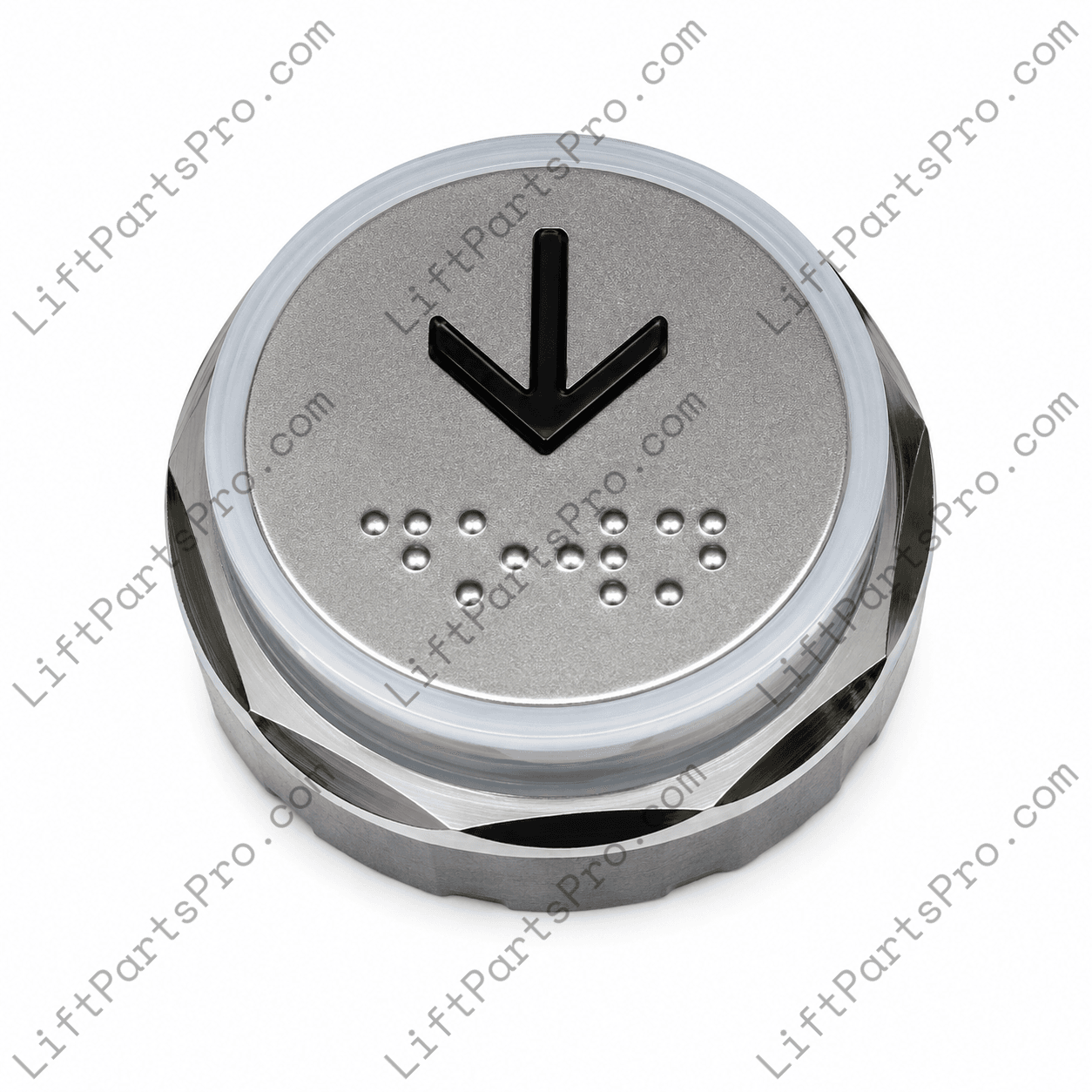

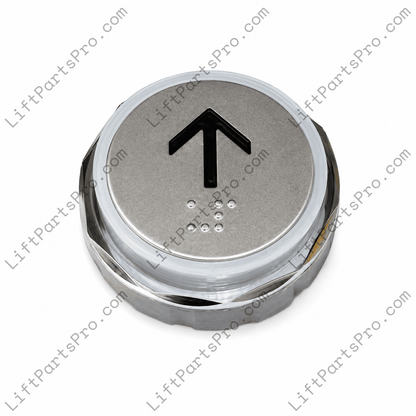

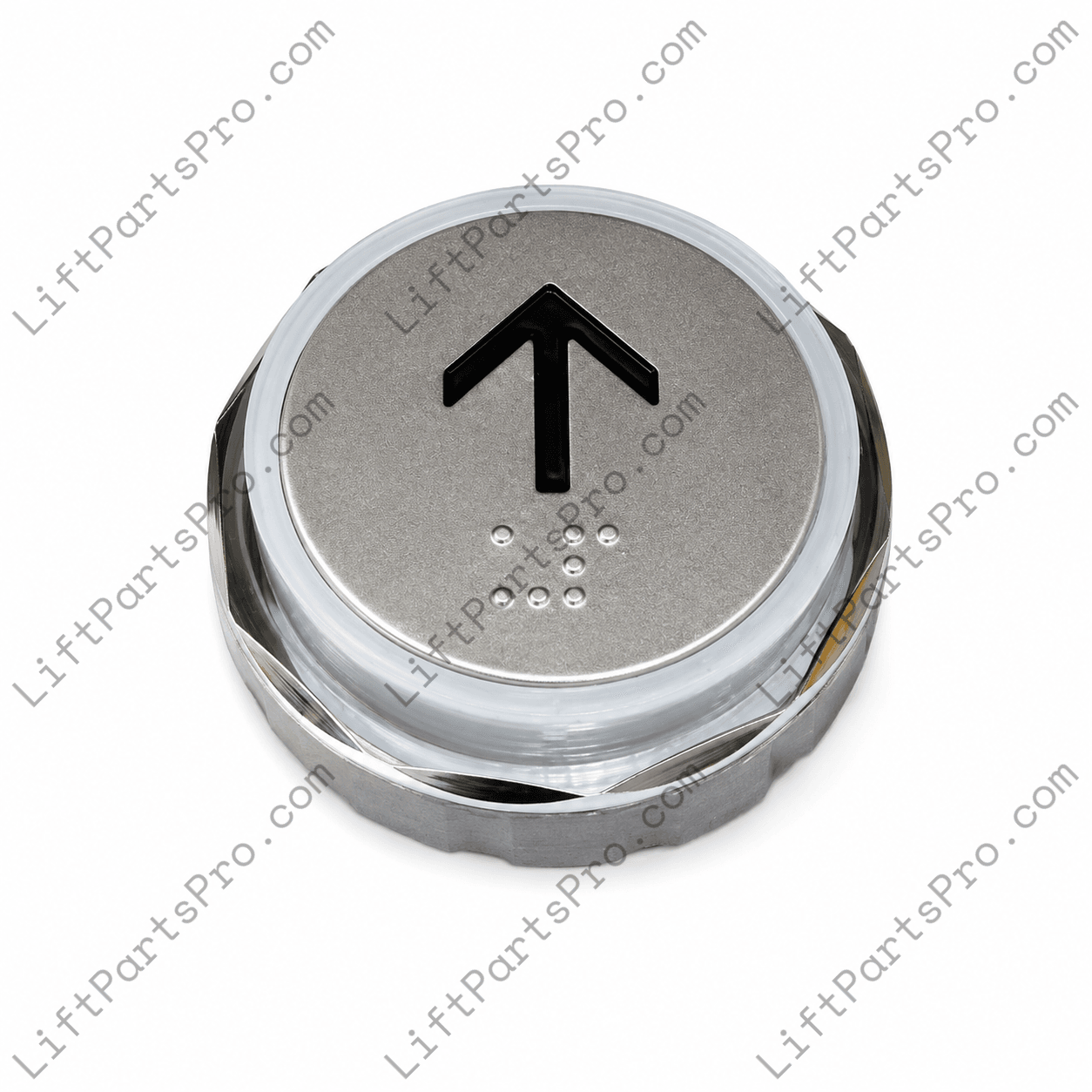

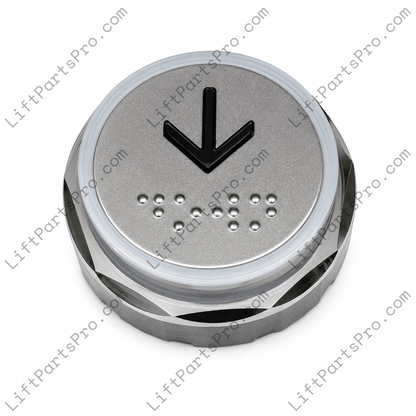

Garaventa Genesis Lift Push Button Switch – UP or DOWN Arrow

Replacement illuminated push button switch commonly used on Garaventa Genesis vertical platform lifts (VPLs) as hall call buttons or COP (Car Operating Panel) buttons.

These white illuminated arrow push buttons are available in both UP and DOWN configurations and are designed as replacements for the following part numbers:

• UP Button Replacement: 21321
• DOWN Button Replacement: 21323

Commonly referenced as:

• SWITCH,PUSHBUTTON,ARROW,UP,JHI,VL2
• SWITCH,PUSHBUTTON,ARROW,DOWN,JHI,VL2

Commonly found on:

• Garaventa Genesis vertical platform lifts
• Garaventa COP panels
• Garaventa hall call stations

May also be compatible with additional  lift configurations using the same switch style.

Important Connector Information

These switches include both 3-pin and 4-pin rear terminal configurations to support multiple lift applications and manufacturing revisions.

For most Garaventa Genesis applications, the 3-pin switch terminals are utilized.

Terminal mapping:

• Pin 1 = COM
• Pin 2 = NC
• Pin 3 = NO

Physical terminal arrangement may vary by production revision or application.

Specifications

• Type: Illuminated Push Button Switch
• Illumination Color: White
• Arrow Direction Options: UP or DOWN
• Braille: Yes
• Cutout Diameter: ~33mm (~1-1/4")
• Rear Connections: 7-Pin Total (4-Pin + 3-Pin)
• Operation: Momentary

Includes

• (1) Push Button Switch
• Select UP or DOWN variation before checkout

Installation and electrical troubleshooting should be performed by a qualified elevator or lift technician familiar with Garaventa equipment.
