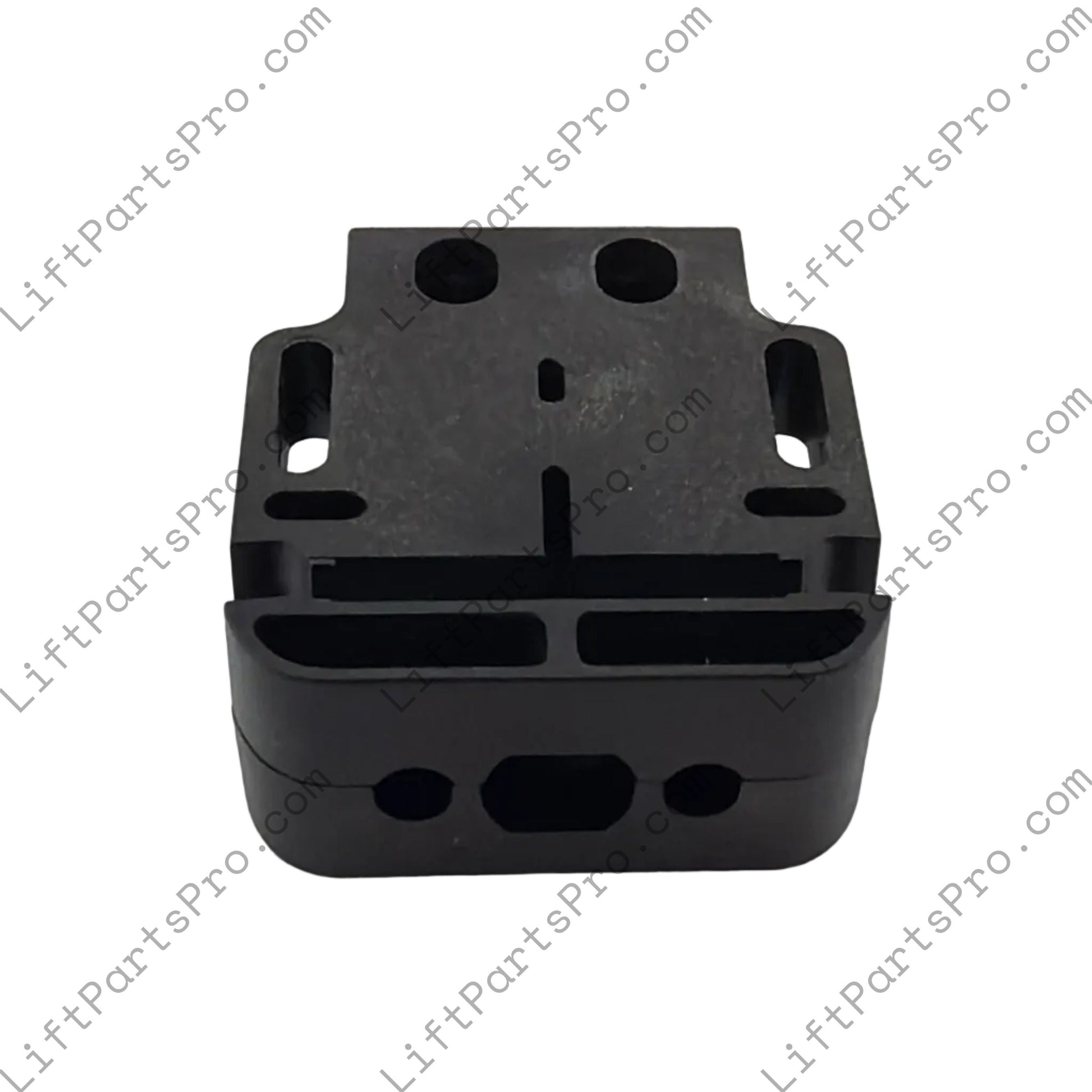

Garaventa Genesis Door Interlock Contact Block Replacement

Designed for use on a variety of Garaventa Genesis platform lifts, this Prudhomme door interlock contact block serves as a direct functional replacement for older contact designs previously used across multiple Genesis models, including GEN-HY-US series lifts.

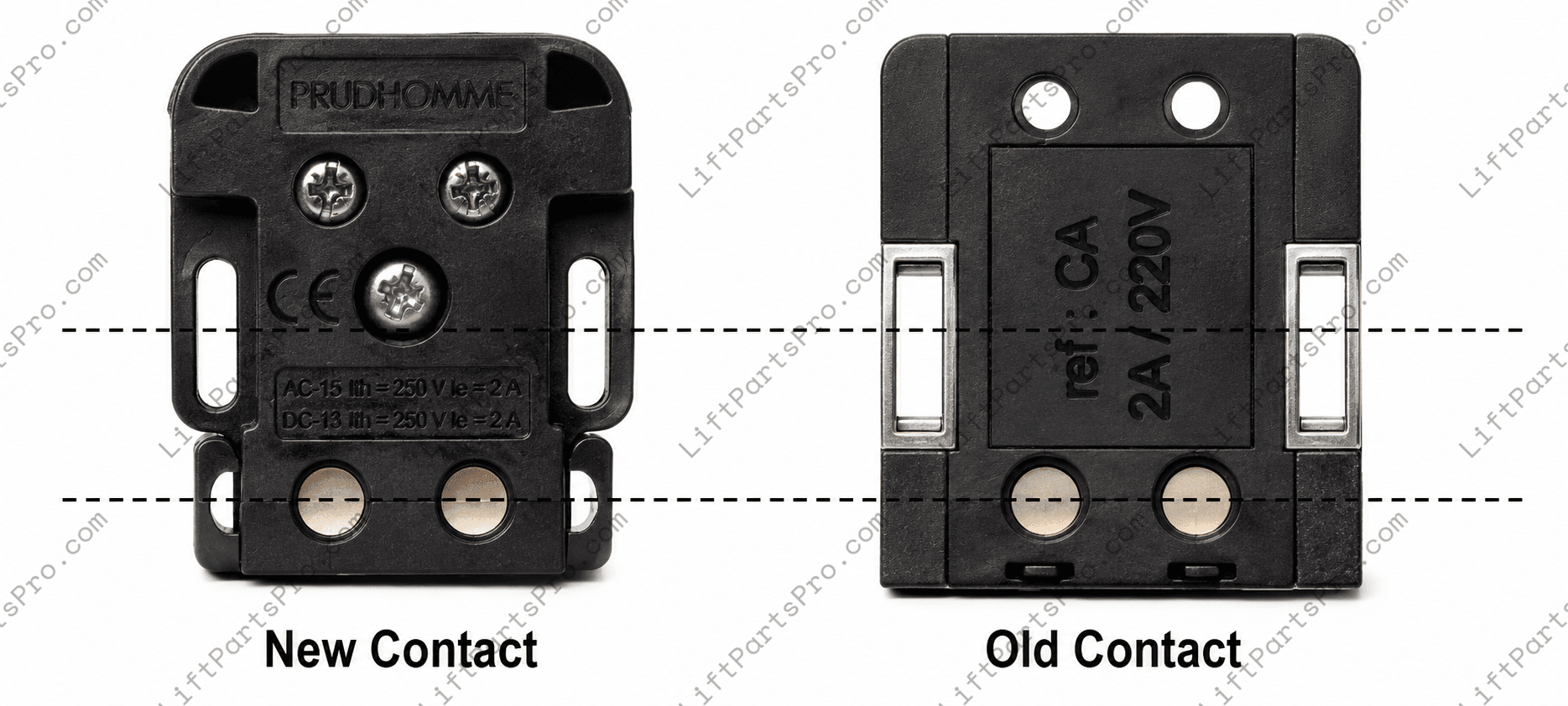

The current upgraded design is fully backward compatible with older versions and maintains the same mounting pattern and overall dimensions for straightforward replacement. Available in both front-facing and rear-facing configurations, it can be matched to the original installation requirements while providing improved durability and a longer service life.

The updated design positions the electrical contacts slightly deeper within the housing to meet current standards. In some applications, existing interlock bridges or actuators may require adjustment to maintain proper contact engagement.

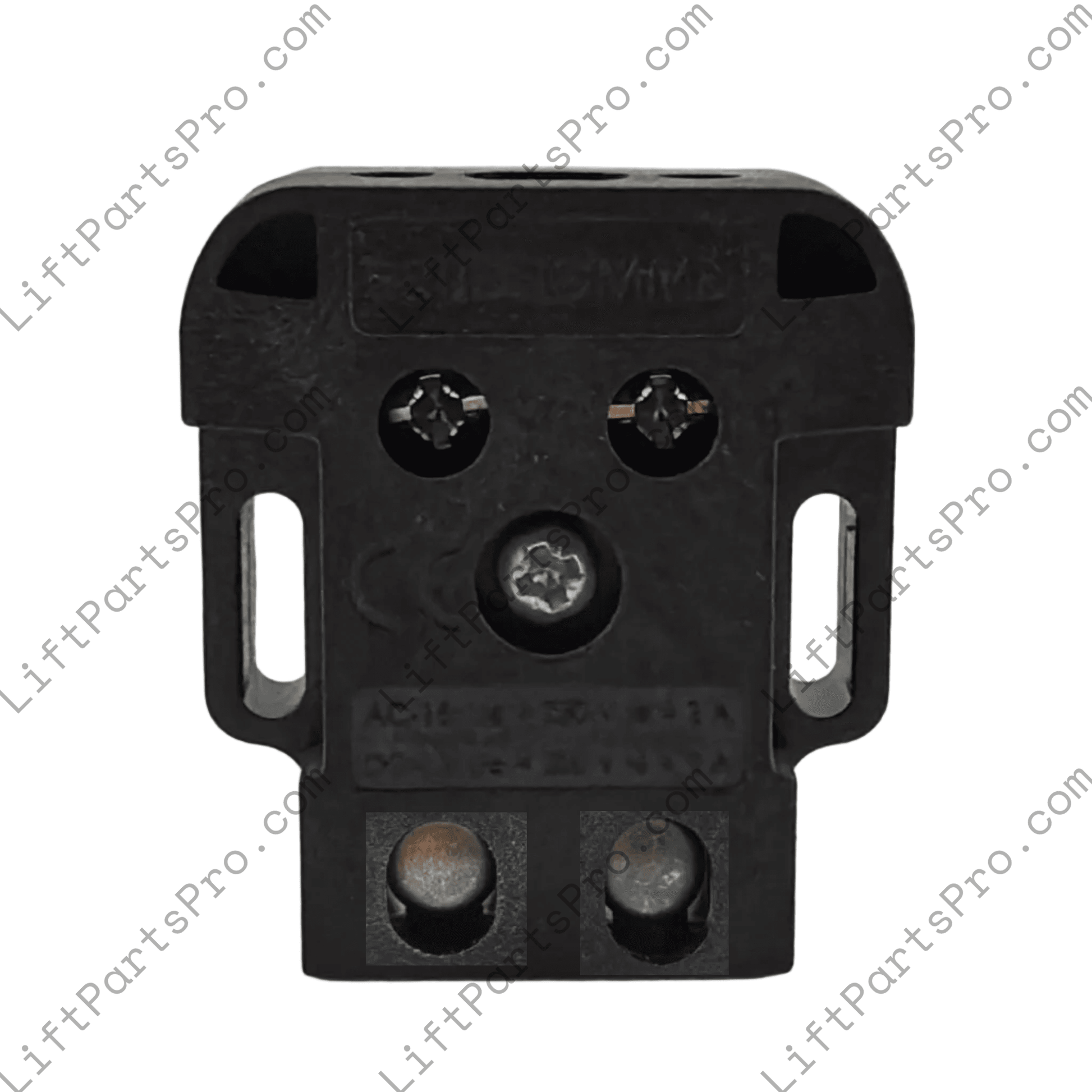

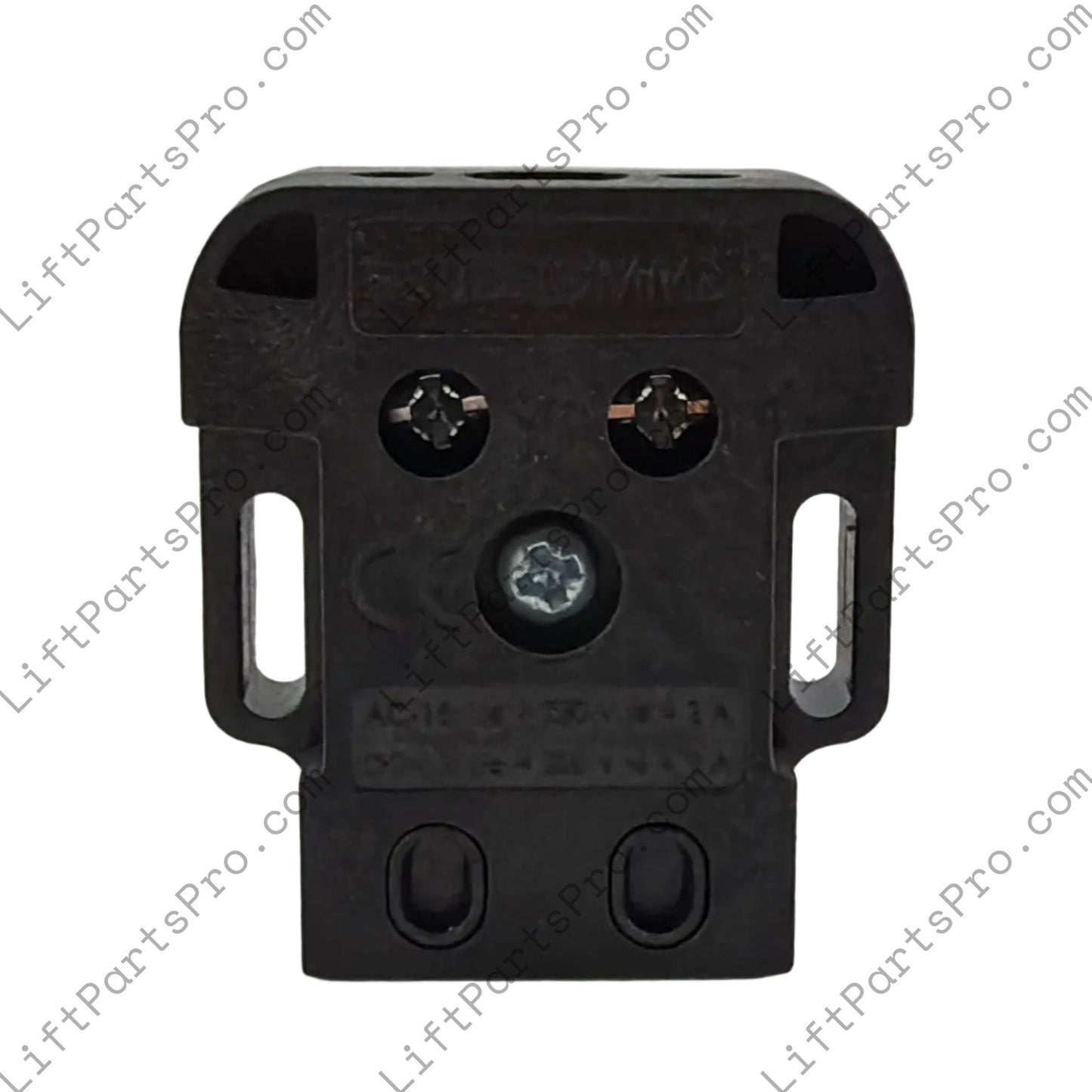

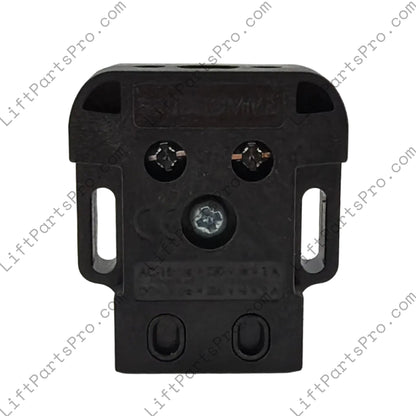

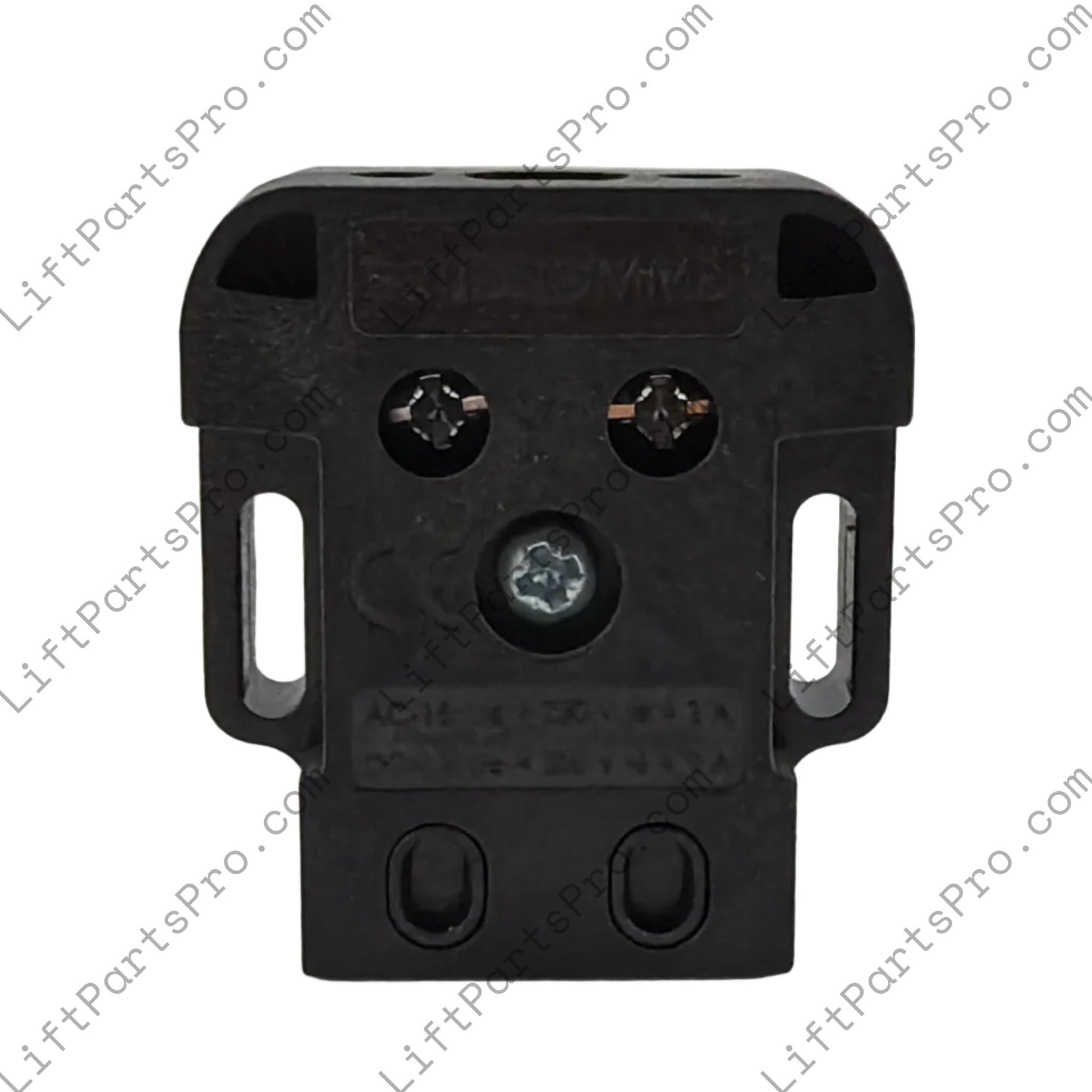

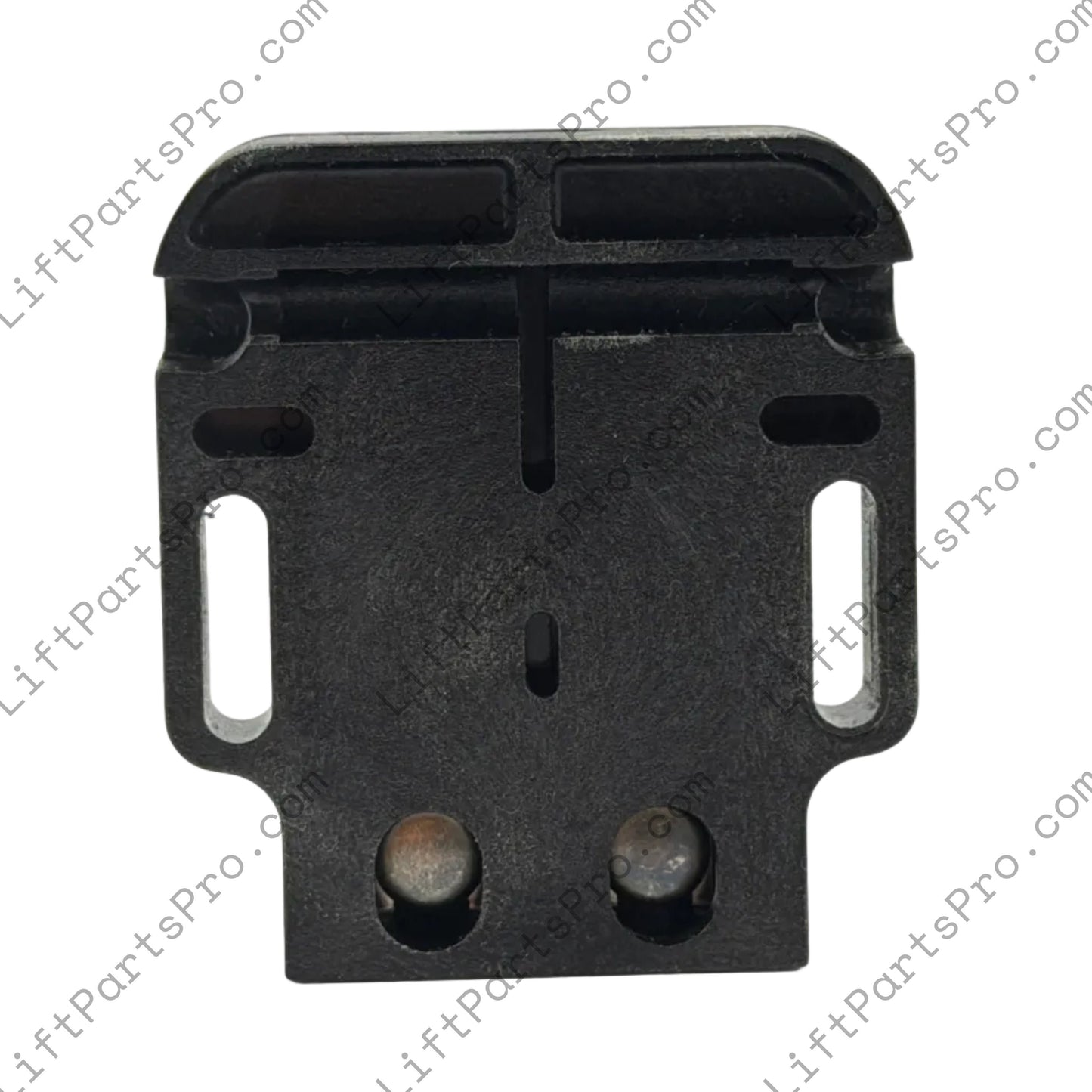

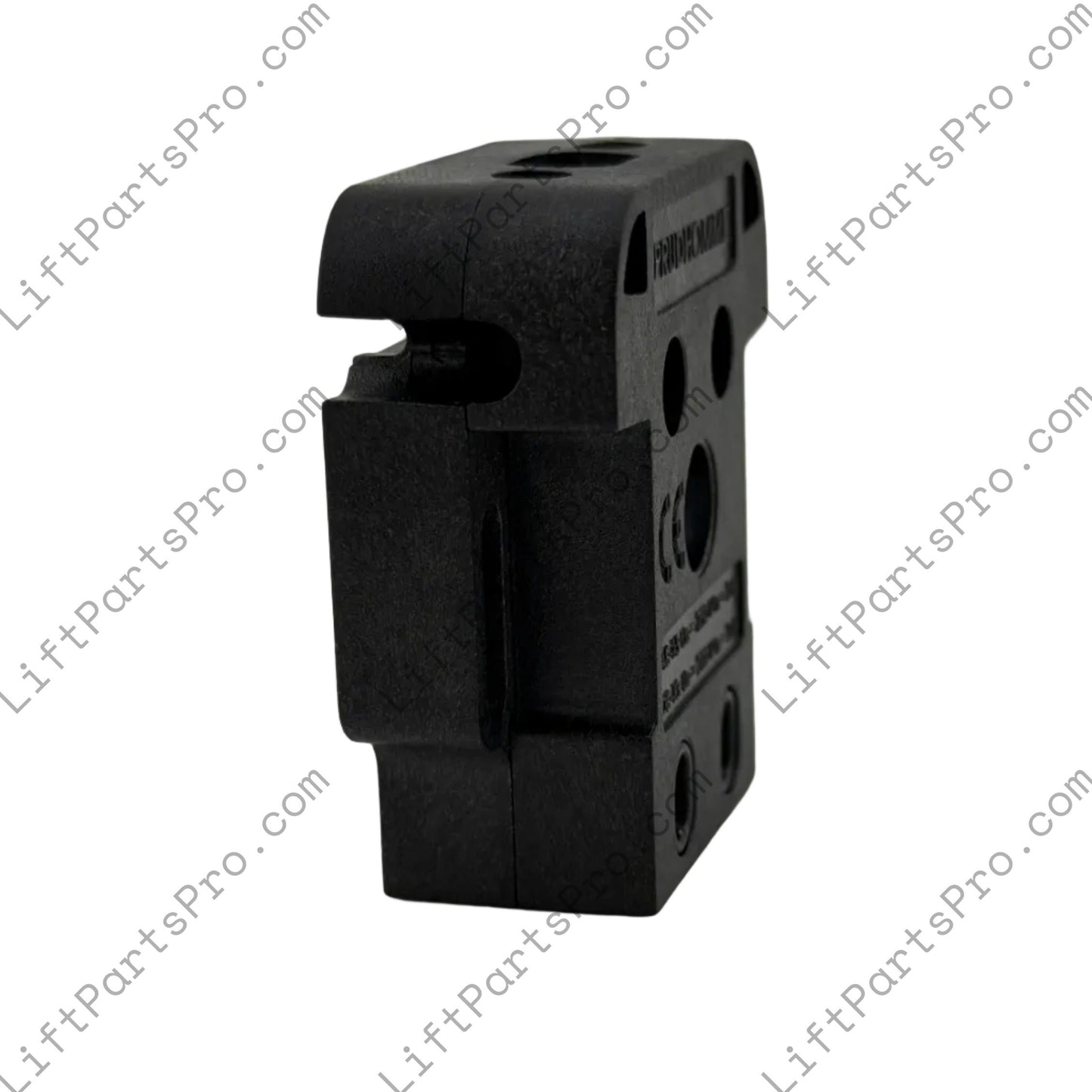

This replacement is available in two configurations to match lift requirements: a front-facing version with contacts located on the side displaying the Prudhomme name, and a rear-facing version with contacts located on the opposite flat side of the housing.

• Replaces older Prudhomme contact block designs
• Compatible with select Garaventa Genesis platform lifts
• Available in front-facing and rear-facing contact configurations
• Backward compatible with previous versions
• Mounting hole spacing matches older contact designs
• Improved durability and extended service life
• Approximate dimensions: 50 mm H × 45 mm W × 19.5 mm D
• Rated for up to 220V applications
• Durable molded contact block construction
• Contacts positioned deeper within the housing than previous versions

For dependable lift operation, replacement components should always be installed and inspected by qualified personnel in accordance with applicable codes, manufacturer requirements, and site-specific maintenance procedures.
