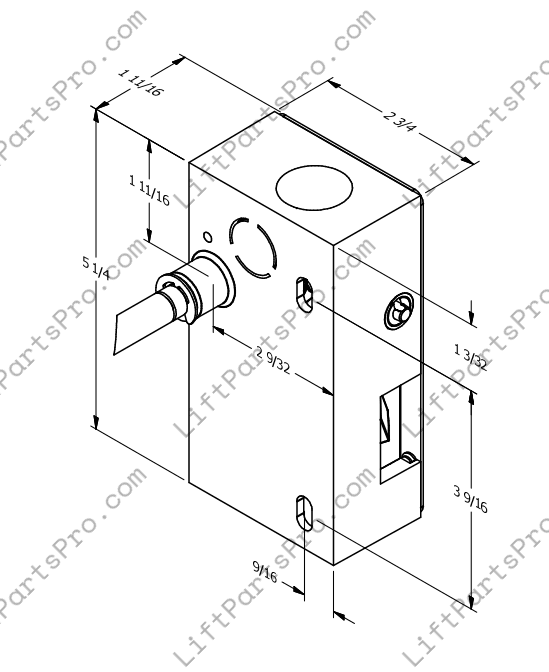

GAL Type SN Gate Interlock

Compatible with Garaventa, Genesis, Fox Valley, and Waupaca elevator systems, as well as other lifts utilizing GAL interlocks.
Reliable replacement for door lock assemblies using the current GAL Type SN format.

The Type SN lock is GAL's modern standard for elevator and lift interlocks, designed for secure mechanical engagement and compliance with updated code requirements. Each lock includes the complete assembly — switch, keeper, and roller arms — and is available in both left-handed and right-handed configurations. It’s commonly used in new installations and as a retrofit solution for older SM-style locks when paired with the appropriate adapter.

• Genuine GAL Type SN interlock assembly
• Includes switch, keeper, and 4-1/2" CL roller arms
• Available in left-handed and right-handed configurations
• Compatible with SM-to-SN retrofit adapter when replacing older SM locks
• Precision-cast housing with durable internal switch components
• Suitable for modern LU/LA, platform, and residential elevator systems
• Standard replacement part in maintenance and modernization projects

Choose orientation based on the swing direction of the door. For legacy SM conversions, use in combination with the SM-to-SN Adapter.

Installation must be performed by qualified personnel to ensure safety and code compliance.
