GAL Type N to Type M Elevator Interlock Retrofit Adapter Kit

Designed for elevator installations originally equipped with the legacy GAL Type M interlock, this retrofit adapter kit provides the mounting adaptation needed to install the newer GAL Type N interlock in the former Type M location. The kit effectively adapts the Type N lock to the older Type M mounting configuration, providing a practical replacement solution when servicing installations where the original Type M interlock is no longer available. Separate right-hand and left-hand kits are available to match the required interlock configuration.

• Application: GAL elevator door interlock retrofit
• Converts: Type N interlock for Type M mounting configuration
• Replacement application: Discontinued GAL Type M interlock installations
• Available configurations: Right-hand and left-hand
• Left-handed locks are installed on the left side as view looking into cab.

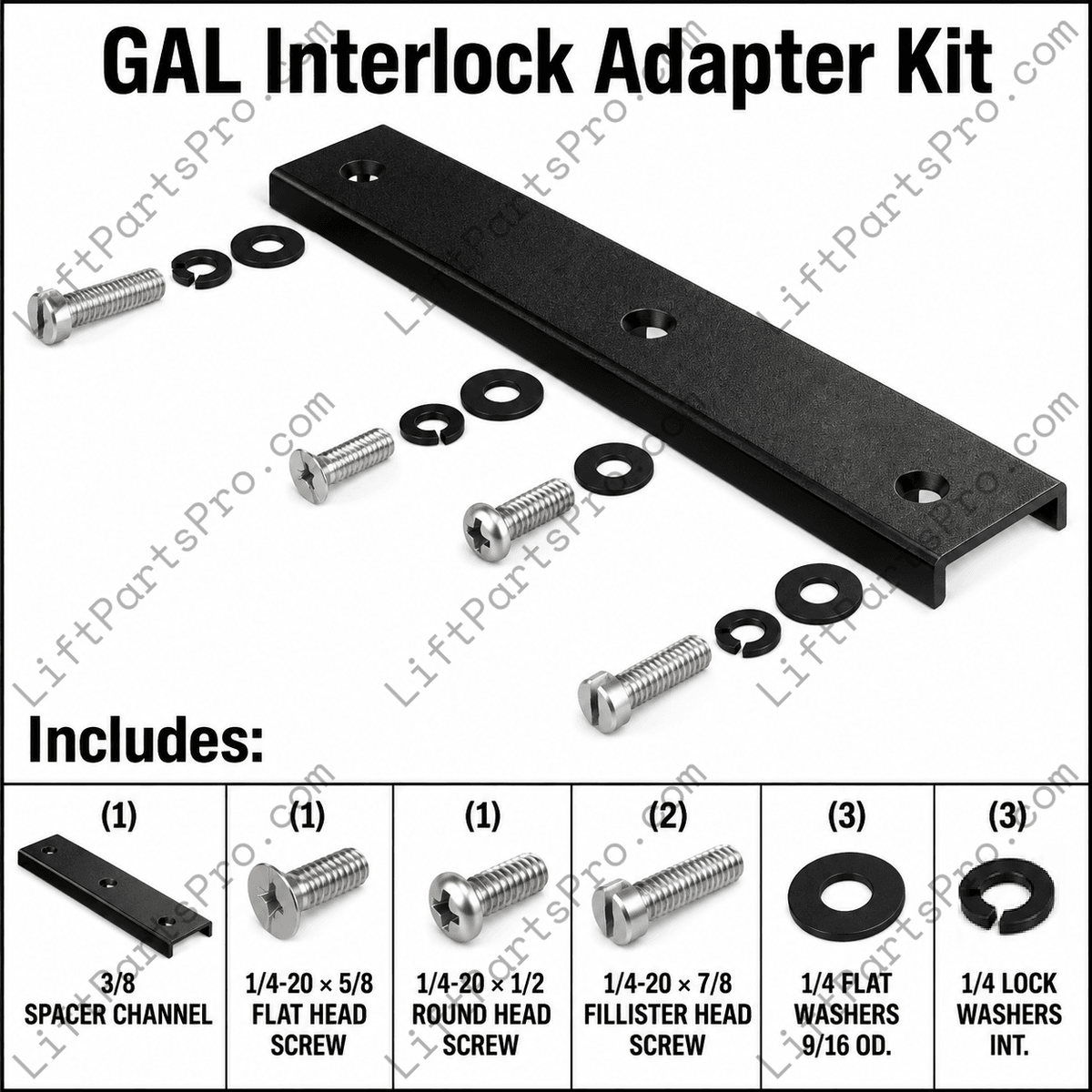

• Spacer channel: (1) 3/8 in.
• Flat head screw: (1) 1/4-20 × 5/8 in.
• Round head screw: (1) 1/4-20 × 1/2 in.
• Fillister head screws: (2) 1/4-20 × 7/8 in.
• Flat washers: (3) 1/4 in., 9/16 in. OD
• Internal-tooth lock washers: (3) 1/4 in.
• Interlock not included

Elevator interlock components are part of the hoistway door locking system and should be installed and adjusted only by qualified elevator personnel in accordance with the applicable equipment requirements and safety codes.
