GAL Type N Elevator Interlock | Side-Wall Shaft

This GAL Type N interlock is a universal, non-proprietary elevator door safety component used with conventional swing-door entrances. Its standardized design makes it suitable for a wide range of independent, package, and legacy elevator installations that use compatible Type N interlock arrangements.

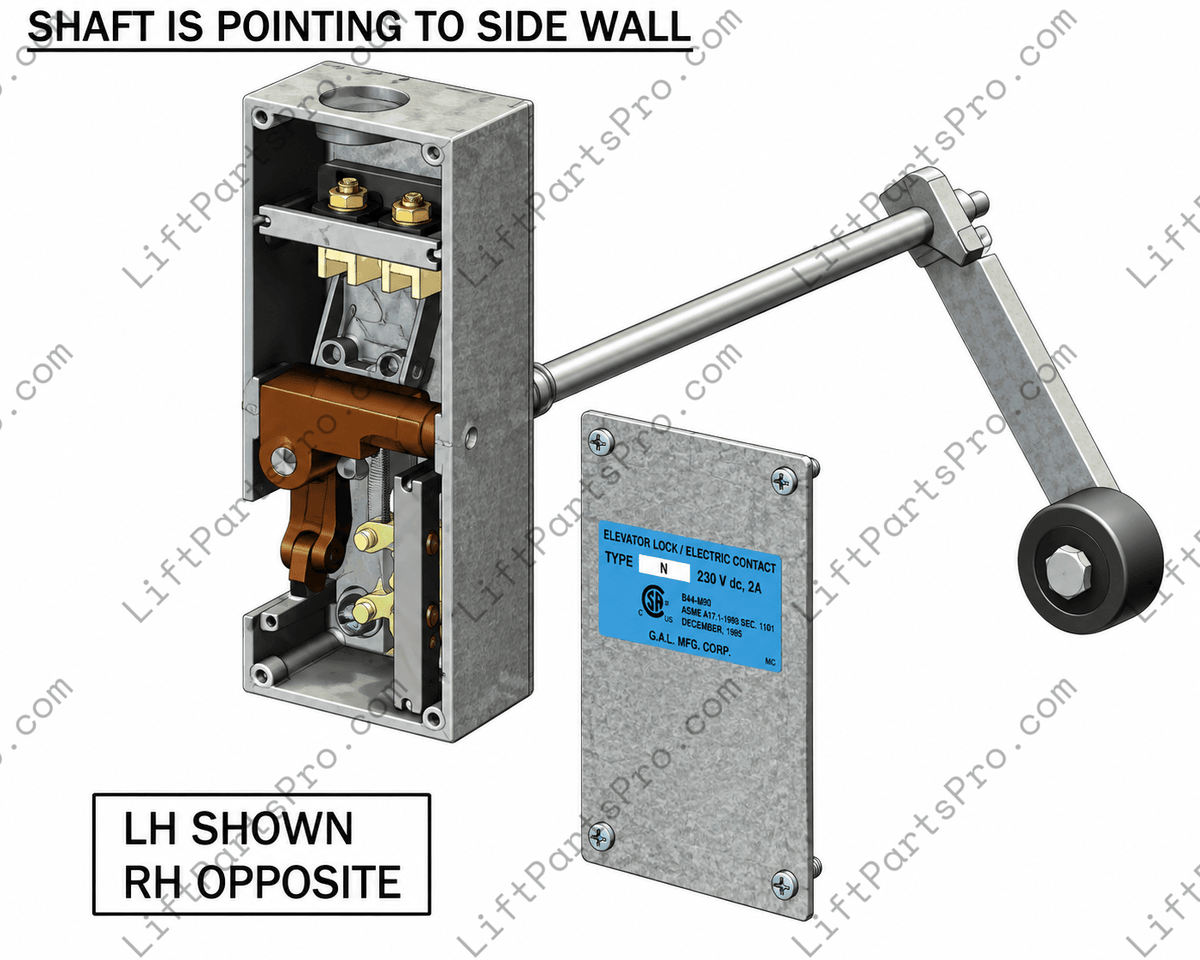

The interlock is configured with the lock shaft pointing toward the side wall rather than toward the back of the elevator car. A surface-style keeper and standard roller arm provide the corresponding mechanical arrangement for this configuration. Left-hand and right-hand versions are available to accommodate the required lock or strike-jamb orientation.

• Interlock type: GAL Type N
• Application: Conventional swing doors
• Shaft orientation: Points toward side wall
• Keeper type: Surface
• Roller arm: 4-1/2" C.L.
• Standard shaft length outside box: 9"

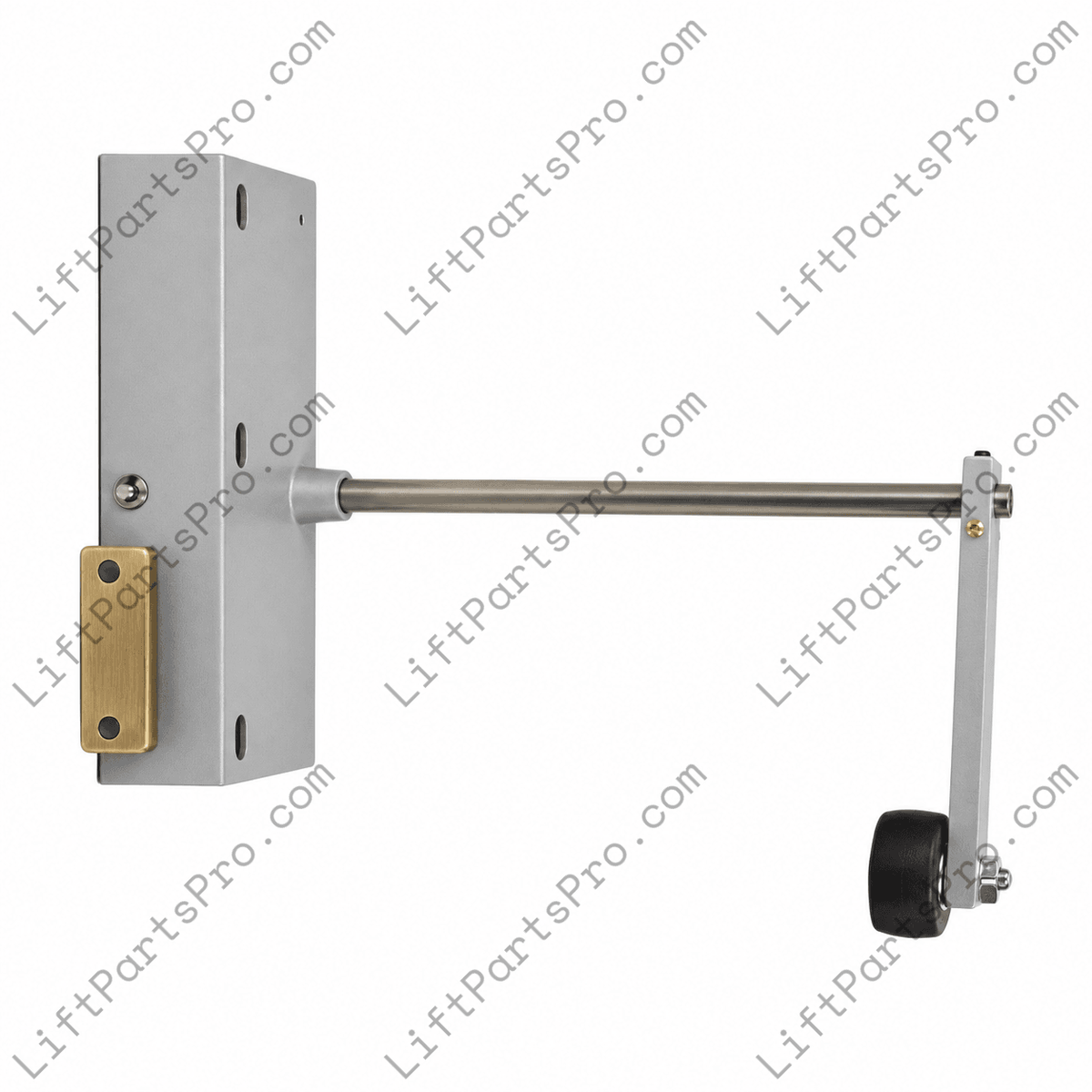

• Handing: Left-hand or right-hand
• Design: Universal, non-proprietary elevator interlock
• Typical use: Independent, package, and legacy elevator systems
• Mounting hardware: Not supplied

Elevator interlocks are safety-related components and should be selected for the correct entrance configuration and installed by qualified elevator personnel in accordance with applicable codes, specifications, and installation requirements.
