Flexi-Lift Cogged Belt for Victory Door Operators
Flexi-Lift Cogged Belt for Victory Door Operators
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: BLT.VCT.600
Condition: New
Couldn't load pickup availability
Replacement 600 RPP5 cogged belt for Victory door operators used in select Flexi Lift LU/LA elevators by Access Industries. Replaces 146321.
This belt matches the common HTD/PRP5 profile used in Victory door operator drives, delivering reliable motion and precise engagement. Designed to directly replace belt #146321 on compatible elevator models, it helps prevent downtime and extends the life of the door operator assembly. The 5 mm pitch and 15 mm width ensure proper fit and performance on standard pulleys.

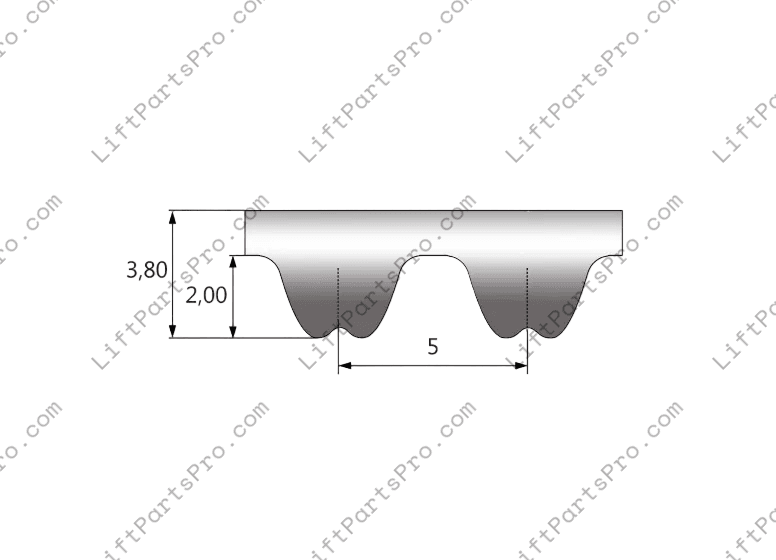

Key Specifications:
- Belt Pitch: 5 mm HTD/PRP5
- Pitch Length: 600 mm
- Width: 15 mm
- Number of Teeth: 120
- Total Belt Height: ~3.8 mm
- Tooth Height: ~2.06 mm
- Reinforcement: Fiberglass tensile cord
- Covered Tooth Surface: Wear‑resistant nylon fabric
- Typical Temp Range: ~‑20 °C to +100 °C
For safe, consistent elevator operation, have belt replacements performed by qualified service personnel familiar with door operator systems. Proper installation and maintenance support long‑term reliability and performance.
