EMI Porta TAL Elevator Selector Interface PCB SELMOUT3

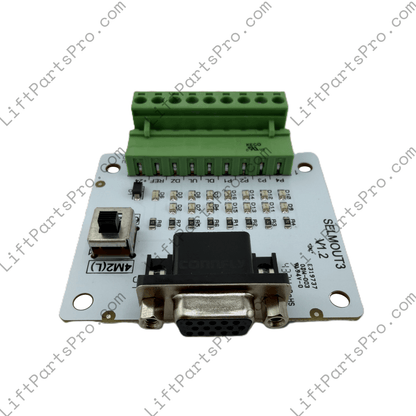

The SELMOUT3 V1.2 is a selector interface circuit board used with EMI Porta and TAL Engineering elevator control equipment. It interfaces selector-related signals with the elevator controller through a 15-PIN connection and removable screw-terminal connector. This board is associated with the SELMOUT selector interface family and may serve applications previously using SELMOUT2 boards.

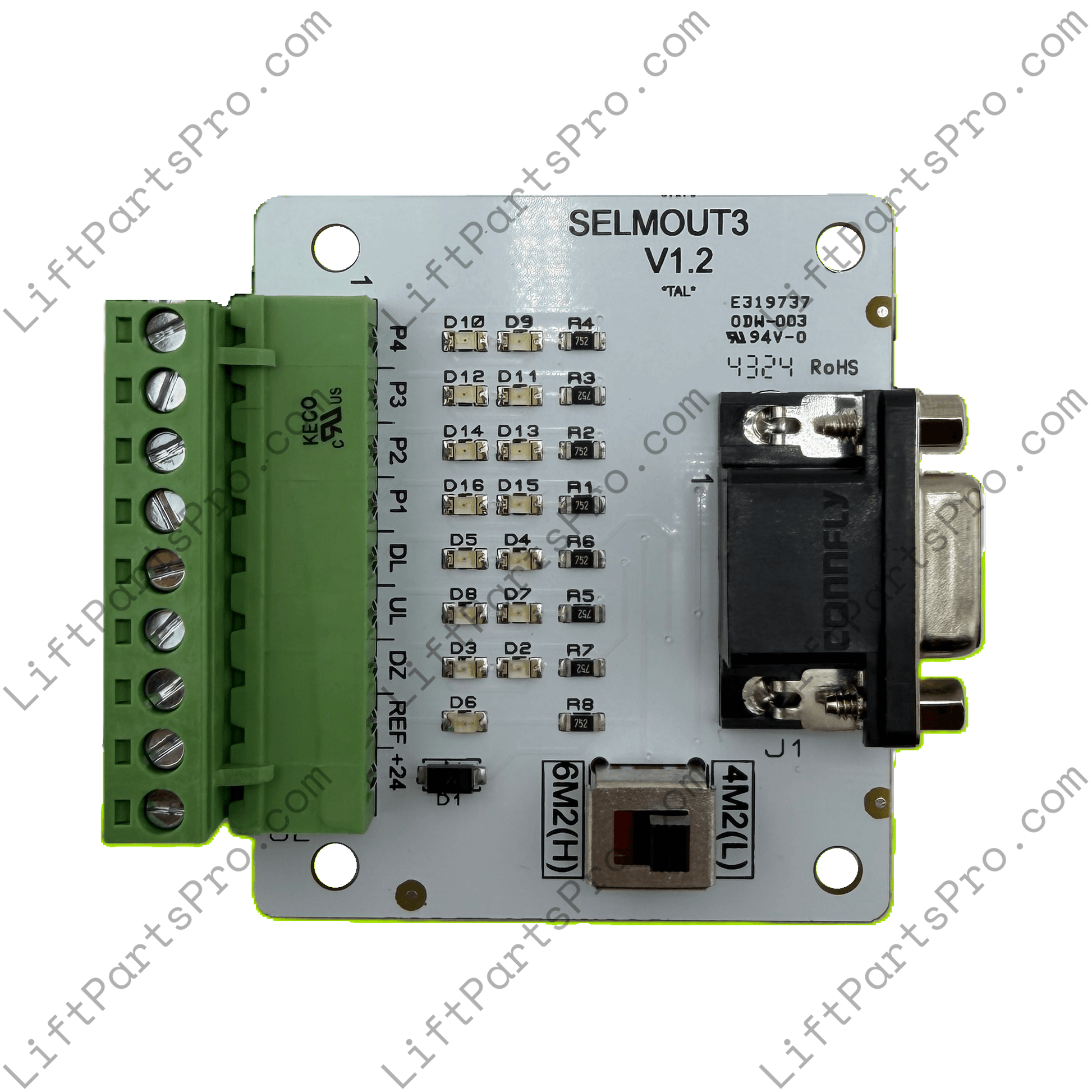

Clearly marked terminal positions provide connections for four position signals along with down level, up level, and door zone functions. An onboard configuration switch is labeled for 4M2(L) and 6M2(H) applications, allowing the board to accommodate the designated control configuration. The compact PCB includes mounting holes for secure installation within the appropriate elevator control or selector assembly.

• Board designation: SELMOUT3 V1.2
• Component type: Elevator selector interface PCB
• Equipment application: EMI Porta / TAL Engineering elevator controls
• Position connections: P1, P2, P3, P4
• Leveling connections: DL (Down Level) and UL (Up Level)
• Door zone connection: DZ
• Reference connection: +24 VDC

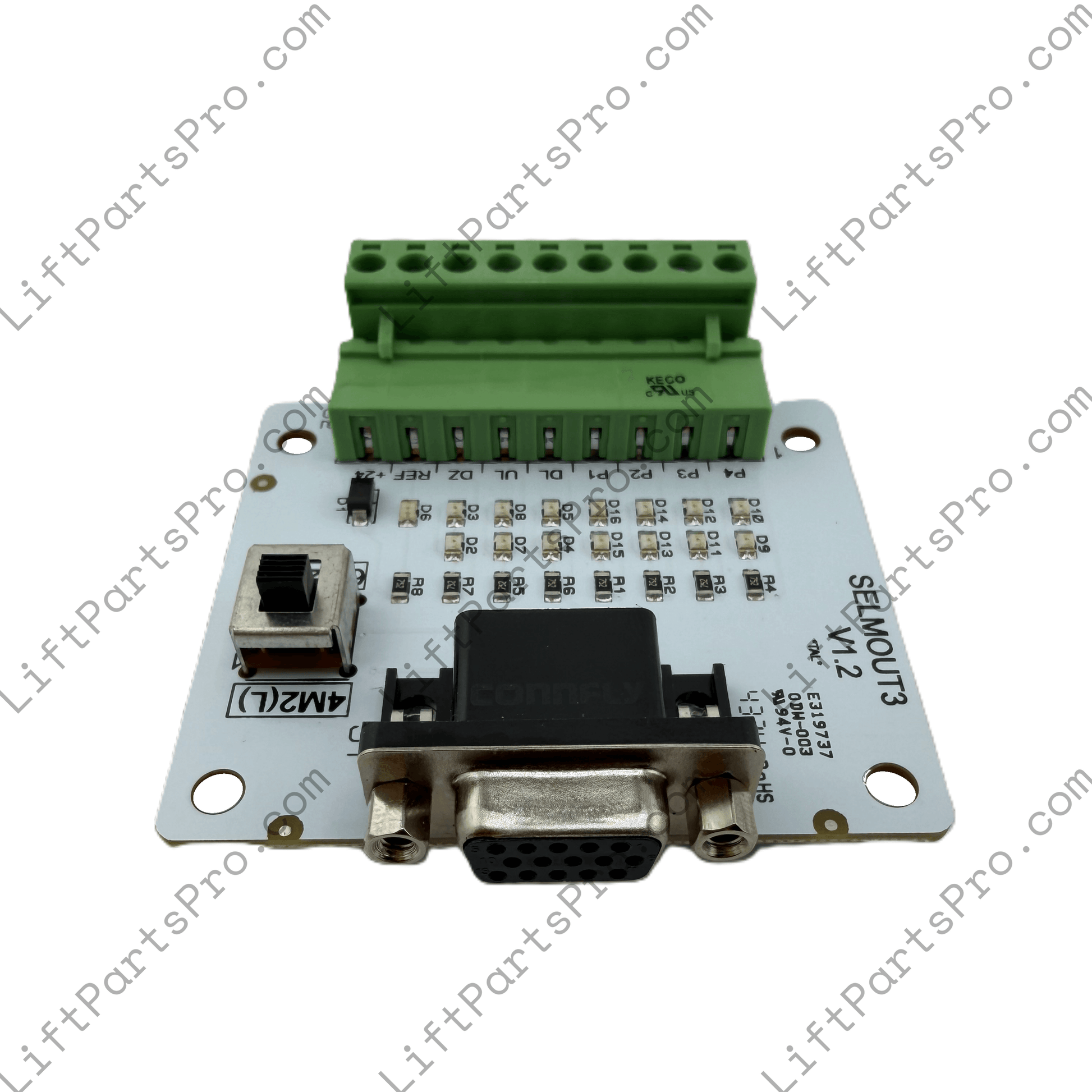

• Communication interface: 15-pin HD-15 connector for Super VGA communication cable
• Field wiring: Removable screw-terminal connector
• Configuration selections: 4M2(L) and 6M2(H)
• Mounting: Four-hole PCB mounting pattern
• Compliance marking: RoHS

Elevator control and selector components should be installed and verified by qualified elevator personnel in accordance with the applicable equipment documentation, system requirements, and local codes.
