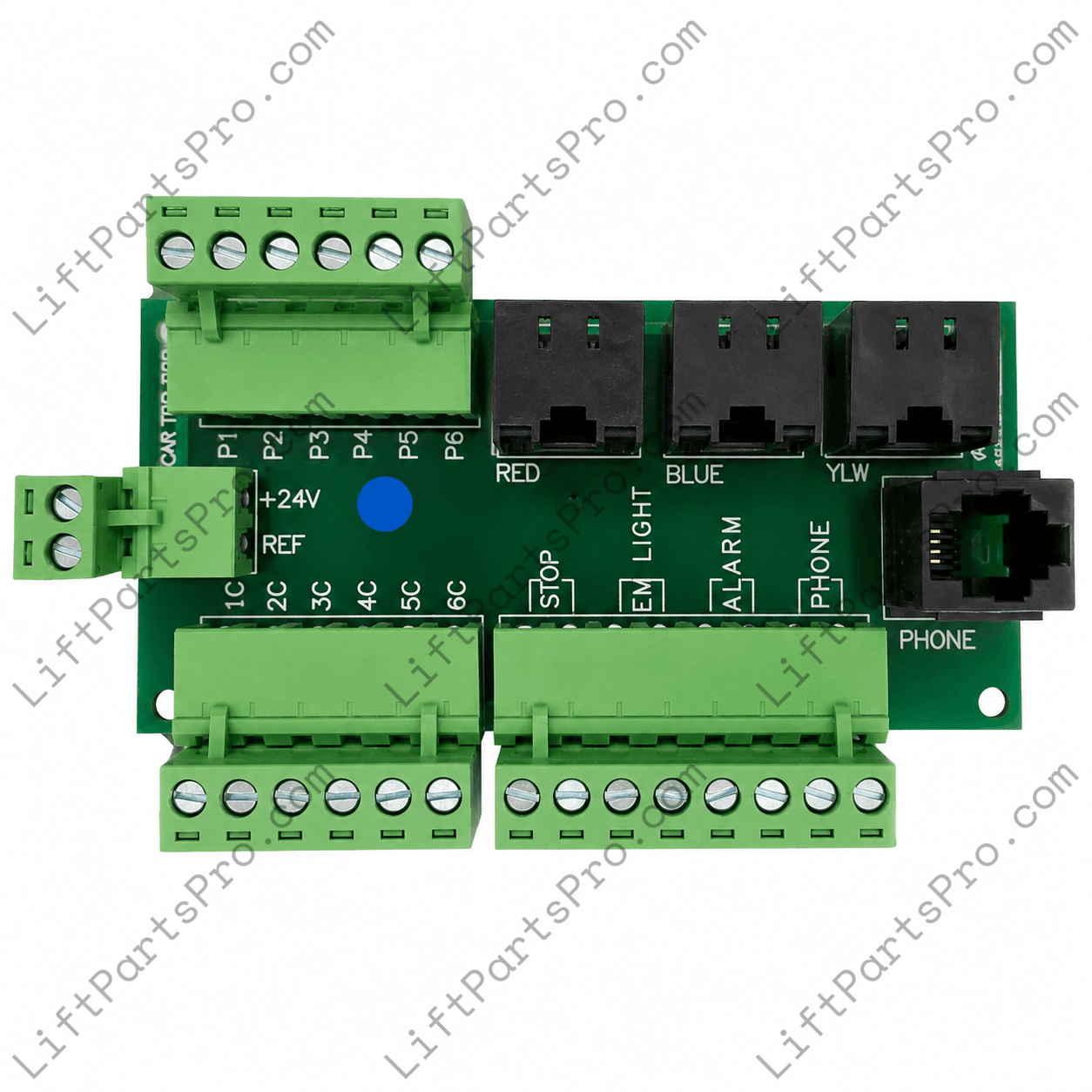

EMI Porta Elevator Car Top Cartop Cab Control Circuit Board

Mounted on the roof of the elevator cab, this printed circuit board functions as a local connection hub for equipment located on or within the car. Often referred to as a car top control board, cartop board, or cab control board, it provides connection points for car-related circuits while facilitating communication between those devices and the elevator’s primary control system.

Its centralized design accommodates multiple car functions through dedicated connections, including stop, emergency light, alarm, and phone circuits. The board also provides color-designated RED, BLUE, and YLW communication connections along with terminal connections for associated car circuits. It is suitable for legacy elevator modernization, retrofit applications, and new installations using compatible EMI Porta components without being specific to an elevator brand or model.

• Component type: Elevator car top printed circuit board
• Installation location: Roof/top of elevator cab
• Common terminology: Car top control board, cartop board, cab control board
• Supply/reference terminals: +24V and REF
• Dedicated connections: STOP, EM LIGHT, ALARM, and PHONE
• Communication connections: RED, BLUE, and YLW
• Car circuit terminals: 1C through 6C
• Additional terminals: P1 through P6
• Phone interface: Modular phone connection
• Connection style: Pluggable screw-terminal blocks and modular connectors

Elevator control electronics should be installed and commissioned by qualified elevator personnel in accordance with applicable codes, system requirements, and established industry practices. Proper installation and system compatibility should be verified as part of the elevator’s approved electrical configuration.
