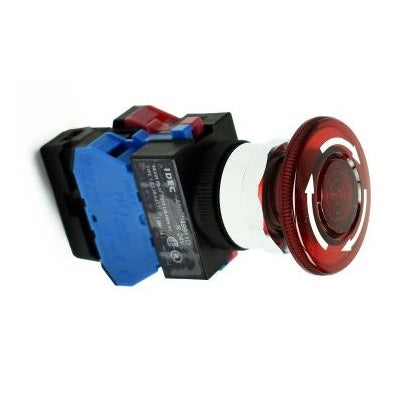

Emergency Stop Switch - Large Illuminated Head - NWOV, Porch-Lift, Etc.

Compatible with Various Accessibility Lift Systems

Found in National Wheel-O-Vator, Porch-Lift, and many other lifts with the industry-standard 22mm panel cutouts, this switch is suitable for a wide range of lift applications.

Key Features:

• Illuminated 40mm Mushroom Head: Provides clear visibility even in low-light conditions.
• 22mm Panel Cutout Design: Compatible with standard 22mm mounting holes for easy installation.
• 1 Normally Open (NO) and 1 Normally Closed (NC) Contact: Ensures reliable functionality with multiple circuit control options.
• 24V Illumination: Operates efficiently within low-voltage control systems.
• Durable and Reliable: Built to withstand frequent use in demanding environments.

Specifications:

• Cutout Size: 22mm
• Mushroom Head Diameter: 40mm
• Contact Configuration: 1 NO + 1 NC
• Illumination Voltage: 24V
• Operation Type: Push to engage, turn to release
• Max Voltage: 600 VAC, 600 VDC
• Current Rating: 10 A
• Bezel: Metal Round
• Lamp Type: LED
• Illumination Circuit: Full Voltage
• Nominal Lamp Voltage: 24 VAC, 24 VDC
• Lens/Button Shape: Mushroom
• Lens/Button Color: Red

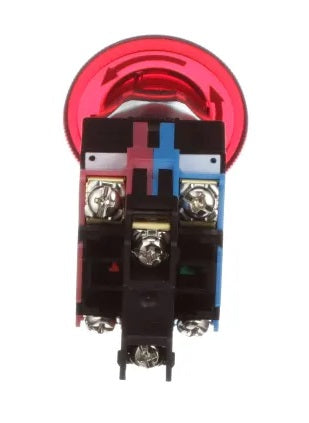

• Terminal Type: Screw
• Protection Rating: IP65 (dust and water resistant)
• Approvals: CE, CSA, UL
• Depth Behind Panel: 2.5"

This emergency stop switch is an essential safety component for lift systems, offering both high visibility and dependable performance.

Note: Ensure compatibility with your lift system before purchase. Installation should be performed by qualified personnel.
