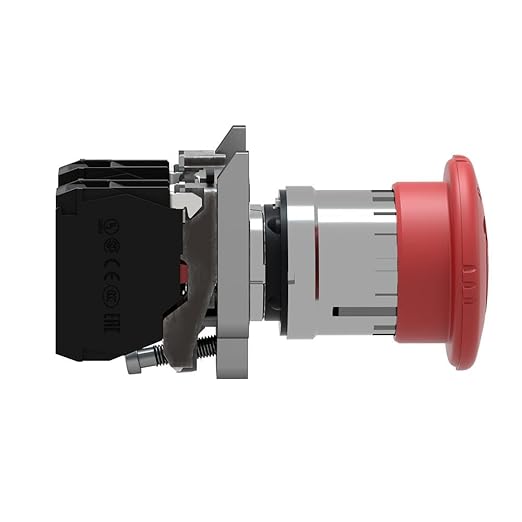

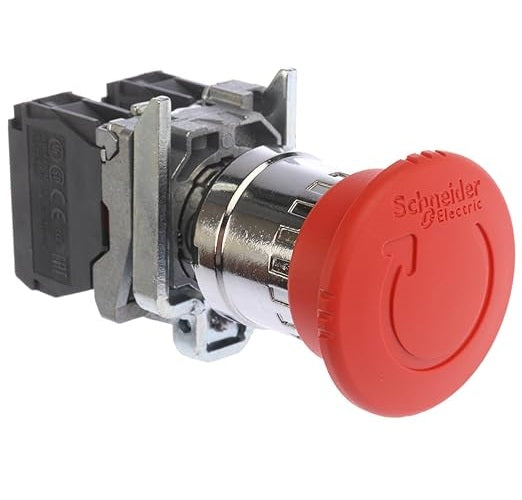

Emergency Stop Switch - Large Head - NWOV, Porch-Lift, Carrier-Lift, Etc.

Push Button Switch – Momentary, Normally Open (NO) & Normally Closed (NC) Contacts

Compatible with: National Wheel-O-Vator (NWOV), Porch-Lift (PLS), Carrier-Lift, and other units requiring the specifications below.

This high-quality push button switch is designed for reliable operation in lift systems, ensuring smooth activation when needed. Built with durability in mind, this switch features both Normally Open (NO) and Normally Closed (NC) contacts, making it a versatile choice for various applications.

Key Features:

• Twist-to-Reset – Engages when depressed, returning to default state upon twisting.

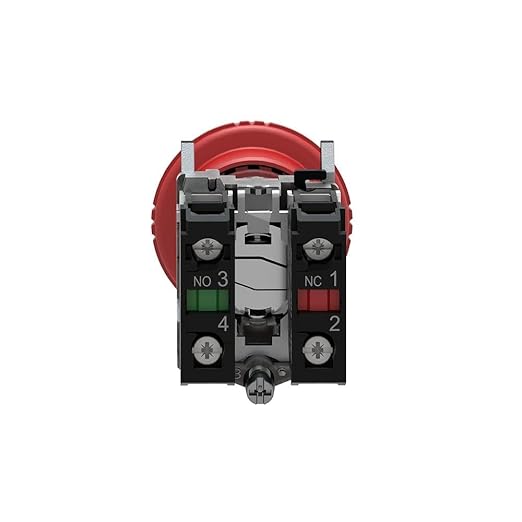

• Dual Contact Configuration – Includes both NO and NC contacts for flexible wiring options.
• Rugged Construction – Built to withstand frequent use in accessibility lift applications.
• Industry Standard Design – Used in multiple lift systems.

Specifications:

• Contact Type: Normally Open (NO) & Normally Closed (NC)
• Operation: Push to Stop. Twist to reset.
• Mounting: Panel-mounted for easy installation
• Head Type: Flush push button, spring return
• Head Diameter: 40mm
• Panel Cutout Size: 22mm diameter
• Material: Durable metal construction with plastic actuator
• Electrical Rating: 10A at 600V AC
• Ingress Protection: IP66 (dust-tight and water-resistant)
• Application: Suitable for lift control panels and other accessibility equipment
