This non-illuminated emergency stop assembly is built for long-term performance and safety in demanding environments. To ensure proper function and code compliance, installation should always be performed by a qualified technician.
1
/
of
5
Garaventa
Emergency Stop Switch for Garaventa Artira Inclined Platform Lifts
Emergency Stop Switch for Garaventa Artira Inclined Platform Lifts
Regular price
$120.17 USD
Regular price
$150.00 USD
Sale price
$120.17 USD
Unit price
/
per
Shipping calculated at checkout.
No reviews
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: ESS.GV.IPL
Condition: New
Couldn't load pickup availability

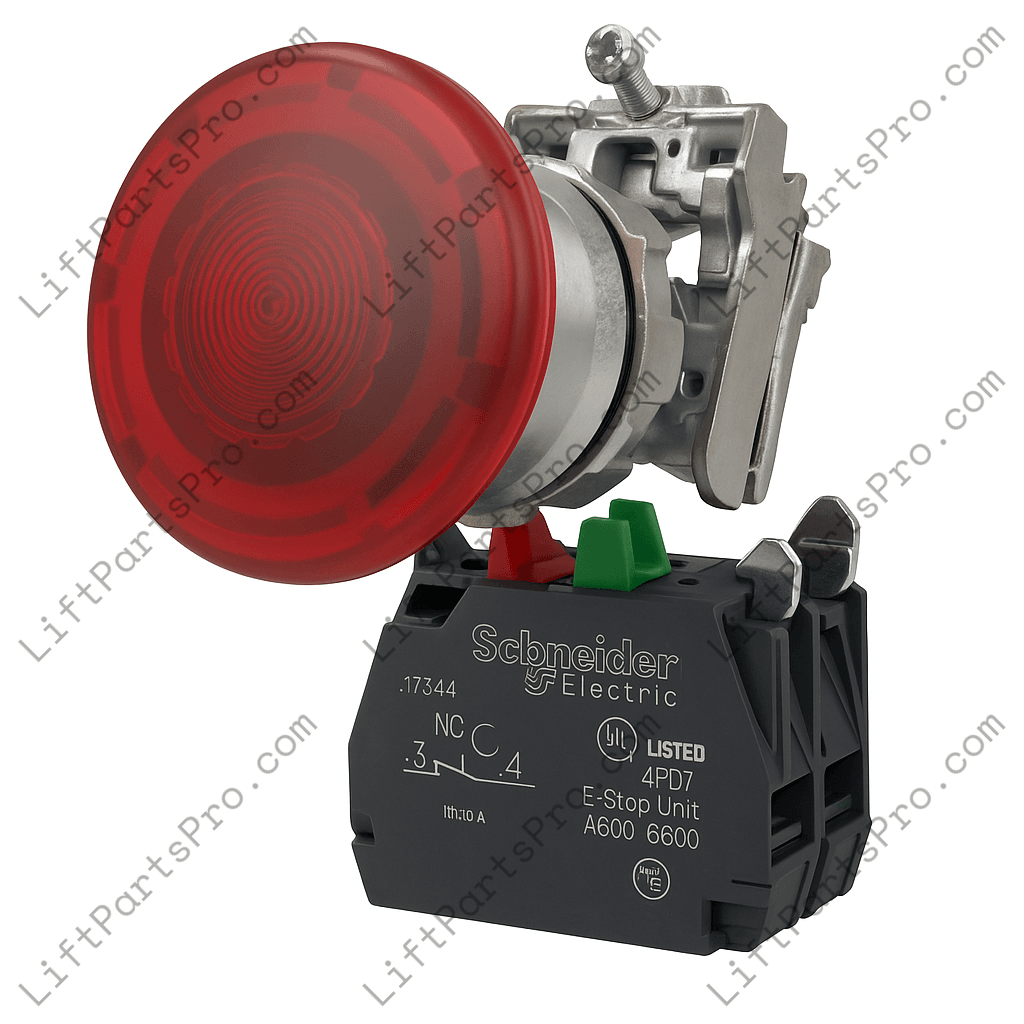

Heavy‑duty red push‑pull E-Stop switch, 22 mm panel‑mount, 1 NO + 1 NC contacts, compatible with Garaventa Artira IPLs (OEM #18309) and similar lifts.
This emergency stop (Estop) switch assembly offers a dependable, mechanical safety solution for lift systems. Designed with a red mushroom-style actuator and dual-contact configuration (1 normally open, 1 normally closed), it is widely used in Garaventa Artira Inclined Platform Lifts and other accessibility lifts requiring a manual emergency shutdown mechanism. This assembly is strictly non-illuminated, consistent with many original Artira configurations.
- Panel Cutout: 22 mm diameter mounting hole

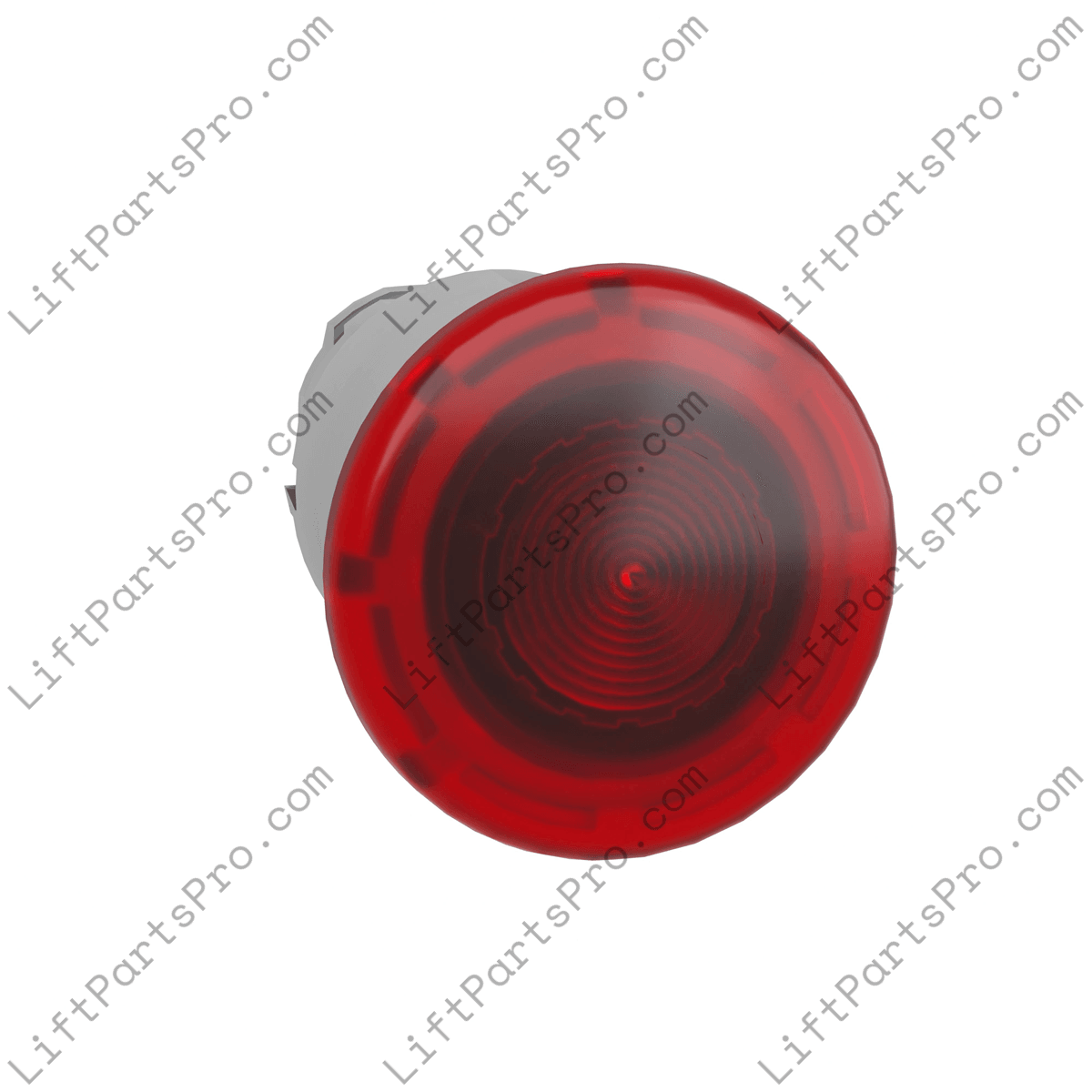

- Actuator Type: Red mushroom push‑pull, mechanical latching reset
- Bezel Material: Durable metal construction with chrome-plated finish

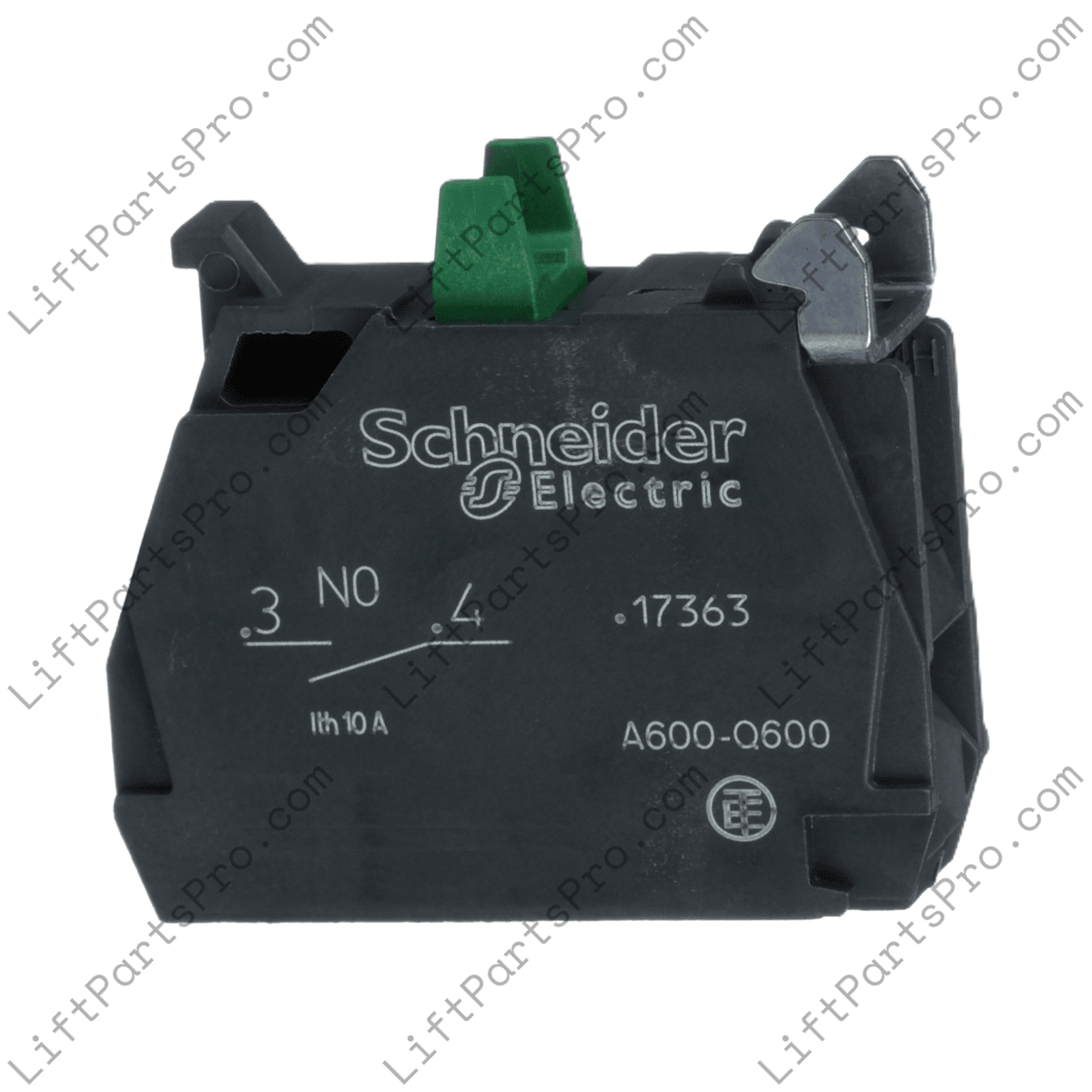

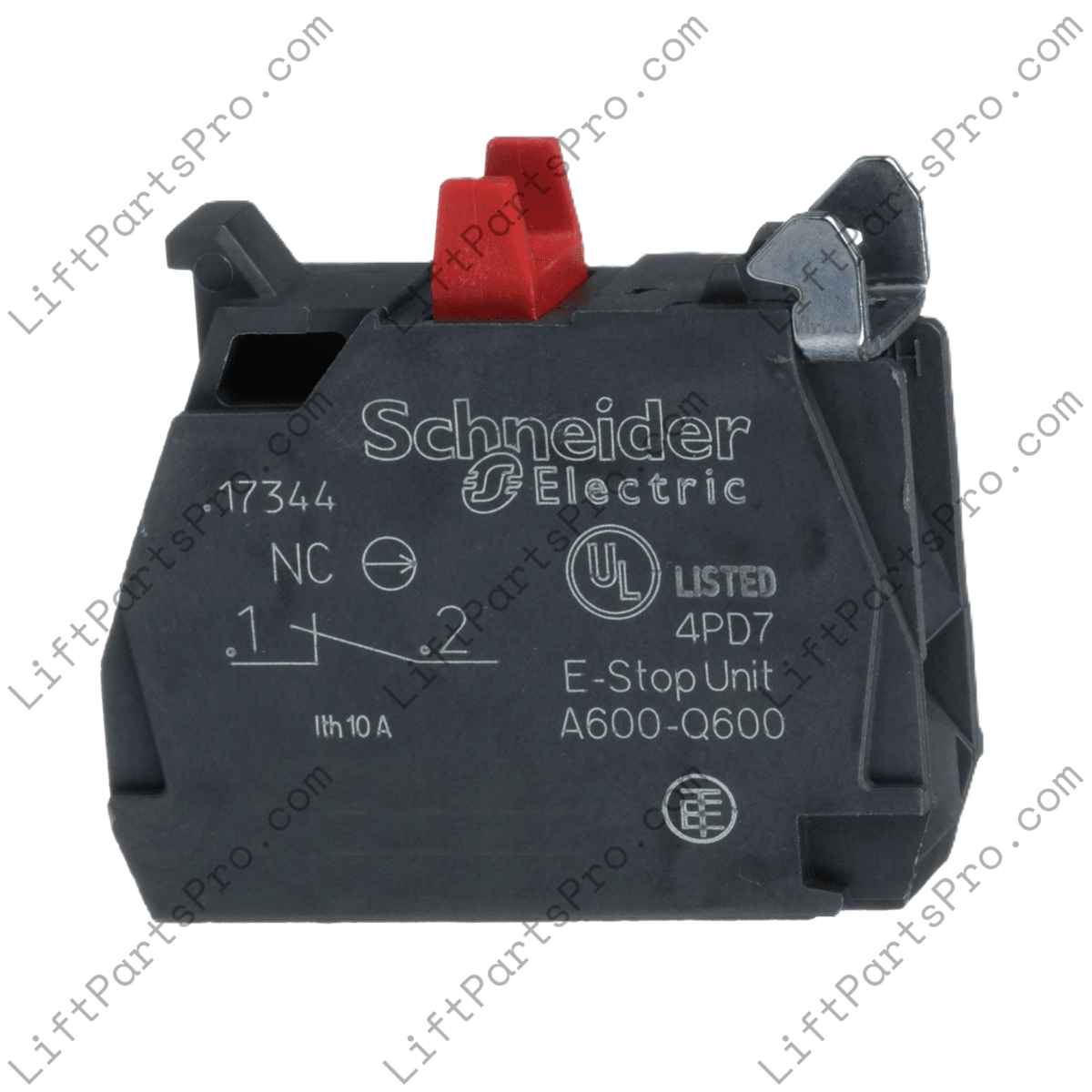

- Contact Configuration: Includes one NO and one NC contact block
- Terminal Type: Screw-clamp connections
- Operating Temperature: −25 °C to +70 °C
- Ingress Protection: Rated IP66 for resistance to dust and water
- Application: Suitable for Garaventa Artira IPLs and compatible lift systems
- Illumination: Non-illuminated design, no light module included
