Elevator Lift Rope Load Limit Sensor for 10–16 mm Wire Rope
Elevator Lift Rope Load Limit Sensor for 10–16 mm Wire Rope
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: SNS.LL.10
Condition: New
Couldn't load pickup availability

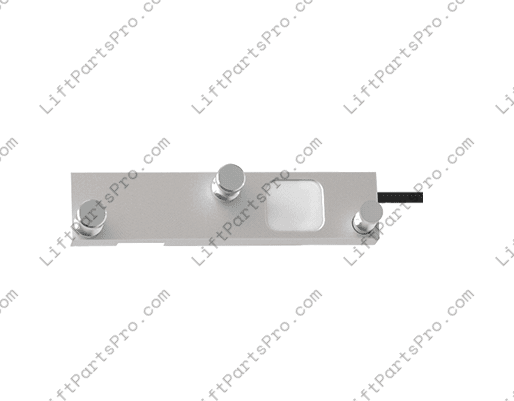

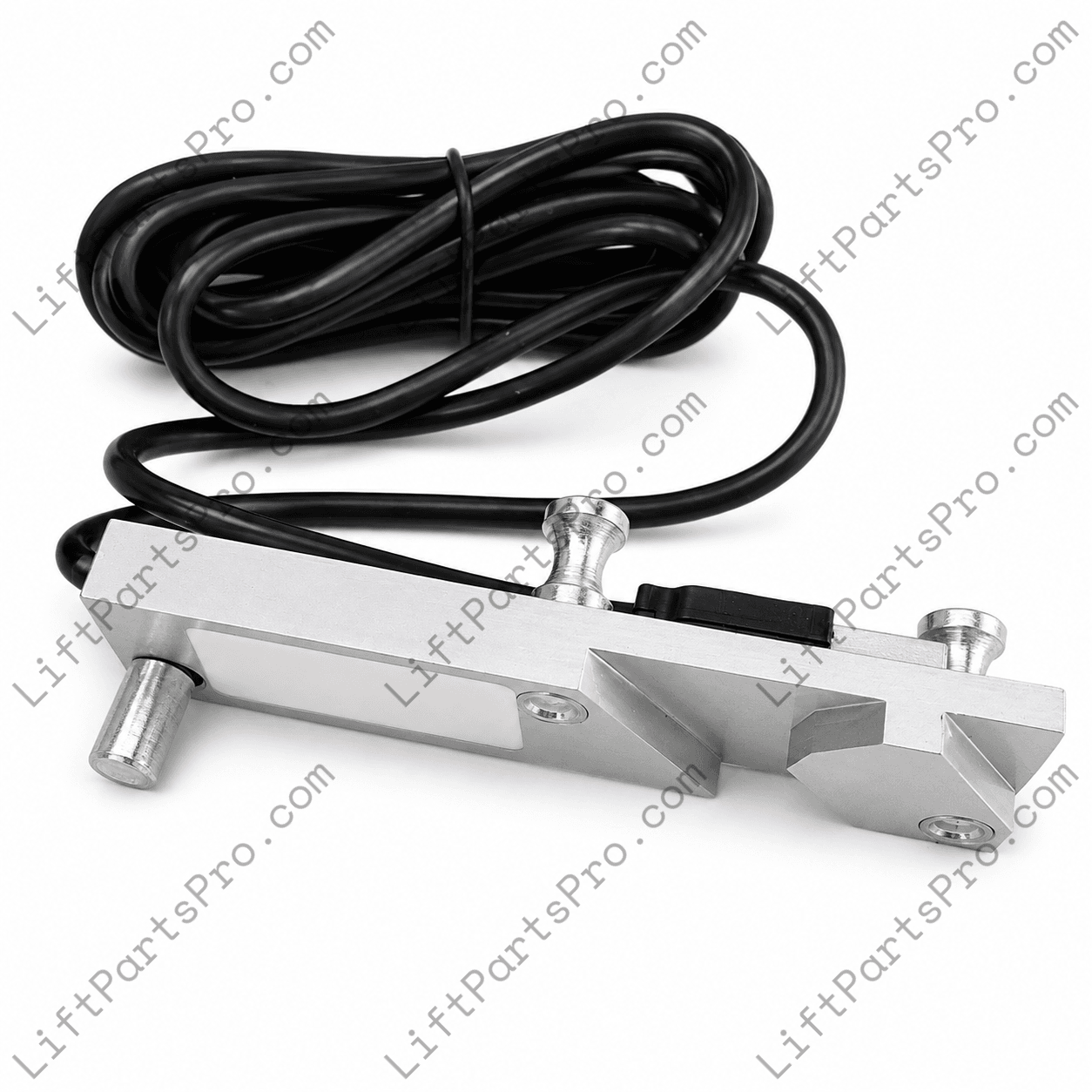

Elevator lift rope load limit sensors are designed to measure the load supported on individual suspension ropes in elevator and lifting applications. Available in three rope diameter variants, these sensors provide accurate load measurement while allowing installation on existing systems without requiring extensive modifications. There is no known legacy equivalent for these sensors, although they can serve as a suitable replacement for compatible CANRTM LOADWEIGHER sensors with matching specifications.

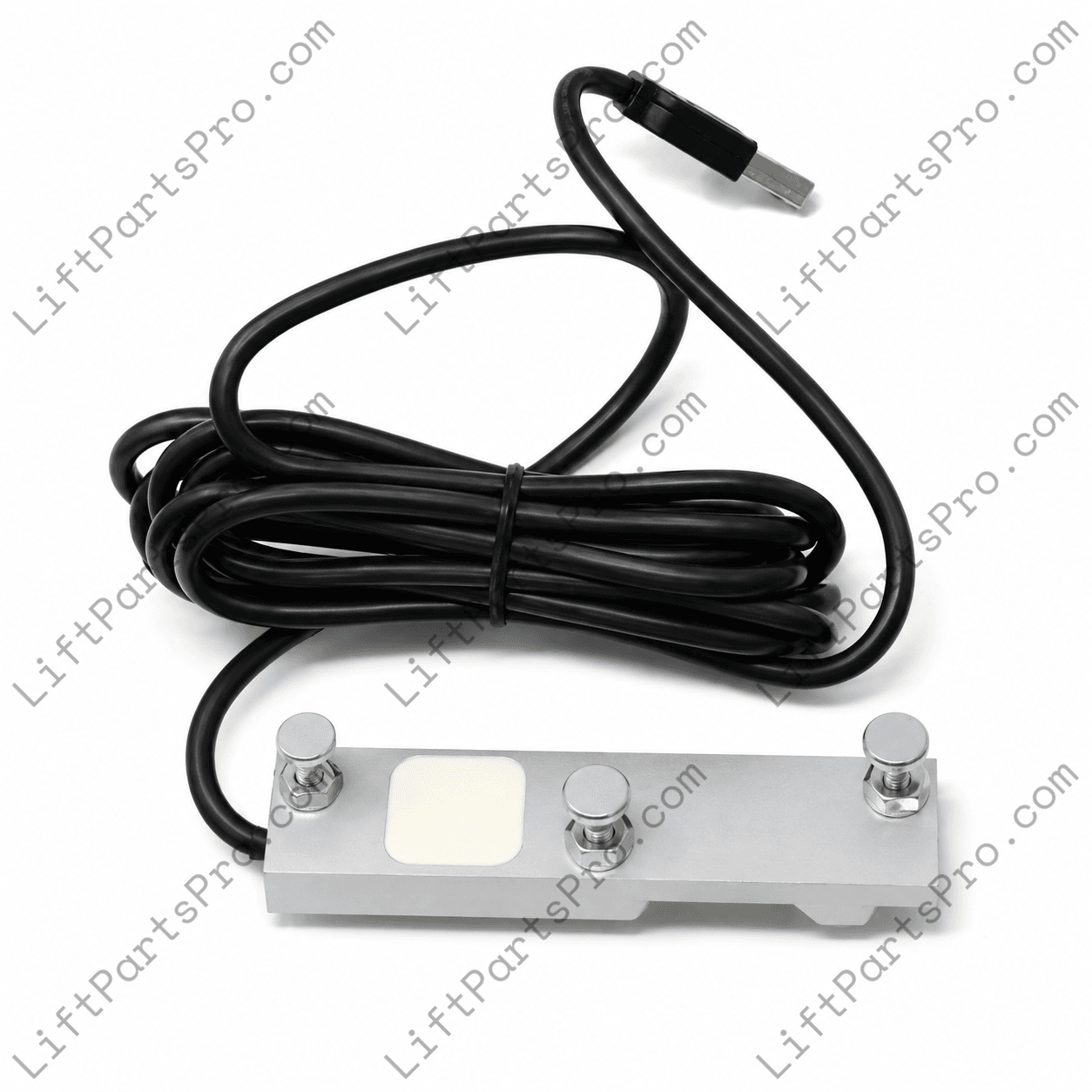

Each sensor is manufactured from anodized aluminum and features an IP65-rated enclosure for dependable performance in demanding elevator environments. The integrated USB connector supports connection to compatible load weighing and monitoring systems, allowing individual sensor data to be collected as part of a complete load measurement solution. Designed for fast installation using standard tools, these sensors are suitable for modernization projects as well as new equipment installations.
Available Variants
- 10 mm (3/8") Rope Diameter
- 13 mm (1/2") Rope Diameter
- 16 mm (5/8") Rope Diameter
Specifications
- Individual elevator lift rope load limit sensor
- Available rope diameter variants:
- 10 mm (3/8")
- 13 mm (1/2")
- 16 mm (5/8")
- Compatible nominal load ranges:
- 10 mm: 300, 450, or 650 kg (661, 992, or 1,433 lb)
- 13 mm: 550, 800, or 1,050 kg (1,213, 1,764, or 2,315 lb)
- 16 mm: 1,000 or 1,250 kg (2,205 or 2,756 lb)
- Nominal sensitivity: 1.3–2.0 mV/V
- Accuracy: 0.25%
- Zero balance: ±0.20 mV/V
- Maximum excitation voltage: 12 V
- Minimum distance to connector: 25 m (82 ft)
- Compensated temperature range: -10°C to 40°C (14°F to 104°F)
- Operating temperature range: -20°C to 60°C (-4°F to 140°F)
- Storage temperature range: -20°C to 70°C (-4°F to 158°F)
- Minimum insulation resistance: 4 GΩ
- Input resistance: 350–400 Ω or 1000–1100 Ω
- Output resistance: 350 ±1.5 Ω or 1000 ±3 Ω
- Safe load limit: 120% of nominal load
- Load without permanent characteristic loss: 150% of nominal load
- Cable: 4 × 0.14 mm² polyurethane cable, Ø4.3 mm
- Standard cable length: 2 m (6.6 ft)
- Connector: USB
- Sensor material: Anodized aluminum
- Protection rating: IP65

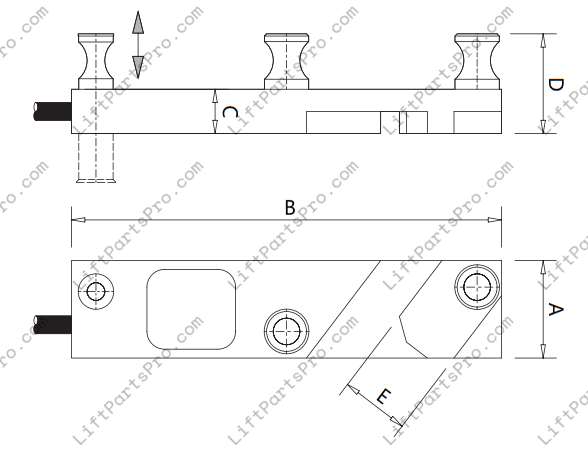

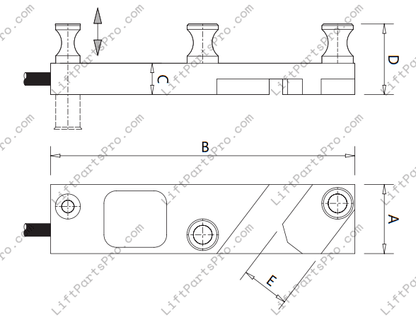

Variant Dimensions
| Variant | A | B | C | D | E |
|---|---|---|---|---|---|
| 10 mm (3/8") | 22 mm (0.87") | 97 mm (3.82") | 10 mm (0.39") | 22.5 mm (0.89") | 15.5 mm (0.61") |
| 13 mm (1/2") | 24 mm (0.94") | 107 mm (4.21") | 10 mm (0.47") | 25 mm (0.98") | 17.5 mm (0.69") |
| 16 mm (5/8") | 28 mm (1.10") | 130 mm (5.12") | 12 mm (0.47") | 30.5 mm (1.20") | — |
Proper load sensing is an important component of elevator system performance. For reliable operation and continued compliance with applicable codes and manufacturer requirements, this component should be installed and inspected by qualified elevator personnel using appropriate procedures and compatible equipment.
