Elevator Lift Key Switch - Chicago H2395 #2395

This universal lift key switch is engineered for seamless integration across a wide range of elevator and vertical platform lift (VPL) brands.
Featuring the widely recognized Chicago key code H2395 (2395), it ensures consistent and reliable operation for various lift systems.

The switch operates with a single pole, single throw (SPST) mechanism, supporting up to 7 amps at 28 VDC or 115 VAC.
Its double-bitted assembly with eleven criss-cross blade tumblers enhances security, while the bright chrome finish offers a sleek appearance. The maintained contact options allow the key to be removed in both the 'Off' (12 o'clock) and 'On' (3 o'clock) positions, or only in the OFF position, providing flexibility during maintenance and operation.

The spring-reset configuration allows for momentary activation with spring-loaded return to the 12 o'clock, circuit-open position.

Specifications:

• Contact Configuration: Single Pole, Single Throw (SPST)
• Electrical Rating: 7 Amps @ 115 VAC; 7 Amps @ 28 VDC
• Key Code: H2395 (2395). Includes two keys.
• Operation: 90-degree clockwise rotation; maintained. Choose between one pull or two pull (Removeable in the OFF position or in the ON and OFF positions), or Momentary Spring-reset.
• Finish: Bright Nickel

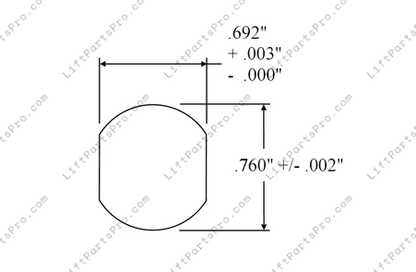

• Mounting Hole Dimensions: Double D, 0.692" x 0.760"
• Terminals: Screw type

This key switch is an ideal replacement or upgrade for enhancing the security and functionality of your lift system.
